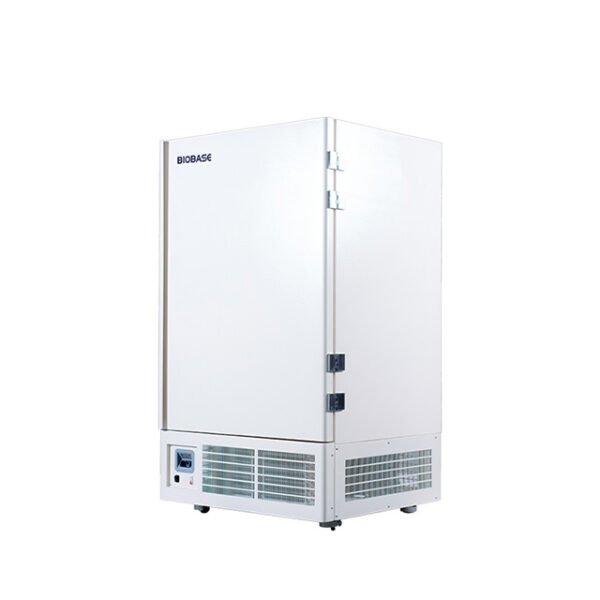

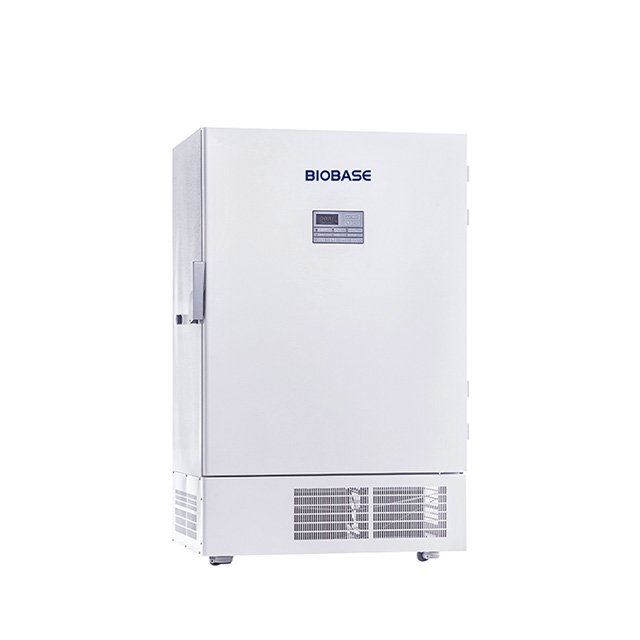

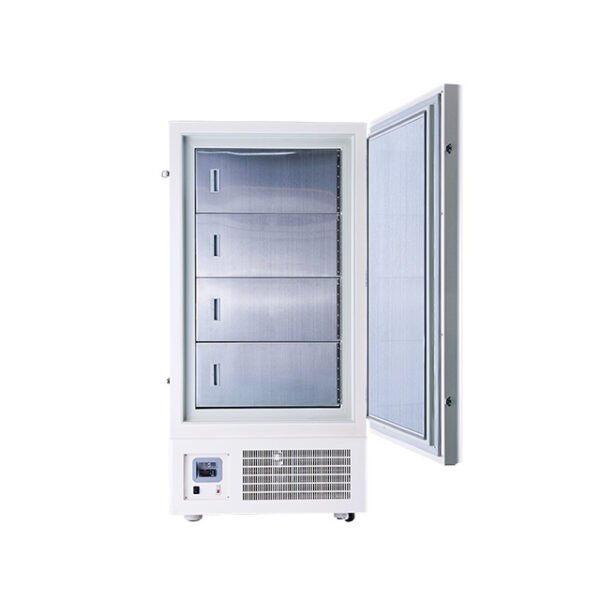

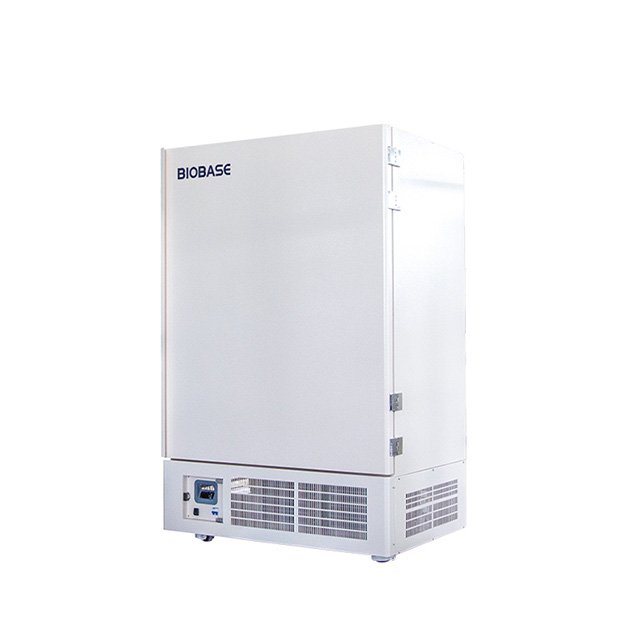

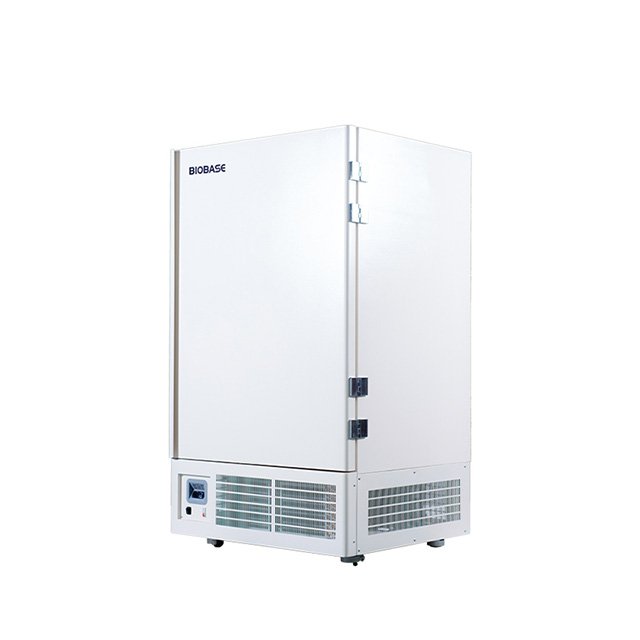

-40°C Freezer BDF-40V608 BDF 40V708 BDF 40V808 BDF- 40V936
Model
| Model | BDF-40V608 | BDF-40V708 | BDF-40V808 | BDF-40V936 |
| External Size(W*D*H)mm Internal Size(W’D*H) mm Capacity |
940*980*1920
700*680*1255 598L |
1090*1000*1920
850*680*1255 708L |
1090*1010*2025
850*735*1335 808L |
1304*1000*2017
1000*700*1335 936L |
| Type | Vertical | |||
| Temp.Range | -15℃~-40℃ | -25℃~-40℃ | ||
| Temp.Accuracy Control System |
0.1℃℃ Microprocessor control,LED Digital Display |
|||
| Audible and Visual Alarm | High and low temperature alarm,sensor failure alarm. (BDF-40V608,BDF-40V708,BDF-40V808) High and low temperature alarm, sensor failure alarm,thermostat failure alarm, power failure alarm, door open alarm, ambient temperature alarm, condenser failure alarm, filter inspection alarm, abnormal voltage alarm, low battery alarm. (BDF-40V936) |
|||
| Alarm Method Refrigeration Type |
Sound beeps and lights flash Direct refrigeration |
|||
| Refrigerant | R404A and R23 | R404A | ||
| Foam Layer Thickness Construction Internal Material External Material |
120mm | 150mm | ||
| 304 stainless steel Sprayed steel plate |
||||
| Consumption | 1000w | |||
| Power Supply | AC110V/220V±10%,50/60Hz | |||
| Package Size (W’D*H)mm | 1025*1050*2090 | 1220*1080*2070 | 1175*1075*2180 | 1360*1135*2170 |
| Gross Weight | 315kg | 350kg | 365kg | 416kg |
