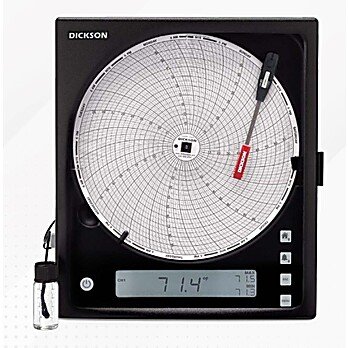

8” (203mm) chart recorders offer the largest resolution out of any chart recorders. All chart recorders feature a large 8” chart and user-selectable recording time-frames and ranges. These units are compatible with Dickson’s Replaceable SensorsTM, making calibrating your chart recorder easier than ever.
Temperature Accuracy: ±0.9°F from -58°F to 68°F (0.5°C from -50°C to 20°C), ±1.2°F from 69°F to 122°F, ±2°F over remaining range
Temperature Range: -58°F to 158°F (-50°C to 70°C)
| Thomas No | Mfr No | Description |
|---|---|---|
| 23A00D126 | KT8-20*NoCal | KT8-20 8″ (203mm) Temperature Chart Recorder, with Display, 1x Thermistor and Audible Alarms |
| 23A00D127 | KT8-21*NoCal | KT8-21 8″ (203mm) Temperature Chart Recorder, with Display, 2x Thermistor and Audible Alarms |
| 23A00D128 | KT8-30*NoCal | KT8-30 8″ (203mm) Temperature Chart Recorder, with Display, 1x KTC and Audible Alarms |
| 23A00D129 | KT8-30R*NoCal | KT8-30R 8″ (203mm) Temperature Chart Recorder, with Display, 1x KTC, Audible Alarms and Relays |
| 23A00D130 | KT8-31R*NoCal | KT8-31R 8″ (203mm) Temperature Chart Recorder, with Display, 2x KTC, Audible Alarms and Relays |
| 23A00D131 | KT8-40*NoCal | KT8-40 8″ (203mm) Temperature Chart Recorder, with Display, 1x RTD and Audible Alarms |
| 23A00D132 | KT8-50*NoCal | KT8-50 8″ (203mm) Temperature Chart Recorder, with Display and Audible Alarms |
