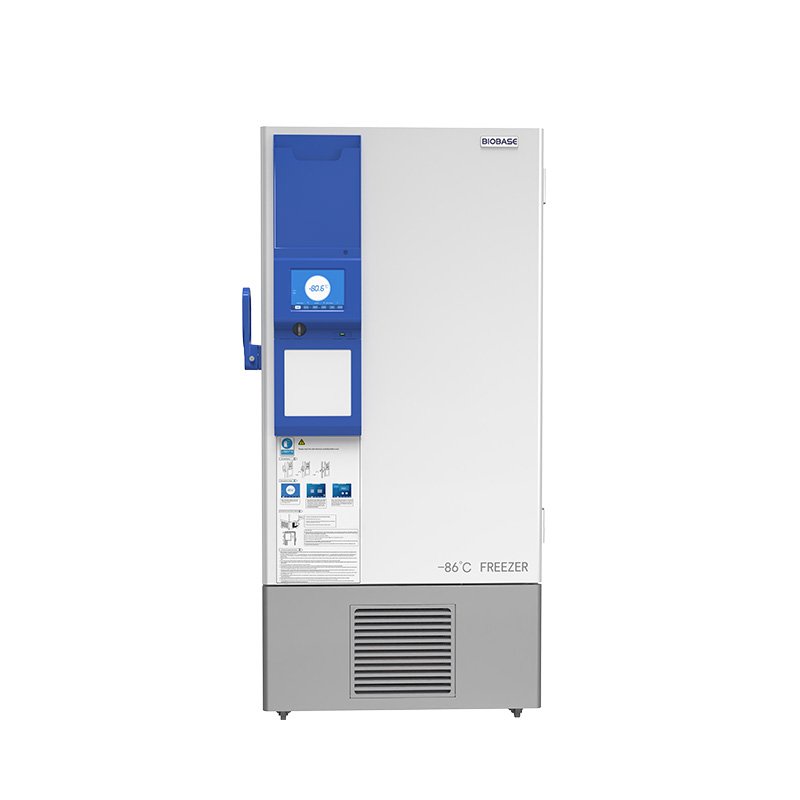

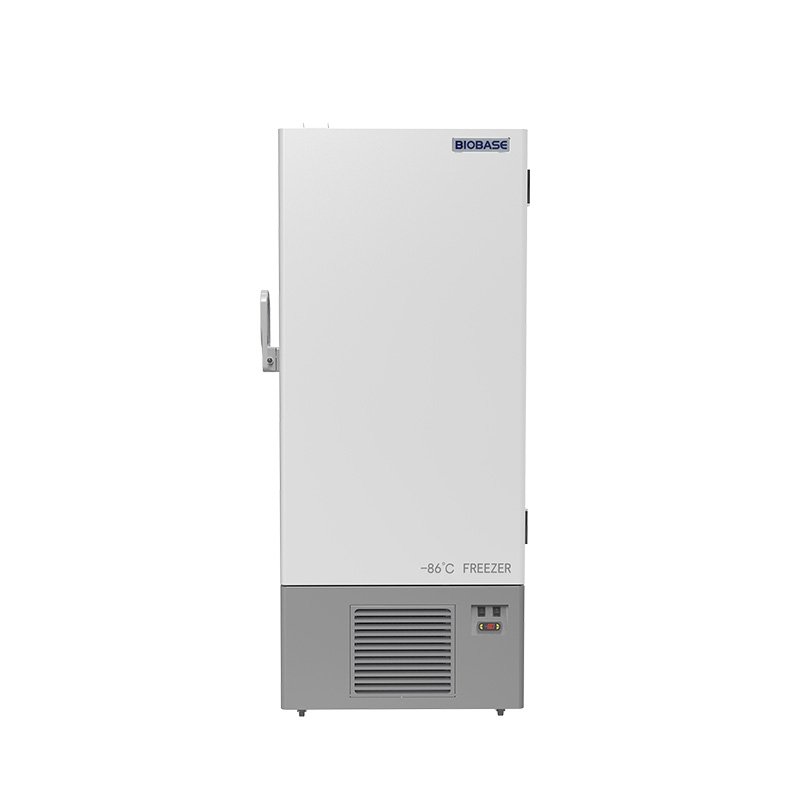

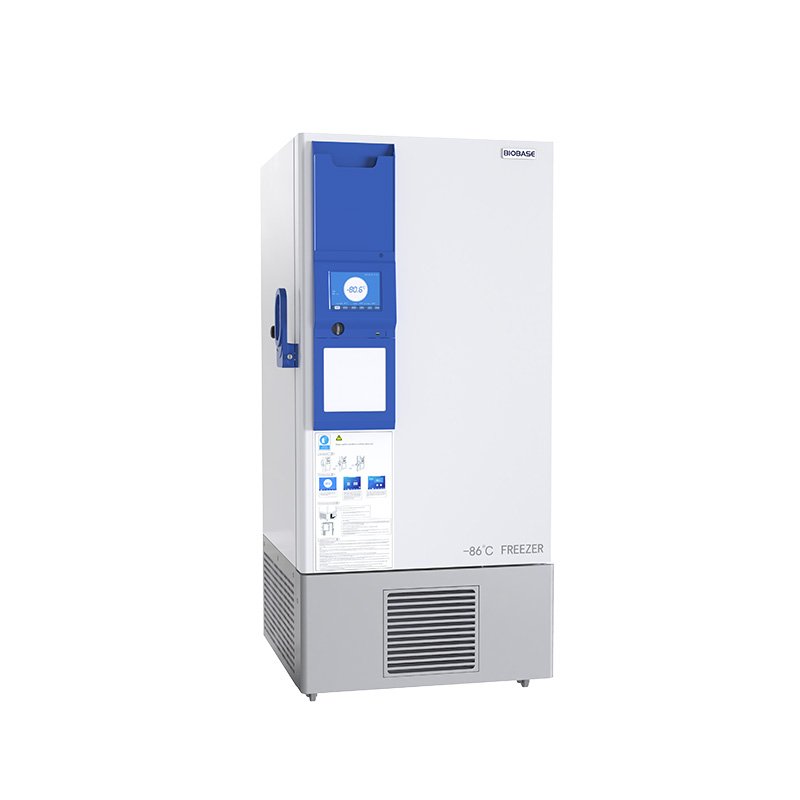

-86°C Freezer BDF-86V168T BDF-86V348T
Technical Parameters
| Model | BDF-86V168T | BDF-86V348T | ||||
| External Size(W*D*H) mm Internal Size(W*D*H) mm Capacity |
844*807*1594mm
465*455*820mm |
869*989*1924mm 490*612*1150mm 348L |
||||
| Type
Temp. Range |
Vertical
40°℃~-86℃ |
|||||
| Audible and Visual Alarm | High and low temperature alarm, sensor fault alarm, power alarm, open and close abnormal
alarm function |
|||||
| Alarm Method | Sound beeps and lights flash, remote alarm(optional) | |||||
| Refrigeration Type | Auto- cascade refrigeration system | Double machine cascade refrigeration system | ||||
| Refrigerant
Compressor |
R290 and R170 2 sets Made of copper |
|||||
| Construction | Foam Layer Thickness
Internal Material |
189mm
304 stainless steel |
||||
| Door Caster |
Lockable door
4 casters |
|||||
| Chamber with Inner Door | 3 | 2 | ||||
| Shelf | 2pcs | 3pcs | ||||
| Temp. Test Port | 1,φ30mm | |||||
| Consumption | 830W | 915W | ||||
| Power Supply | Standard: 220V 50Hz Optional: 220V 60Hz, 110V,60Hz |
|||||
| Package Size (W*D*H)mm
Gross Weight |
1000*970*1790 253kg |
1020*1180*2130 332kg |
||||
