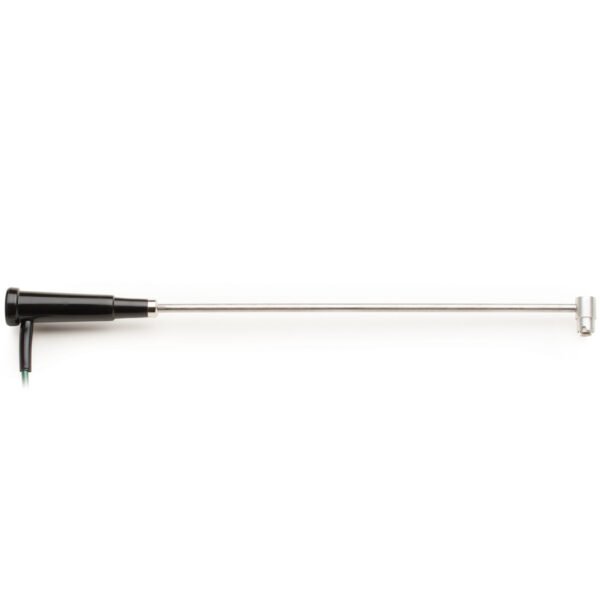

The 90° Angle Surface K-Type Thermocouple Probe with Handle – HI766B1 is designed to measure the temperature of hard to reach surfaces. The response time of a measurement is affected by the position of the sensor relative to the surface being measured. The HI766B1 surface construction offers a speedy 8-second response for a temperature reading. With a strong, corrosion-resistant, stainless steel construction, this probe is able to measure surfaces up to 450°C (840°F).
| Specification Name | Detail |
|---|---|
| SKU | HI766B1 |
| Recommended Operating Temperature | 450°C (840°F) |
| Response Time (90% of final value) | 8 seconds |
| Body Length | L 300 mm x dia 30 mm (11.8″ x 1.2″) |
| Temperature Sensor | yes |
| Body Material | stainless steel |
| Cable | polyurethane (PUR)/coiled; 1 m (3.3′) |
| Recommended Use | hard to reach surfaces |
| Connection | K-Type |
