Flat tip ORP electrode
Virtually eliminates deposits that can foul the electrode, significantly reducing necessary maintenance.
Gold sensor
Required for measurement of cyanide or highly oxidative environments.
PVDF body
PVDF offers characterized by high thermal stability and excellent chemical resistance.
BNC connector
Allows for quick and easy connection to any pH/ORP meter or transmitter.
PTFE junction
The electrode has a unique clog resistant junction that enhances both probe life and accuracy.
Double junction technology with gel polymer filling
Ensure long electrode life and reliability in harsh environments.
| Specification Name | Detail |
|---|---|

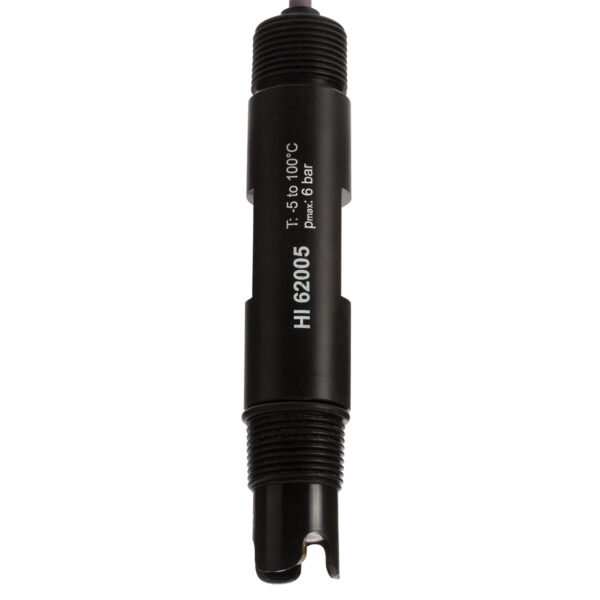

| SKU | HI6200505 |
| Range | ORP: 2000 mV |
| Tip Shape | Flat, gold |
| Body | PVDF |
| Junction | Double, PTFE |
| Glass Type | (-5 to 100°C) |
| Electrolyte | Polymer |
| Matching Pin | Yes |
| Amplifier | No |
| Temperature Sensor | No |
| Max Pressure | 6 bar (87 psi) |
| Connector | BNC |
| Cable | 5m |
| Warranty | 6 months |
