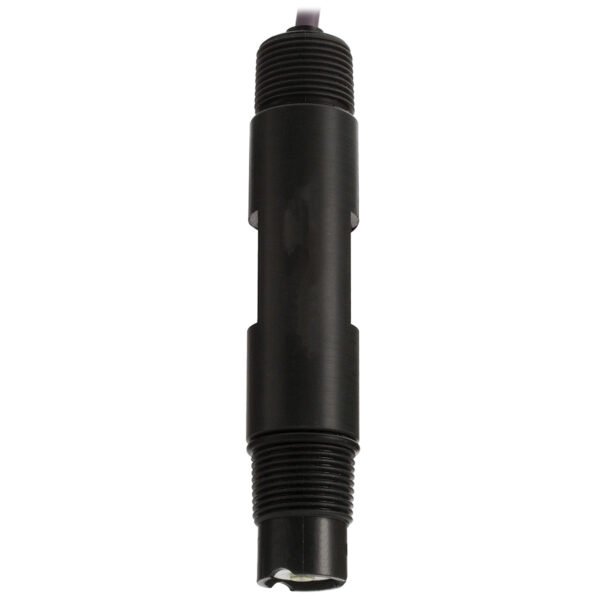

Flat tipped pH electrode
Virtually eliminates deposits that can foul the electrode, significantly reducing necessary maintenance.
PTFE junction
The electrode has a unique clog resistant junction that enhances both probe life and accuracy.
PVDF body
PVDF offers characterized by high thermal stability and excellent chemical resistance.
BNC + lead connector
Allows for quick and easy connection to any pH/ORP meter or transmitter.
Hydrofluoric resistant glass formulation
HF resistant glass is designed for use in aggressive applications that have fluoride ions for extended life.
Built-in Pt100 temperature sensor
Ensures fast, accurately compensated readings even during sudden temperature fluctuations.
| Specification Name | Detail |
|---|---|
| SKU | HI6101205 |
| Range | pH: 0-10 |
| Tip Shape | Flat |
| Body | PVDF |
| Junction | Double, PTFE |
| Glass Type | HF (-5 to 60°C) |
| Electrolyte | Polymer |
| Matching Pin | Yes |
| Amplifier | No |
| Temperature Sensor | Yes |
| Temperature Sensor Type | Pt100 |
| Max Pressure | 6 bar (87 psi) |
| Connector | BNC + lead |
| Cable | 5m |
| Warranty | 6 months |
