Description

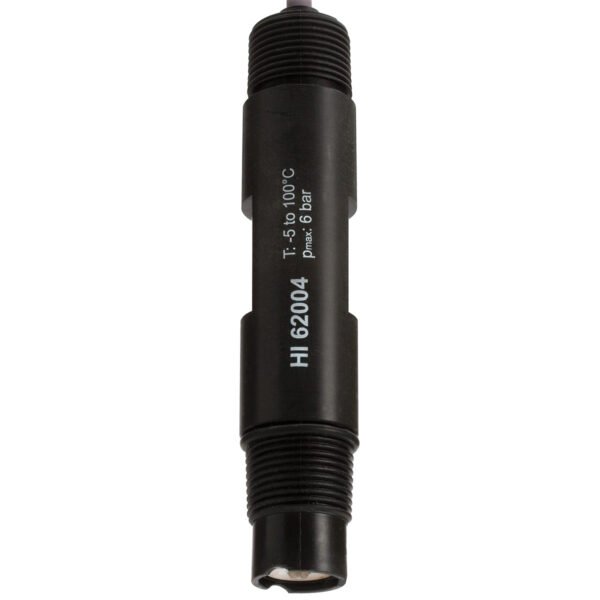

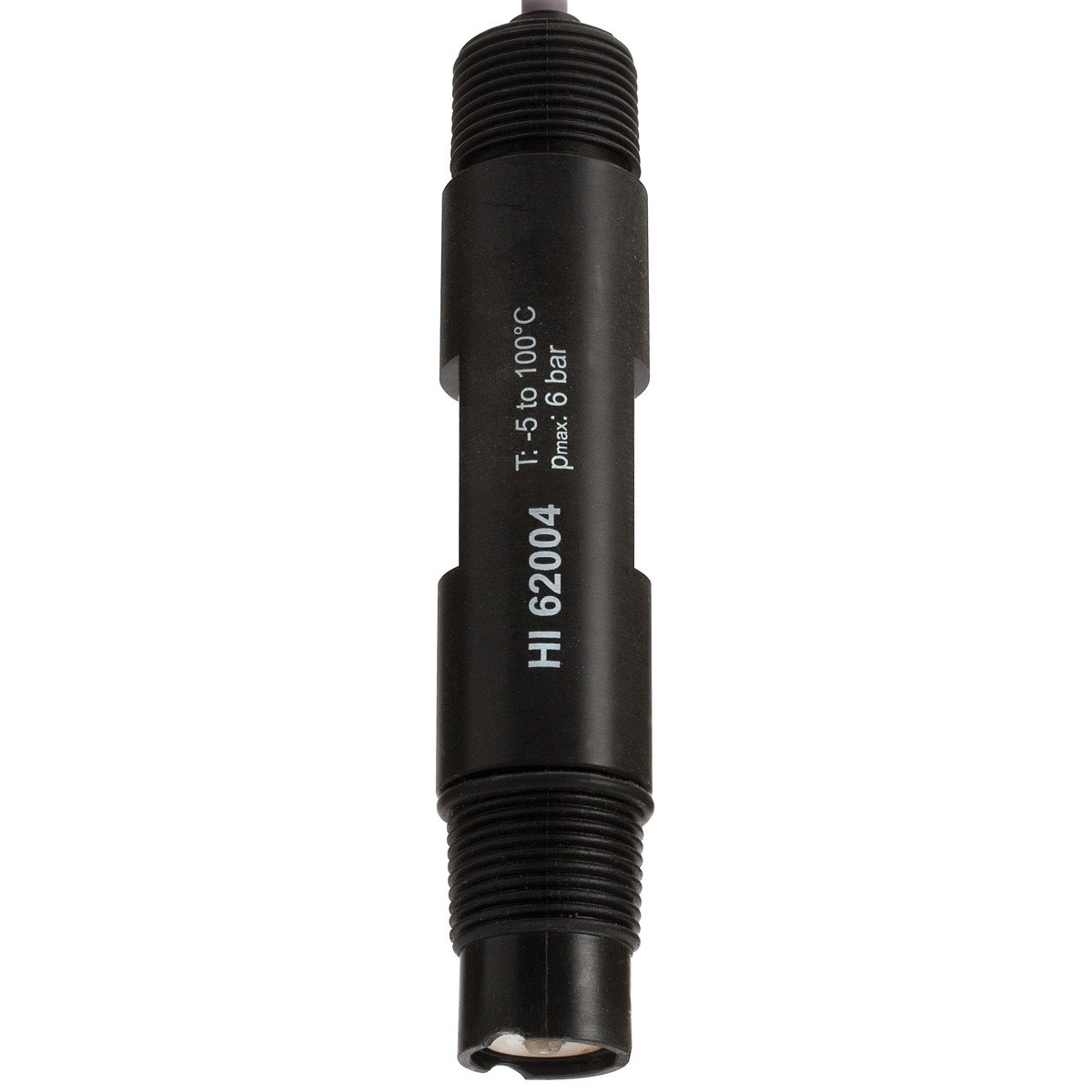

Flat tip ORP electrode
Virtually eliminates deposits that can foul the electrode, significantly reducing necessary maintenance.
Platinum sensor
Provides the best response over a wide range of applications.
PVDF body
PVDF offers characterized by high thermal stability and excellent chemical resistance.
BNC connector
Allows for quick and easy connection to any pH/ORP meter or transmitter.
PTFE junction
The electrode has a unique clog resistant junction that enhances both probe life and accuracy.
Double junction technology with gel polymer filling
Ensure long electrode life and reliability in harsh environments.
| Specification Name | Detail |
|---|---|
| SKU | HI6200405 |
| Range | ORP: 2000 mV |
| Tip Shape | Flat, platinum |
| Body | PVDF |
| Junction | Double, PTFE |
| Glass Type | (-5 to 100°C) |
| Electrolyte | Polymer |
| Matching Pin | Yes |
| Amplifier | No |
| Temperature Sensor | No |
| Max Pressure | 6 bar (87 psi) |
| Connector | BNC |
| Cable | 5m |
| Warranty | 6 months |
