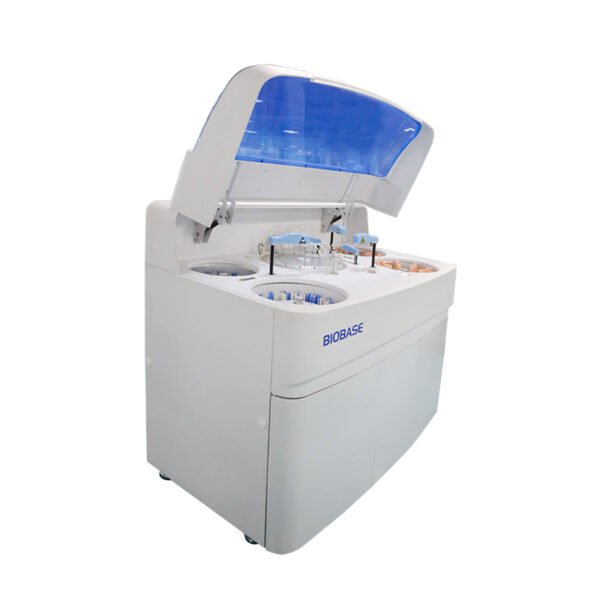

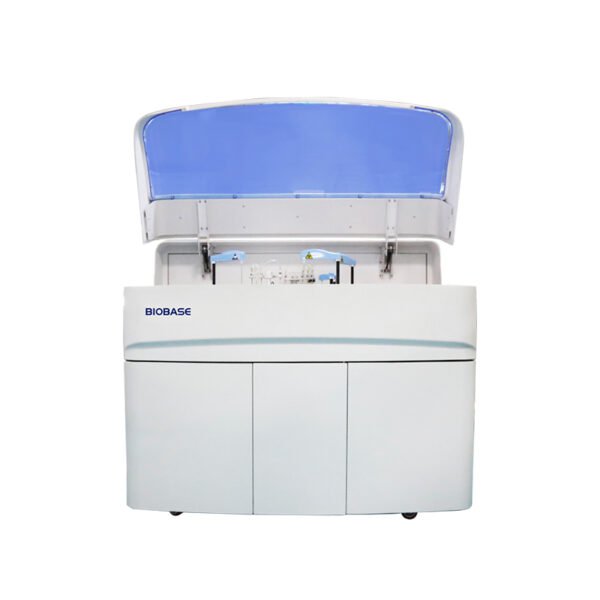

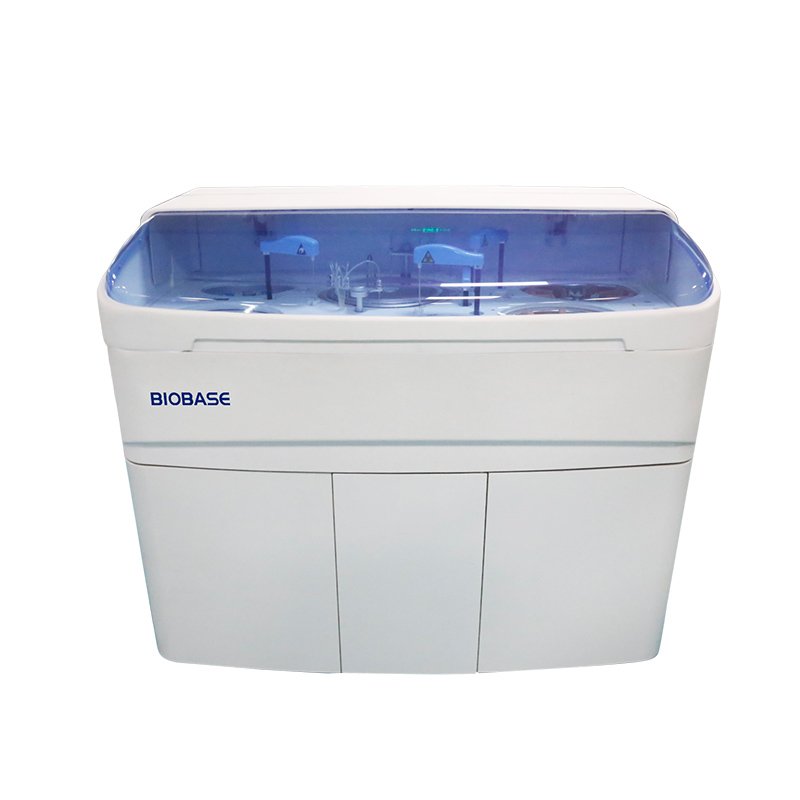

Auto Chemistry Analyzer BK-1200
Models:
| Model | BK-1200 | |
| Overall | Throughput | 800Tests/hour, 1200Tests/hour with ISE(Optional) |
| Performance | Analysis Method | End-point, Fixed-time, Rate(Kinetic), Turbidimetry |
| Certificates | CE, FDA, ISO9001, ISO14001, ISO13485 | |
| Sample & Reagent System | Sample Positions | 150sample positions |
| Reagent Position | 180reagent positions | |
| Sample Volume | 1-70μL | |
| Reagent Volume | 10-350μL | |
| Probe | Teflon coating,withanti-collision function,Liquid level detectionfunction | |
| Probe Washing | Automatic washing interior and exterior | |
| Reagent Cooling | Refrigerated tray with independent switch | |
| Reaction System | Temperature Control | Water bath37±0.1℃, real-time monitoring |
| Cuvettes | 160reusable cuvettes, optical length 6mm | |
| Mixer Probe | Independent stirring | |
| Washing | Automatic cuvettes washing | |
| STAT function | YES | |
| Optical System | Light Source | 12V/20W halogen lamp/fiber bragg grating optional |
| Spectrophotometry | Post-spectral spectrophotometry | |
| Wavelength | 12 wavelength from 340~800nm | |
| Absorbance | 0~3.5Abs | |
| Calibration & QC | Calibration | Linear:K factor, 1-point ,2-point and multipoint linear |
| Non-Linear:Spline,Polygon, Index, Ogarithm, Logit-4P, Logit-5P | ||
| Quality Control | Real-time QC, Westgard multi rule, Cumulative Sum Check,Twin Plot(2D) | |
| Data Management | Software | Windows 7/8/10 , 32or 64bit |
| LIS System | Bi-direction,support HL7 protocol | |
| Interface | LAN port access | |
| Printer | External,multiple reporting mode available | |
| Working Conditions | Power Supply | AC220V±10% 50/60Hz, 110V±10% 60Hz, 1500W |
| Temperature | 15～30℃（±2℃） | |
| Water Consumption | Deionized water:25L/H | |
| Humidity | 40~85% | |
| Size & Weight | External Size (W*D*H) | 1360*795*1155mm |
| Net Weight | 290kg | |
| Package Size (W*D*H) | 1718*958*1427mm | |
| Gross Weight | 400kg | |
