Introducton:

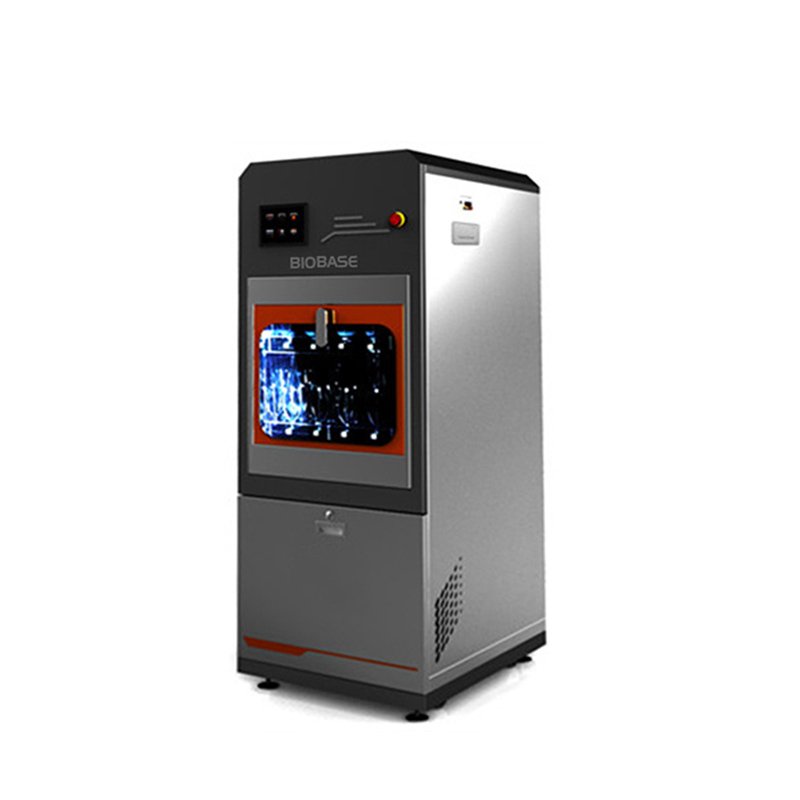

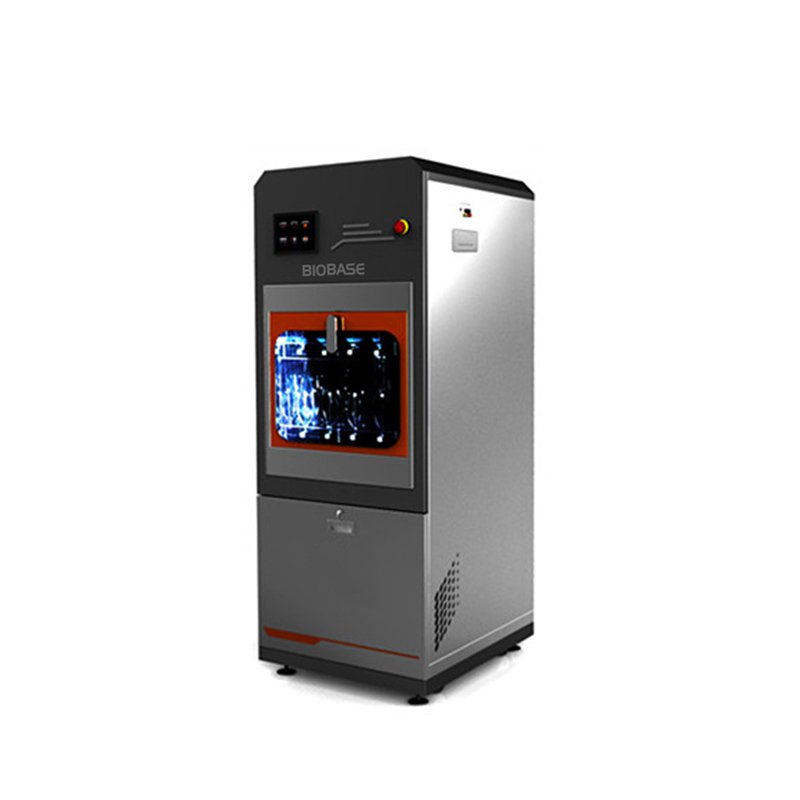

The lab glassware washers integrate programmed cleaning, disinfecting and drying functions to clean all glassware stuff, for beaker, flask, pipette, petri dish, burette, measuring cylinder, test tube etc.
Features:
* High efficient cleaning system, designed with European reliable pump, optimized spray arm and nozzles, and self-cleaning program;
* Rapid and efficient drying system, designed with independent air heater, HEPA filter and drying process;
* Water heating temperature can reach 99℃, while hot air drying temperature can reach 120℃;
* Professional configuration design—stainless steel for corrosion resistance;reinforced glass window mounted to achieve a clear view on washing process;
* PLC touch screen control with preset 12 programs and 99 cutomized programs
* Safety protection—electronic security door lock to prevent unexpected door opening, water & drying air temperature dual control and equipped with emergency switch.
Standard Washing Procedure (can be self-designed by the user):
Pre-cleaning→Washing with cleaner→Rinse→Washing with neutralization→Rinse→Washing with hot water→Drying
Models:
Model | BK-LW120 | BK-LW220 | BK-LW320 |
Capacity | 120L | 220L | 320L |
Water Consumption/Cycle | 17L | 20L | 22L |
Inlet Water Pressure | 0.3~0.8Mpa | ||
Noise | ≤50dB | ≤55dB | |
Material | Internal materia: SS316, Outer material: SS304 | ||
Overall Power Consumption | 6KW | 6/17KW | |
Power Consumption-Water Washing | 0.75KW | 1.5 KW | |
Power Consumption-Water Heating | 5KW | 5/15KW | |
Power Consumption-Drying | 3 KW | 3.6KW | |
Power Supply | AC220V, 50Hz(Standard); 110V,60Hz(Optional) | AC220V, 50Hz; 380V, 50Hz(Standard); 110V,60Hz(Optional) | |
Cleaning Racks | 1 pcs | 2 pcs | 3 pcs |
Standard Cleaning Racks | BKIR36*1 | BKIR36*2 | BKIR36*3 |
Standard Accessories | USB interface,One bucket RBS A 156 leaner (1 L), One bucket RBS A 375 neutralizer (1 L) | ||
Optional Accessories | Cleaning racks | ||
Washer Chamber Size(W*D*H)mm | 600*629*465 | 600*629*690 | 600*629*820 |
External Size(W*D*H)mm | 980*740*870 | 690*790*1820 | 690*790*1970 |
Package Size(W*D*H)mm | 1060*940*1030 | 790*940*1990 | 790*940*2100 |
Gross Weight(kg) | 203 | 300 | 320 |
