Features:
* Multi-stage shock absorption, centrifuge vibration is small.
* OLED large screen, real-time display of rotating speed, centrifugal force, running time, RCF and failure.
* Microcomputer processor precise control, operation parameters can be modified.
* DC brushless motor drive, low noise, maintenance free, no dust.
* 20 programs can be stored, 10 levels speed-up and speed-down control.
* Automatic induction door lock, with overspeed, unbalance protection, automatic fault alarm function, safe and reliable.
* Stop without reverberation, centrifuge cover automatically opened after the end of the centrifuge.
* All steel structure multilayer explosion-proof design, stainless steel cavity, ventilation hole and ring type ventilation duct.
* Adaptor and cover remover are specially designed to prevent cap removal during centrifuge operation.
Technical Parameter:
|
Model |
BKC-AU5BT |
BKC-AU5KT |
|
|
Max.Speed |
5000rpm |
||
|
Max.RCF |
4390×g |
||
|
Max.Capacity |
4*500ml |
||
|
Speed Precision |
±1% or ±20rpm |
||
|
Time Range |
1~999min |
||
|
Power Supply |
Standard: AC220V 50/60Hz Optional: AC110V 50/60Hz |
||
|
Consumption |
500W |
600W |
500W |
|
Noise |
≤65dB(A) |
||
|
External Size(L*W*H) |
620*450*350mm |
||
|
Package Size(L*W*H) |
700*530*480mm |
||
|
Net/Gross Weight |
45kg/55kg |
||

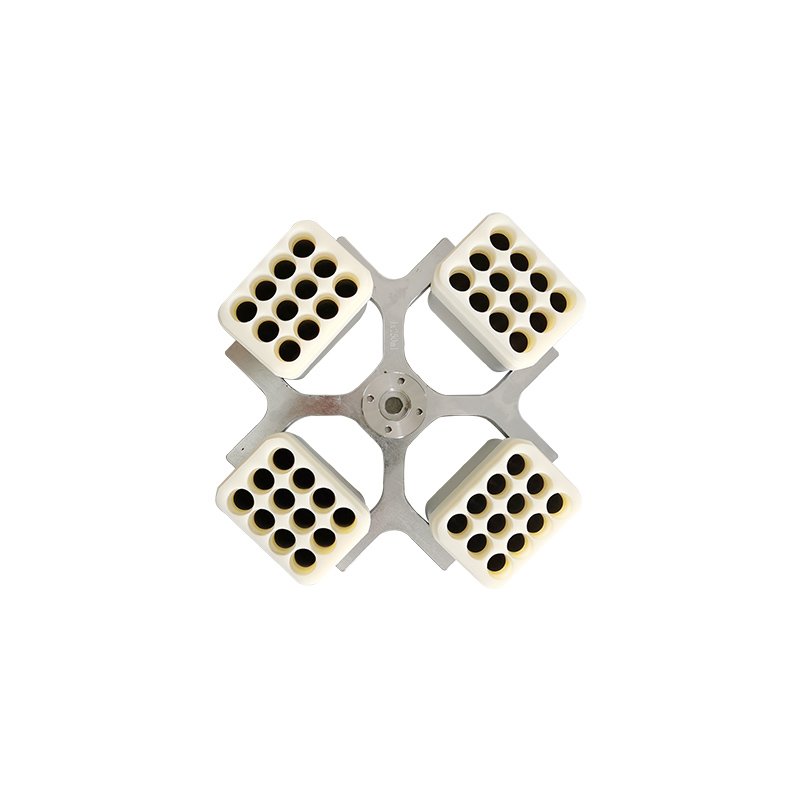

Rotor for BKC-AU5MT:
|
Type |
NO. |
Capacity |
Max.Speed(rpm) |
Max.RCF(×g) |
Tube Size(mm) |
|
Swing Rotor |
NO.1 |
4*50/100ml |
5000 |
4390 |
Φ13*100 |
|
NO.2 |
4*12*5ml (vacuum blood collection tube) |
4000 |
3500 |
||
|
NO.3 |
4*12*2ml (vacuum blood collection tube) |
4000 |
3500 |

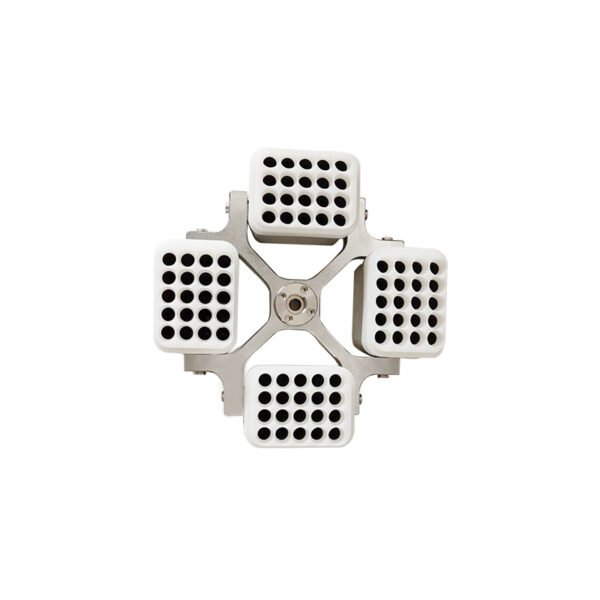

Rotor for BKC-AU5BT:
|
NO. |
Capacity |
Max.Speed(rpm) |
Max.RCF(×g) |
Tube Size(mm) |
|
|
Swing Rotor |
NO.1 |
4*50/100ml |
5000 |
4390 |
Φ13*75 Φ13*100 |
|
NO.2 |
4*20*5ml (vacuum blood collection tube) |
4000 |
3580 |
||
|
NO.3 |
4*20*2ml (vacuum blood collection tube) |
4000 |
3580 |

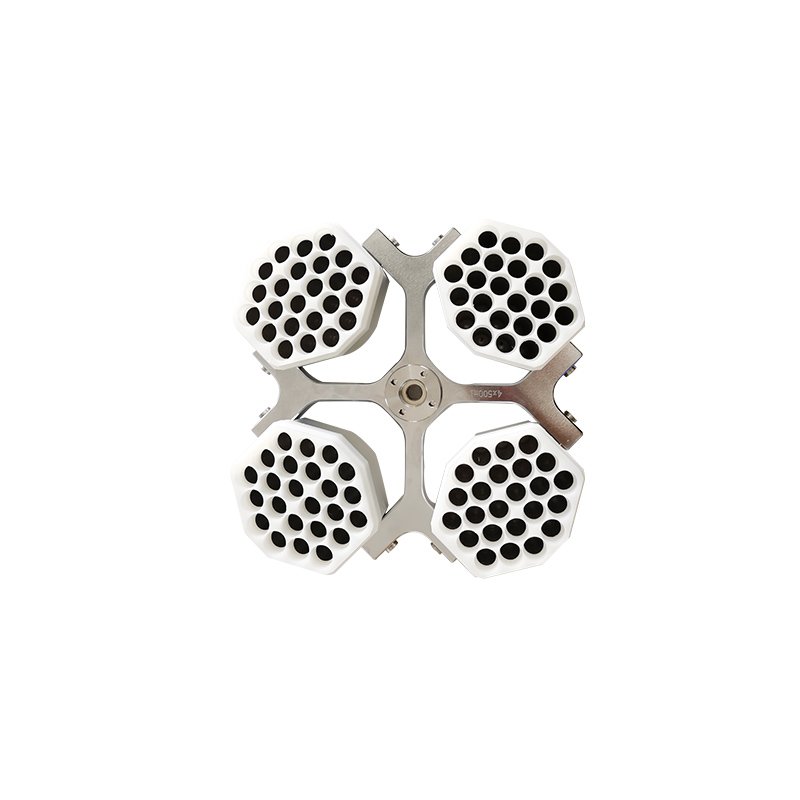

Rotor for BKC-AU5KT:
|
Type |
NO. |
Capacity |
Max.Speed(rpm) |
Max.RCF(×g) |
Tube Size(mm) |
|
Swing Rotor |
NO.1 |
4*50/100ml |
5000 |
4390 |
Φ13*75 Φ13*100 |
|
NO.2 |
4*24*5ml (vacuum blood collection tube) |
4000 |
3580 |
||
|
NO.3 |
4*24*2ml (vacuum blood collection tube) |
4000 |
3580 |
