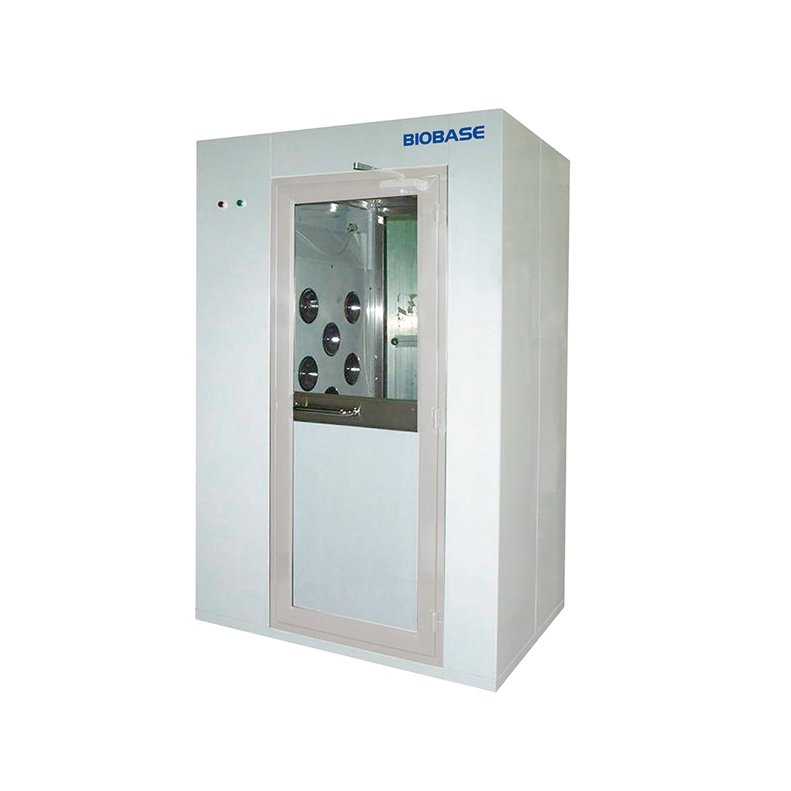

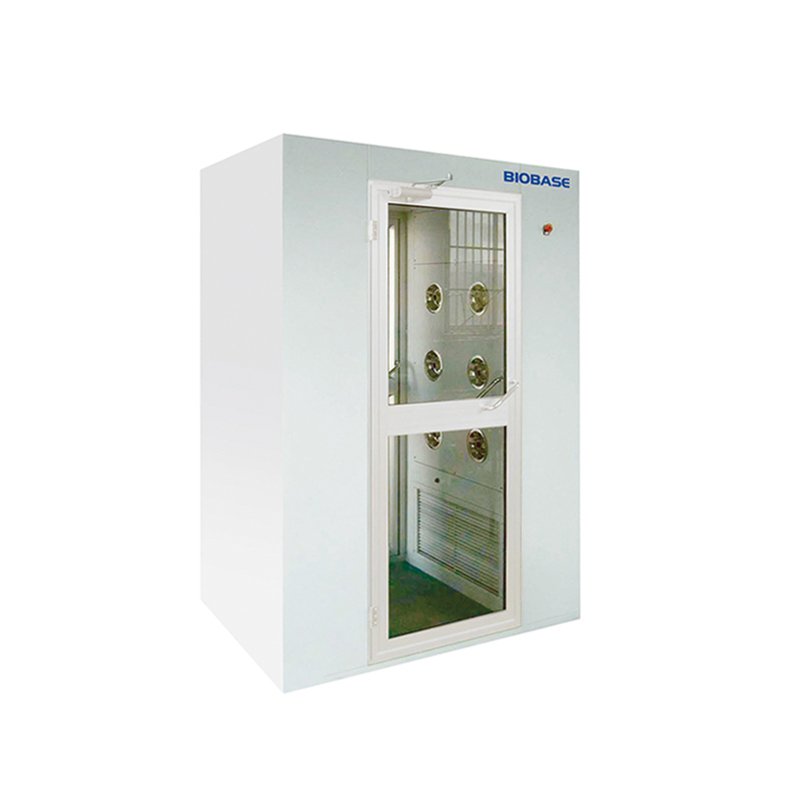

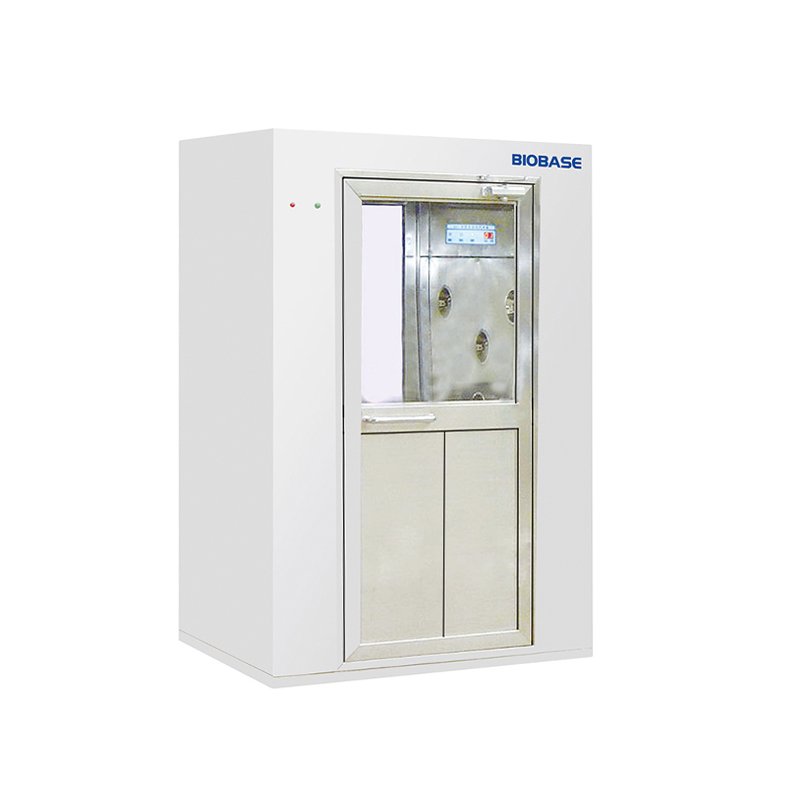

Air shower is a necessary passage for people entering clean room in order to minimize the amount of particulatecontaminant, to achieve workplace strict clean purification standards.Personnel move through the air shower whileparticulate contaminants are blown off by the clean high-speed air. Then the dust cannot be brought into clean area.
Models:
Model | AS-1P1S | AS-1P2S | AS-2P2S |
External Size(W*D*H) | 1300*1000*2050mm | 1500*1000*2050mm | 1500*2000*2050mm |
Shower Area Size(W*D*H) | 800*900*1930mm | 800*900*1930mm | 800*1900*1930mm |
HEPA Filter | 99.995% efficiency at 0.3 um | ||
Spraying Wind Speed | 25m/s | ||
Air Shower Time | 0~99s (adjustable) | ||
No.of SS Nozzles | 6 | 12 | 24 |
Fluorescent Lamp | 12W*1 | 12W*1 | 12W*2 |
Consumption | 550W | 1100W | 2200W |
Cabinet Material (Optional) | 1. Full cold-rolled steel with powder coating. 2. Internal stainless stell,external with cold-rolled steel. 3. Full Stainless Steel. | ||
Door Material (Optional) | 1. Cold-rolled steel with powder coating. 2. Stainless Steel. | ||
Chassis | Stainless Steel | ||
Power Supply | AC220V±10%, 50/60Hz; 110V±10%, 60Hz | ||
Gross Weight | 300kg | 400kg | 700kg |
Package Size (W*D*H)mm | 1400*1200*2200 | 1600*1200*2200 | 1600*2200*2200 |
