Models:
|
Model |

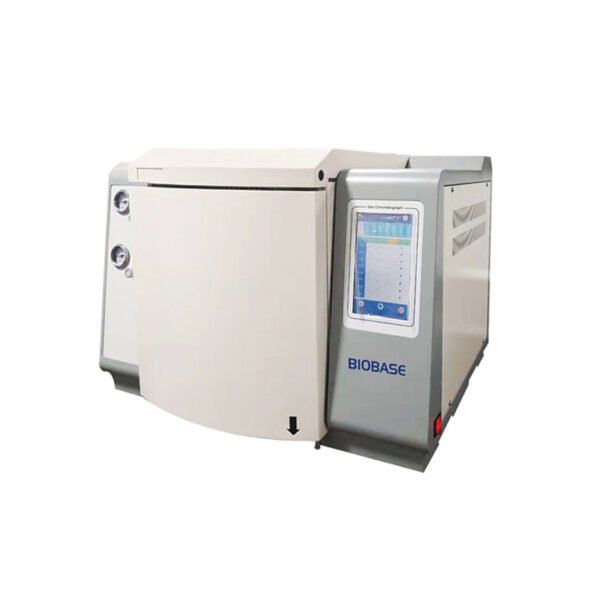

BK-GC7820 |
|
|
Oven |
Temp. Range |
RT~450℃ |
|
Temp. Accuracy |
≤±0.1℃ |
|
|
Temp. Program |
16-phase |
|
|
Max. Temp. Heating Rate |
40℃/min |
|
|
Detector |
Hydrogen Flame Ionization Detector (FID) |
Detection limit:≤3×10^12g/s (Sample:n-hexadecane) |
|
Baseline drift:≤1×10^13A/30min |
||
|
Linear range:≥10^7 |
||
|
ThermalConductivityDetector (TCD) (Optional) |
Sensitivity: >10000mv.ml/mg (Sample: n-hexadecane) |
|
|
Linear range:≥10^5 |
||
|
Electron Capture Detector (ECD) (Optional) |
(Sample:n-hexadecane δ-666) |
|
|
Linear range: ≥10^4 |
||
|
Flame Photometric Detector (FPD) (Optional) |
Detection limit:≤2×10^11g/s(S ofthiophene) Detection limit:≤1×10^12g/s(P ofmethyl parathion) |
|
|
Linear range (S): ≥10^3 Linear range (P): ≥10^4 |
||
|
Nitrogen and Phosphorus Detector (NPD) (Optional) |
Detection limit:≤1×10^12g/s(Azobenzene) Detection limit:≤1×10^12g/s(Marla sulfur phosphorous) |
|
|
Linear range: ≥10^3 |
||
|
Power Supply |
AC110/220V±10%, 50/60Hz |
|
|
Standard Accessory |
FID detector, Chromatography workstation software |
|
|
Optional Accessory |
Sample injection system, TCD, ECD, FPD and NPD detector, Chromatographic column. |
|
|
Package Size (W*D*H) |
800*570*650mm |
|
|
Gross Weight |
75kg |
|
