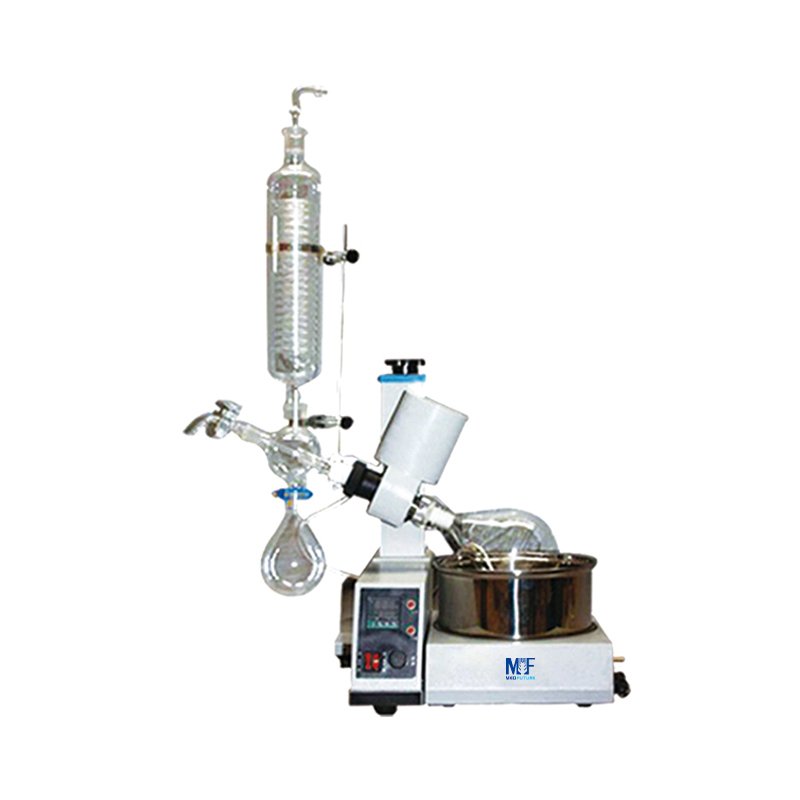

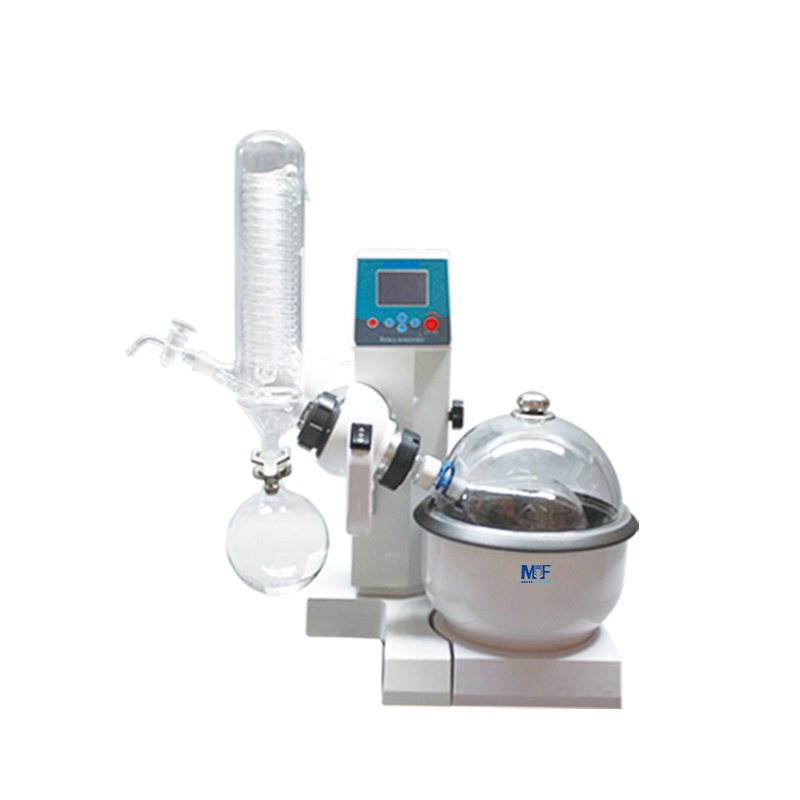

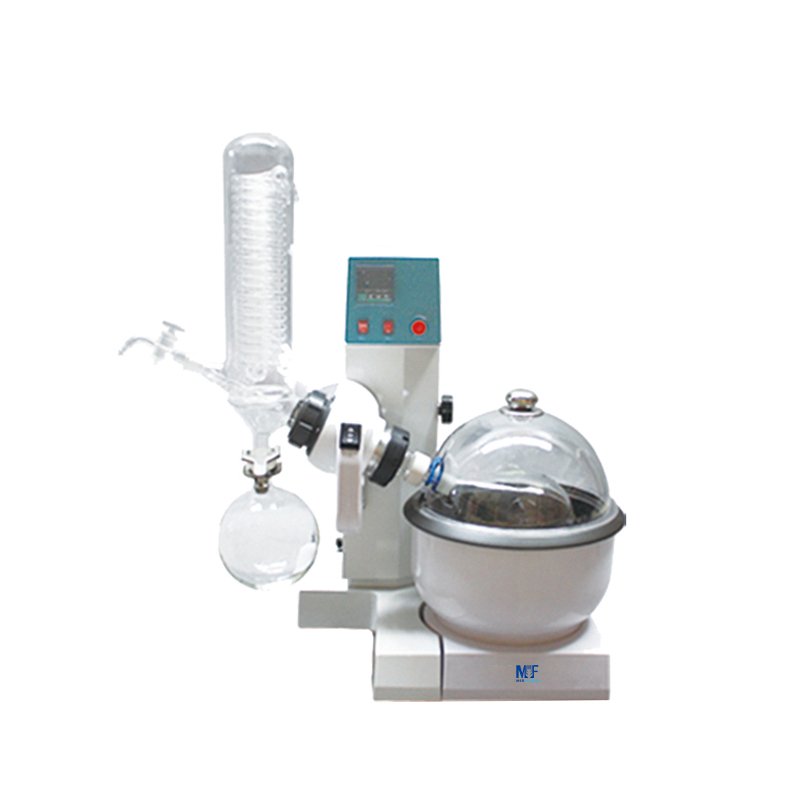

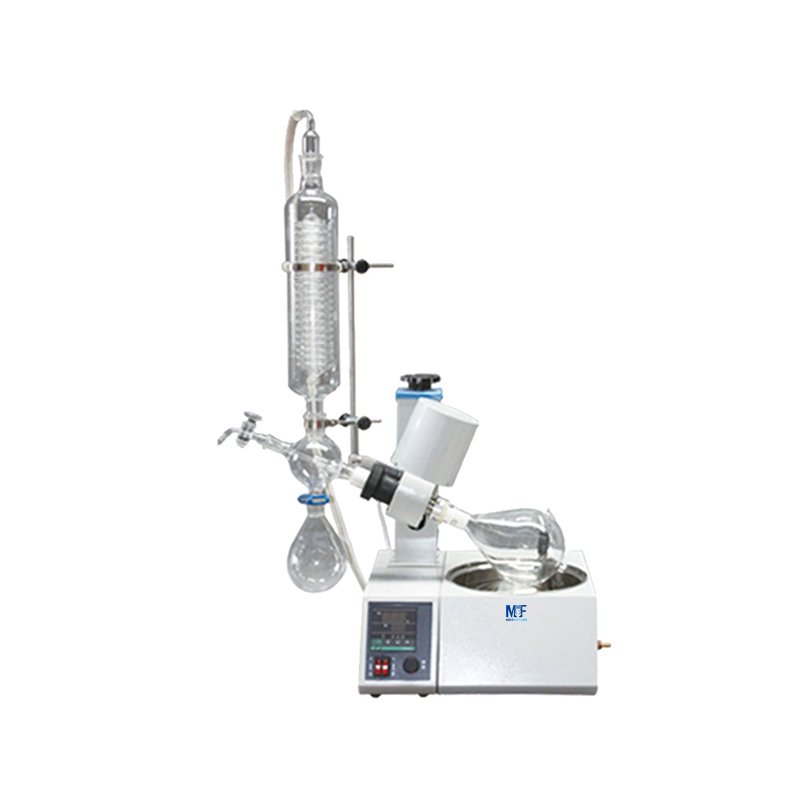

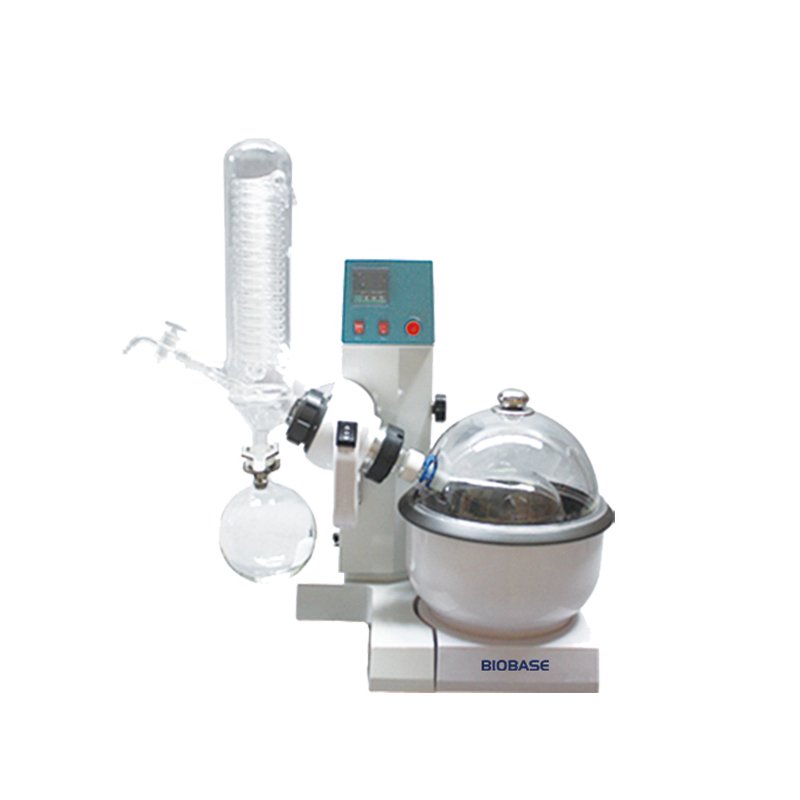

Introduction：
This product can form film under constant temperature heating and negative pressure conditions.Owning to its efficient evaporation and condensation recovery of menstruum ,
the product is employed in biological ,medical,chemical
and food industries , especially for operations of heat-sensitive
material,crystallization,separation and recovery of menstruum.
Models：
Model | RE-201D | RE-301 | RE-501 | RE-1002 | RE-2002 | RE-5003 | |||||
Rotary Bottle | 1L 24# (standard mouth) | 3 L (flangeφ50) | 5L (flangeφ50) | 10 L ( flange φ95) | 20L (flange φ95) | 50L (flange φ125) | |||||
Collecting Bottle | 1L 35# (standard mouth) | 2 L 35# (ball mill mouth) | 3L35# (ball mill mouth) | 5L ( flange φ50) | 10L (flange φ60) | 20L (flange φ60) | |||||
Condenser | Vertical φ85 *460mm, 29# (standard size) | Vertical φ100*510mm | Vertical φ100*590mm | Verticalthree backflow φ120*640mm (main), φ135*470mm (SUB) | Verticalthree backflow φ130*680mm (main), φ160*530mm (SUB) | Verticalthree backflow φ160*840mm (main), φ160*530mm (SUB) | |||||
Charging Valve | 19#(standard size） | 34#(standard size） | 40#(standard size） | ||||||||
Rotary Speed | 0-120rpm | 0-110 rpm | |||||||||
Vacuum | 0.098 Mpa | ||||||||||
Temp. Range | RT~400℃ | ||||||||||
Temp. Accuracy | ±1℃ | ||||||||||
Stroke Height | 120mm | 180mm | |||||||||
Rotary Power | 30W | 40W | 120W | 180W | |||||||
Heating Power | 1.5KW | 2KW | 3KW | 5KW | 8KW | ||||||
Shelf Material | Stainless steel | Coating anticorrosive | |||||||||
Chamber Material | SS 250 *140mm | SS 255 *170mm | SS 280 *170mm | SS 550 *320mm | SS 450 *250mm | SS 350 *220mm | |||||
Plate size | 280 *330mm | 350 *330mm | 534 *504mm | 474 *474mm | 550 *320mm | ||||||
Power Supply | AC220/110V±10%,50/60Hz | AC220V±10%,50Hz | AC380V/220V±10%,50Hz | ||||||||
External Size (mm) | 700*440 *885 | 660*330 *970 | 700*335 *1009 | 970*480 *1950 | 1170*540 *2200 | 1520*620 *2470 | |||||
Package Size (mm) | 590*460 *460 | 1000*460 *450
| 1040*620 *410
| 1350*350 *400; 1280*570 *660
| 1370*700 *680; 700*680 *740
| 1450*390 *440; 1150*840 *660; 790*730 *790 | |||||
Gross Weight | 21 Kg | 38 Kg | 38 Kg | 100 Kg | 123 Kg | 170 Kg | |||||
Standard Accessory | 1L Rotary bottle*1, 1L Collecting bottle*1 | 3L Rotary bottle*1, 2L Collecting bottle*1 | 5L Rotary bottle*1, 3L Collecting bottle*1, | 10L rotary bottle*1, 5L collecting bottle *1 | 20L rotary bottle*1, 10L collecting bottle *1 | 50L rotary bottle*1, 20L collecting bottle *1 | |||||
Optional Accessory | Transparent bath cover, Explosion-proof transducer | Explosion-proof transducer, Explosion-proof motor EX40W
| Explosion-proof transducer, Double collection bottle,Auto-lifting, Explosion-proof motor EX120W | ||||||||
Vacuum pump, Recirculating chiller | |||||||||||
