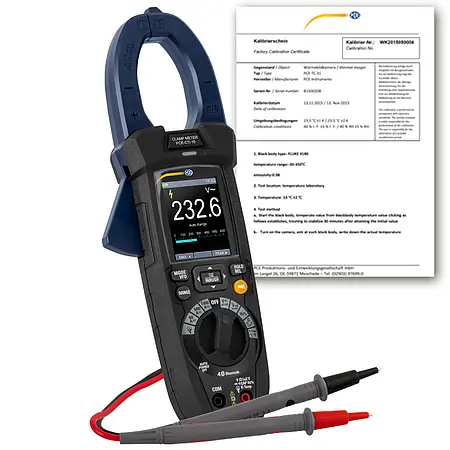

Clamp Meter PCE-CTI 10-ICA incl. ISO Calibration Certificate

Clamp meter dengan antarmuka Bluetooth 4.0 ini adalah alat ukur industri yang dirancang untuk mengukur tegangan hingga 1500 V AC/DC dan arus hingga 1000 A AC/DC dengan akurasi tinggi. Prinsip kerjanya menggunakan metode induksi magnetik, di mana kabel penghantar ditempatkan di dalam rahang clamp untuk mengukur arus tanpa perlu memutus rangkaian. Alat ini sangat ideal untuk aplikasi di industri manufaktur, terutama dalam pemeliharaan sistem fotovoltaik, di mana pengukuran arus pada setiap deretan sel surya dapat dilakukan secara efisien. Kemampuannya mengukur arus hubung singkat (inrush current) juga memudahkan analisis dimensi kabel dan pengaman listrik.

Selain fungsi dasar, clamp meter ini dilengkapi dengan fitur VFD untuk mengukur frekuensi converter dalam rentang 45 Hz hingga 1 kHz, menjadikannya alat serbaguna untuk sistem kontrol motor dan pencahayaan stadion. Antarmuka Bluetooth 4.0 memungkinkan koneksi ke perangkat Android atau iOS melalui aplikasi “Meterbox Pro”, sehingga data pengukuran dapat ditampilkan, disimpan, dan dianalisis dengan mudah. Fitur data logging mampu menyimpan hingga 100.000 nilai pengukuran beserta timestamp, memudahkan pelacakan tren dan evaluasi kinerja sistem.

Untuk kebutuhan pengukuran arus yang lebih tinggi, clamp meter ini dapat diperluas dengan tambahan flexible current clamp yang memungkinkan pengukuran hingga 3000 A AC. Current clamp tambahan ini terhubung ke input tegangan dan mengkonversi nilai tegangan menjadi arus yang terbaca pada layar. Fleksibilitas ini membuat alat ini cocok untuk aplikasi di pembangkit listrik tenaga air, angin, atau instalasi mesin listrik berdaya besar. Dengan kalibrasi standar ISO yang disertakan, pengguna dapat memastikan keandalan hasil pengukuran.

Kemudahan penggunaan menjadi salah satu keunggulan clamp meter ini, didukung dengan antarmuka yang intuitif dan fitur otomatisasi seperti pengukuran inrush current yang cepat. Baterai isi ulang dan stasiun pengisian yang termasuk dalam paket memastikan alat siap digunakan kapan saja. Termokopel tipe-K dan sepasang kabel pengukur yang disertakan juga memperluas fungsionalitasnya untuk pengukuran suhu dan tegangan secara bersamaan.

Clamp meter ini adalah solusi lengkap untuk profesional di industri manufaktur, energi terbarukan, dan utilitas listrik. Dengan kombinasi fitur canggih, portabilitas, dan kalibrasi standar, alat ini tidak hanya meningkatkan efisiensi kerja tetapi juga memastikan keamanan dan akurasi data. Sertifikat kalibrasi ISO yang disesuaikan dengan pelanggan menjadikannya investasi yang bernilai untuk kebutuhan pengukuran presisi jangka panjang. Untuk informasi lebih lanjut dan konsultasi gratis mengenai produk ini, hubungi kami di WhatsApp 6285717112222 atau email contact@alat-test.com. Kami menyediakan pengiriman cepat dengan kualitas terjamin dan harga kompetitif.

– Free app for Android and iOS- Measuring range 0 … 1500 V AC/DC- Data logging for up to 100,000 measured values- Inrush current measurement- Additionally with LowZ voltage measurement- 2.36″ TFT display- With voltage and temperature measurement- Incl. calibration certificate

DC voltage
Measuring range	±600.0 mV
Resolution	0.1 mV
Accuracy	±(0.8 % of measured value + 8 digits)
Measuring range	±6.000 V
Resolution	0.001 V
Accuracy	±(0.5 % of measured value + 5 digits)
Measuring range	±60.00 V
Resolution	0.01 V
Accuracy	±(0.5 % of measured value + 5 digits)
Measuring range	± 600.0 V
Resolution	0.1 V
Accuracy	±(0.8 % of measured value + 5 digits)
Measuring range	±1500 V
Resolution	1 V
Accuracy	±(0.8 % of measured value + 5 digits)

Input impedance: >10 MΩ; Overvoltage protection: 1500 VDC / 1000 VAC rms

AC voltage
Measuring range	0.000 … 6.000 V
Resolution	0.001 V
Accuracy	50 … 60 Hz: ±(1.2 % of measured value + 5 digits)
	61 … 1 kHz: ±(2.5 % of measured value + 5 digits)
Measuring range	0.00 … 60.00 V
Resolution	0.01 V
Accuracy	50 … 60 Hz: ±(1.2 % of measured value + 5 digits)
	61 … 1 kHz: ±(2.5 % of measured value + 5 digits)
Measuring range	0.0 … 600.0 V
Resolution	0.1 V
Accuracy	50 … 60 Hz: ±(1.2 % of measured value + 5 digits)
	61 … 1 kHz: ±(2.5 % of measured value + 5 digits)
Measuring range	0 … 1500 V
Resolution	1 V
Accuracy	50 … 60 Hz: ±(1.2 % of measured value + 5 digits)
	61 … 1 kHz: ±(2.5 % of measured value + 5 digits)

The accuracy relates to 10 … 100% of the respective measuring range and a sine wave input impedance: >9 MΩ; Overvoltage protection: 1000 V DC/AC RMSThe accuracy of the “PEAK” function is: ±10 % of measured valueThe response time of the “PEAK” function is: 1 ms

AC voltage with low input impedance (LowZ)
Measuring range	0.000 … 6.000 V
Resolution	0.001 V
Accuracy	±(3.0 % of measured value + 40 digits)
Measuring range	0.00 … 60.00 V
Resolution	0.01 V
Accuracy	±(3.0 % of measured value + 40 digits)
Measuring range	0.0 … 300.0 V
Resolution	0.1 V
Accuracy	±(3.0 % of measured value + 40 digits)

Input impedance: 300 kΩ; Overvoltage protection: 1000 VDC / VAC RMSThe accuracy relates to 10 … 100% of the respective measuring range and a sine wave

DC and AC voltage (50 … 1 kHz)
Measuring range	0.000 … 6.000 V
Resolution	0.001 V
Accuracy	±(2.5 % of measured value + 40 digits)
Measuring range	0.00 … 60.00 V
Resolution	0.01 V
Accuracy	±(2.5 % of measured value + 40 digits)
Measuring range	0.0 … 600.0 V
Resolution	0.1 V
Accuracy	±(2.5 % of measured value + 40 digits)
Measuring range	0 … 1000 V
Resolution	1 V
Accuracy	±(2.5 % of measured value + 40 digits)

Input impedance: 300 kΩ; Overvoltage protection: 1000 VDC / VAC RMS

DC and AC voltage with low input impedance (LowZ)
Measuring range	0.000 … 6.000 V
Resolution	0.001 V
Accuracy	±(3.5 % of measured value + 40 digits)
Measuring range	0.00 … 60.00 V
Resolution	0.01 V
Accuracy	±(3.5 % of measured value + 40 digits)
Measuring range	0.0 … 300.0 V
Resolution	0.1 V
Accuracy	±(3.5 % of measured value + 40 digits)

Input impedance: 300 kΩ; Overvoltage protection: 1000 VDC / VAC RMS

Non-Contacting Voltage Verification (NCV)
Detection range	100 … 1000 AC/DC
Direct current
Measuring range	±60.00 A
Resolution	0.01 A
Accuracy	±(3.0 % of measured value + 8 digits)
Measuring range	±600.0 A
Resolution	0.1 A
Accuracy	±(3.0 % of measured value + 8 digits)
Measuring range	±1000 A
Resolution	1 A
Accuracy	±(3.0 % of measured value + 8 digits)
Overload protection: 1000 A AC/DC

Alternating current (50 … 60 Hz)
Measuring range	0.00 … 60.00 A
Resolution	0.01 A
Accuracy	±(2.5 % of measured value + 5 digits)
Measuring range	0.0 … 600.0 A
Resolution	0.1 A
Accuracy	±(2.5 % of measured value + 5 digits)
Measuring range	0 … 1000 A
Resolution	1 A
Accuracy	±(2.5 % of measured value + 5 digits)

Overload protection: 1000 A AC/DCThe accuracy relates to 10 … 100 % of the respective measuring range and a sine waveThe inrush current measurement is for reference only

AC current measurement with flexible clamp meter (50 … 400 Hz)
Measuring range	0.00 … 30.00 A
Resolution	0.01 A
Accuracy	±(3.0 % of measured value + 5 digits)
Measuring range	0.0 … 300.0 A
Resolution	0.1 A
Accuracy	±(3.0 % of measured value + 5 digits)
Measuring range	0 … 3000 A
Resolution	1 A
Accuracy	±(3.0 % of measured value + 5 digits)

Overload protection: 1000 A AC/DCThe accuracy relates to 10 … 100% of the respective measuring range and a sine wave

Resistance and continuity measurement
Measuring range	0.0 … 600.0 Ω
Resolution	0.1 Ω
Accuracy	±(1.0 % of measured value + 10 digits)
Measuring range	0.000 … 6.000 kΩ
Resolution	0.001 kΩ
Accuracy	±(0.8 % of measured value + 5 digits)
Measuring range	0.00 … 60.00 kΩ
Resolution	0.01 kΩ
Accuracy	±(0.8 % of measured value + 5 digits)
Measuring range	0.0 … 600.0 kΩ
Resolution	0.1 kΩ
Accuracy	±(0.8 % of measured value + 5 digits)
Measuring range	0.000 … 6.000 MΩ
Resolution	0.001 MΩ
Accuracy	±(0.8 % of measured value + 5 digits)
Measuring range	0.00 … 60.00 MΩ
Resolution	0.01 MΩ
Accuracy	±(2.5 % of measured value + 10 digits)

Continuity test acoustic signal at: <50 Ω Overvoltage protection: 1000 V AC/DC

Frequency measurement
Measuring range	0.00 … 60.00 Hz
Resolution	0.01 Hz
Accuracy	±(0.2 % of measured value + 5 digits)
Measuring range	0.0 … 600.0 Hz
Resolution	0.1 Hz
Accuracy	±(0.2 % of measured value + 5 digits)
Measuring range	0.000 … 6.000 kHz
Resolution	0.001 kHz
Accuracy	±(0.2 % of measured value + 5 digits)
Measuring range	0.00 … 60.00 kHz
Resolution	0.01 kHz
Accuracy	±(0.2 % of measured value + 5 digits)
Measuring range	0.0 … 600.0 kHz
Resolution	0.1 kHz
Accuracy	±(0.2 % of measured value + 5 digits)
Measuring range	0.000 … 6.000 MHz
Resolution	0.001 MHz
Accuracy	±(0.2 % of measured value + 5 digits)

Overvoltage protection: 1000 V AC/DC Sensitivity: >2 Vrms with a duty cycle between 20 … 80 % and a frequency of <100 kHz>5 Vrms with a duty cycle between 20 … 80 % and a frequency of >100 kHz

Duty cycle
Measuring range	10.0 … 90.0 %
Resolution	0.1 %
Accuracy	±(1.2 % of measured value + 8 digits)

Frequency range: 40 … 10 kHz; Pulse amplitude±5 V with a duration between 100 µs … 100 mS

Capacity
Measuring range	0.00 … 60.00 nF
Resolution	0.01 nF
Accuracy	±(3.0 % of measured value + 20 digits)
Measuring range	0.0 … 600.0 nF
Resolution	0.1 nF
Accuracy	±(3.0 % of measured value + 8 digits)
Measuring range	0.000 … 6.000 µF
Resolution	0.001 µF
Accuracy	±(3.0 % of measured value + 8 digits)
Measuring range	0.00 … 60.00 µF
Resolution	0.01 µF
Accuracy	±(3.0 % of measured value + 8 digits)
Measuring range	0.0 … 600.0 nF
Resolution	0.1 nF
Accuracy	±(3.0 % of measured value + 8 digits)
Measuring range	0 … 6000 µF
Resolution	1 µF
Accuracy	±(3.5 % of measured value + 20 digits)
Measuring range	0.00 … 60.00 mF
Resolution	0.01 mF
Accuracy	for reference only
Measuring range	0.0 … 600.0 mF
Resolution	0.1 mF
Accuracy	for reference only

Overvoltage protection: 1000 A AC/DC

Temperature measurement thermocouple Type K (connection)
Measuring range	-40.0 … 600.0 °C
Resolution	0.1 °C
Accuracy	±(1.5 % of measured value + 3 °C)
Measuring range	600 … 1000 °C
Resolution	1 °C
Accuracy	±(1.5 % of measured value + 3 °C)
Measuring range	-40.0 … 600.0 °F
Resolution	0.1 °F
Accuracy	±(1.5 % of measured value + 5.4 °F)
Measuring range	600 … 1800 °F
Resolution	1 °F
Accuracy	±(1.5 % of measured value + 5.4 °F)
Measuring range	245.0 … 600.0 K
Resolution	0.1 K
Accuracy	±(1.5 % of measured value + 3 K)
Measuring range	600 … 1273 K
Resolution	1 K
Accuracy	±(1.5 % of measured value + 3 K)

Overvoltage protection: 1000 A AC/DC

Diode test
Test current	<1.5 mA
Maximum voltage	3.3 VDC

Further specifications
Storage space	16 groups with a total storage space
	of 100,000 measured values
Clamp diameter horizontal	38 mm / 1.49″
Clamp diameter vertical	63 mm / 2.48″
Clamp opening	45 mm / 1.77″
Protection class	IP65
Interface	Bluetooth 4.0
Pollution degree	2
Insulation categories	CAT IV 600 V, CAT III 1000 V, CAT II 1500 V
Maximum working height	2000 m / 6562 ft
Power supply battery	7.4 V, 1200 mAh Li-ion battery
Power supply charger	Primary: 100 … 240 V AC, 50 … 60 Hz
	Secondary: 12 V DC, 2 A
Plug connection charger	Europa, USA, England, China
Battery status display	available
Automatic switch-off	switched off, 15, 30 or 60 minutes
Display	2.36″ TFT
Display frequency	3 Hz
Reference conditions	18 … 28 °C, 64 … 82 °F; <80 % RH,
	non-condensing
Dimensions	275 x 100 x 45 mm / 10.8 x 3.9 x 1.7″
Weight	481 g / 16.9 oz

1 x Clamp meter PCE-CTI 10-ICA1 x Thermocouple Type-K with adapter1 x Pair of measuring leads 1 x Carrying case1 x Battery charging station1 x Rechargeable battery1 x Instruction manual1 x ISO Calibration Certificate N.B. Calibration certificates are issued specifically for the customer and are excluded from the right of return.
