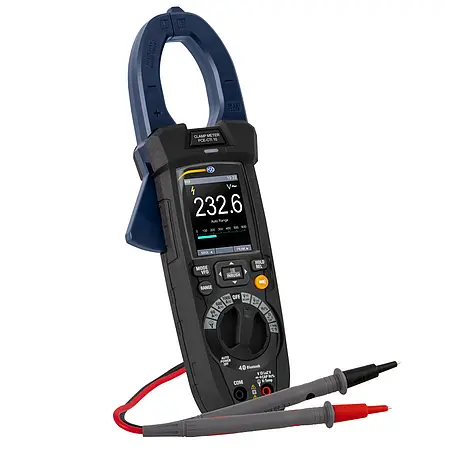

Clamp on Tester PCE-CTI 10

Clamp on Tester PCE-CTI 10

Kategori : Brand:

Clamp on tester dengan antarmuka Bluetooth 4.0 ini adalah alat ukur serbaguna untuk mengukur tegangan hingga 1500 V AC/DC dan arus hingga 1000 A AC/DC secara induktif tanpa memutus sirkuit. Dilengkapi fitur pengukuran arus inrush dan fungsi VFD untuk frekuensi 45 Hz–1 kHz, alat ini ideal untuk pemeliharaan sistem fotovoltaik, pembangkit listrik, atau mesin industri. Keunggulannya mencakup ekspansi dengan clamp arus fleksibel opsional hingga 3000 A AC, kapasitas penyimpanan 100.000 data dengan pencatatan waktu, serta konektivitas nirkabel melalui aplikasi “Meterbox Pro” untuk analisis real-time. Tersedia pula opsi sertifikasi kalibrasi ISO untuk kebutuhan presisi tinggi. Desain portabel dengan baterai isi ulang dan kotak pelindung memastikan kemudahan penggunaan di lapangan.

Info penawaran harga dan pemesanan hubungi:

Email
WhatsApp
Telephone

Clamp on tester dengan antarmuka Bluetooth 4.0 ini adalah alat ukur serbaguna yang dirancang untuk mengukur tegangan hingga 1500 V AC/DC dan arus hingga 1000 A AC/DC secara induktif. Prinsip kerjanya memungkinkan pengukuran arus tanpa memutus rangkaian, cukup dengan menjepitkan clamp pada kabel yang dialiri listrik. Fitur ini sangat berguna untuk pemeliharaan sistem fotovoltaik, di mana pengukuran arus pada setiap deretan sel surya dapat dilakukan dengan akurasi tinggi tanpa mengganggu operasional sistem. Alat ini juga mendukung pengukuran inrush current, yaitu lonjakan arus saat peralatan pertama kali dinyalakan, yang kritis untuk menentukan dimensi kabel dan pengaman.

Selain pengukuran dasar, alat ini dilengkapi dengan fungsi VFD (Variable Frequency Drive) untuk mengukur frekuensi dalam rentang 45 Hz hingga 1 kHz, ideal untuk memantau kinerja inverter atau konverter frekuensi. Antarmuka Bluetooth 4.0 memungkinkan koneksi ke perangkat Android atau iOS melalui aplikasi “Meterbox Pro”, sehingga data pengukuran dapat ditampilkan, disimpan, dan dianalisis dengan mudah. Kemampuan data logging-nya mampu menyimpan hingga 100.000 nilai pengukuran dalam 16 grup, dilengkapi timestamp untuk pelacakan yang presisi.

Untuk aplikasi industri yang lebih menantang, clamp on tester ini dapat diperluas dengan clamp arus fleksibel opsional yang memungkinkan pengukuran hingga 3000 A AC. Clamp tambahan ini terhubung ke input tegangan alat utama dan mengkonversi nilai tegangan menjadi arus yang terbaca pada layar. Fleksibilitas ini membuatnya cocok untuk penggunaan di industri manufaktur, pembangkit listrik, atau instalasi mesin elektrik berskala besar.

Alat ini sangat mudah digunakan berkat desainnya yang ergonomis dan antarmuka yang intuitif. Dilengkapi dengan termokopel tipe-K, kabel pengukur, dan casing pelindung, clamp on tester siap digunakan di berbagai lingkungan kerja. Opsi kalibrasi standar ISO juga tersedia untuk memastikan keandalan pengukuran sesuai kebutuhan pengguna.

Dengan kombinasi fitur canggih dan kemudahan penggunaan, produk ini menjadi solusi ideal untuk teknisi dan engineer di berbagai sektor, termasuk energi terbarukan seperti PLTS, PLTA, dan PLTB. Kemampuannya dalam menangani pengukuran kompleks seperti inrush current dan frekuensi variabel menjadikannya alat yang tak tergantikan untuk pemeliharaan dan troubleshooting sistem elektrik modern. Untuk informasi lebih lanjut dan konsultasi gratis mengenai produk ini, hubungi kami di WhatsApp 6285717112222 atau email contact@alat-test.com. Kami menyediakan pengiriman cepat dengan kualitas terjamin dan harga kompetitif.

– Free app for Android and iOS- Measuring range 0 … 1500 V AC/DC- Data logging for up to 100,000 measured values- Inrush current measurement- Additionally with LowZ voltage measurement- 2.36″ TFT display- With voltage and temperature measurement- Optionally with calibration certificate

DC voltage
Measuring range ±600.0 mV
Resolution 0.1 mV
Accuracy ±(0.8 % of measured value + 8 digits)
Measuring range ±6.000 V
Resolution 0.001 V
Accuracy ±(0.5 % of measured value + 5 digits)
Measuring range ±60.00 V
Resolution 0.01 V
Accuracy ±(0.5 % of measured value + 5 digits)
Measuring range ± 600.0 V
Resolution 0.1 V
Accuracy ±(0.8 % of measured value + 5 digits)
Measuring range ±1500 V
Resolution 1 V
Accuracy ±(0.8 % of measured value + 5 digits)
Input impedance: >10 MΩ; Overvoltage protection: 1500 VDC / 1000 VAC rms
AC voltage
Measuring range 0.000 … 6.000 V
Resolution 0.001 V
Accuracy 50 … 60 Hz: ±(1.2 % of measured value + 5 digits)
61 … 1 kHz: ±(2.5 % of measured value + 5 digits)
Measuring range 0.00 … 60.00 V
Resolution 0.01 V
Accuracy 50 … 60 Hz: ±(1.2 % of measured value + 5 digits)
61 … 1 kHz: ±(2.5 % of measured value + 5 digits)
Measuring range 0.0 … 600.0 V
Resolution 0.1 V
Accuracy 50 … 60 Hz: ±(1.2 % of measured value + 5 digits)
61 … 1 kHz: ±(2.5 % of measured value + 5 digits)
Measuring range 0 … 1500 V
Resolution 1 V
Accuracy 50 … 60 Hz: ±(1.2 % of measured value + 5 digits)
61 … 1 kHz: ±(2.5 % of measured value + 5 digits)
The accuracy relates to 10 … 100% of the respective measuring range and a sine wave input impedance: >9 MΩ; Overvoltage protection: 1000 V DC/AC RMSThe accuracy of the “PEAK” function is: ±10 % of measured valueThe response time of the “PEAK” function is: 1 ms
AC voltage with low input impedance (LowZ)
Measuring range 0.000 … 6.000 V
Resolution 0.001 V
Accuracy ±(3.0 % of measured value + 40 digits)
Measuring range 0.00 … 60.00 V
Resolution 0.01 V
Accuracy ±(3.0 % of measured value + 40 digits)
Measuring range 0.0 … 300.0 V
Resolution 0.1 V
Accuracy ±(3.0 % of measured value + 40 digits)
Input impedance: 300 kΩ; Overvoltage protection: 1000 VDC / VAC RMSThe accuracy relates to 10 … 100% of the respective measuring range and a sine wave
DC and AC voltage (50 … 1 kHz)
Measuring range 0.000 … 6.000 V
Resolution 0.001 V
Accuracy ±(2.5 % of measured value + 40 digits)
Measuring range 0.00 … 60.00 V
Resolution 0.01 V
Accuracy ±(2.5 % of measured value + 40 digits)
Measuring range 0.0 … 600.0 V
Resolution 0.1 V
Accuracy ±(2.5 % of measured value + 40 digits)
Measuring range 0 … 1000 V
Resolution 1 V
Accuracy ±(2.5 % of measured value + 40 digits)
Input impedance: 300 kΩ; Overvoltage protection: 1000 VDC / VAC RMS
DC and AC voltage with low input impedance (LowZ)
Measuring range 0.000 … 6.000 V
Resolution 0.001 V
Accuracy ±(3.5 % of measured value + 40 digits)
Measuring range 0.00 … 60.00 V
Resolution 0.01 V
Accuracy ±(3.5 % of measured value + 40 digits)
Measuring range 0.0 … 300.0 V
Resolution 0.1 V
Accuracy ±(3.5 % of measured value + 40 digits)
Input impedance: 300 kΩ; Overvoltage protection: 1000 VDC / VAC RMS
Non-Contacting Voltage Verification (NCV)
Detection range 100 … 1000 AC/DC
Direct current
Measuring range ±60.00 A
Resolution 0.01 A
Accuracy ±(3.0 % of measured value + 8 digits)
Measuring range ±600.0 A
Resolution 0.1 A
Accuracy ±(3.0 % of measured value + 8 digits)
Measuring range ±1000 A
Resolution 1 A
Accuracy ±(3.0 % of measured value + 8 digits)
Overload protection: 1000 A AC/DC
Alternating current (50 … 60 Hz)
Measuring range 0.00 … 60.00 A
Resolution 0.01 A
Accuracy ±(2.5 % of measured value + 5 digits)
Measuring range 0.0 … 600.0 A
Resolution 0.1 A
Accuracy ±(2.5 % of measured value + 5 digits)
Measuring range 0 … 1000 A
Resolution 1 A
Accuracy ±(2.5 % of measured value + 5 digits)
Overload protection: 1000 A AC/DCThe accuracy relates to 10 … 100 % of the respective measuring range and a sine waveThe inrush current measurement is for reference only
AC current measurement with flexible clamp meter (50 … 400 Hz)
Measuring range 0.00 … 30.00 A
Resolution 0.01 A
Accuracy ±(3.0 % of measured value + 5 digits)
Measuring range 0.0 … 300.0 A
Resolution 0.1 A
Accuracy ±(3.0 % of measured value + 5 digits)
Measuring range 0 … 3000 A
Resolution 1 A
Accuracy ±(3.0 % of measured value + 5 digits)
Overload protection: 1000 A AC/DCThe accuracy relates to 10 … 100% of the respective measuring range and a sine wave
Resistance and continuity measurement
Measuring range 0.0 … 600.0 Ω
Resolution 0.1 Ω
Accuracy ±(1.0 % of measured value + 10 digits)
Measuring range 0.000 … 6.000 kΩ
Resolution 0.001 kΩ
Accuracy ±(0.8 % of measured value + 5 digits)
Measuring range 0.00 … 60.00 kΩ
Resolution 0.01 kΩ
Accuracy ±(0.8 % of measured value + 5 digits)
Measuring range 0.0 … 600.0 kΩ
Resolution 0.1 kΩ
Accuracy ±(0.8 % of measured value + 5 digits)
Measuring range 0.000 … 6.000 MΩ
Resolution 0.001 MΩ
Accuracy ±(0.8 % of measured value + 5 digits)
Measuring range 0.00 … 60.00 MΩ
Resolution 0.01 MΩ
Accuracy ±(2.5 % of measured value + 10 digits)
Continuity test acoustic signal at: <50 Ω Overvoltage protection: 1000 V AC/DC
Frequency measurement
Measuring range 0.00 … 60.00 Hz
Resolution 0.01 Hz
Accuracy ±(0.2 % of measured value + 5 digits)
Measuring range 0.0 … 600.0 Hz
Resolution 0.1 Hz
Accuracy ±(0.2 % of measured value + 5 digits)
Measuring range 0.000 … 6.000 kHz
Resolution 0.001 kHz
Accuracy ±(0.2 % of measured value + 5 digits)
Measuring range 0.00 … 60.00 kHz
Resolution 0.01 kHz
Accuracy ±(0.2 % of measured value + 5 digits)
Measuring range 0.0 … 600.0 kHz
Resolution 0.1 kHz
Accuracy ±(0.2 % of measured value + 5 digits)
Measuring range 0.000 … 6.000 MHz
Resolution 0.001 MHz
Accuracy ±(0.2 % of measured value + 5 digits)
Overvoltage protection: 1000 V AC/DC Sensitivity: >2 Vrms with a duty cycle between 20 … 80 % and a frequency of <100 kHz>5 Vrms with a duty cycle between 20 … 80 % and a frequency of >100 kHz
Duty cycle
Measuring range 10.0 … 90.0 %
Resolution 0.1 %
Accuracy ±(1.2 % of measured value + 8 digits)
Frequency range: 40 … 10 kHz; Pulse amplitude±5 V with a duration between 100 µs … 100 mS
Capacity
Measuring range 0.00 … 60.00 nF
Resolution 0.01 nF
Accuracy ±(3.0 % of measured value + 20 digits)
Measuring range 0.0 … 600.0 nF
Resolution 0.1 nF
Accuracy ±(3.0 % of measured value + 8 digits)
Measuring range 0.000 … 6.000 µF
Resolution 0.001 µF
Accuracy ±(3.0 % of measured value + 8 digits)
Measuring range 0.00 … 60.00 µF
Resolution 0.01 µF
Accuracy ±(3.0 % of measured value + 8 digits)
Measuring range 0.0 … 600.0 nF
Resolution 0.1 nF
Accuracy ±(3.0 % of measured value + 8 digits)
Measuring range 0 … 6000 µF
Resolution 1 µF
Accuracy ±(3.5 % of measured value + 20 digits)
Measuring range 0.00 … 60.00 mF
Resolution 0.01 mF
Accuracy for reference only
Measuring range 0.0 … 600.0 mF
Resolution 0.1 mF
Accuracy for reference only
Overvoltage protection: 1000 A AC/DC
Temperature measurement thermocouple Type K (connection)
Measuring range -40.0 … 600.0 °C
Resolution 0.1 °C
Accuracy ±(1.5 % of measured value + 3 °C)
Measuring range 600 … 1000 °C
Resolution 1 °C
Accuracy ±(1.5 % of measured value + 3 °C)
Measuring range -40.0 … 600.0 °F
Resolution 0.1 °F
Accuracy ±(1.5 % of measured value + 5.4 °F)
Measuring range 600 … 1800 °F
Resolution 1 °F
Accuracy ±(1.5 % of measured value + 5.4 °F)
Measuring range 245.0 … 600.0 K
Resolution 0.1 K
Accuracy ±(1.5 % of measured value + 3 K)
Measuring range 600 … 1273 K
Resolution 1 K
Accuracy ±(1.5 % of measured value + 3 K)
Overvoltage protection: 1000 A AC/DC
Diode test
Test current <1.5 mA
Maximum voltage 3.3 VDC
Further specifications
Storage space 16 groups with a total storage space
of 100,000 measured values
Clamp diameter horizontal 38 mm / 1.49″
Clamp diameter vertical 63 mm / 2.48″
Clamp opening 45 mm / 1.77″
Protection class IP65
Interface Bluetooth 4.0
Pollution degree 2
Insulation categories CAT IV 600 V, CAT III 1000 V, CAT II 1500 V
Maximum working height 2000 m / 6562 ft
Power supply battery 7.4 V, 1200 mAh Li-ion battery
Power supply charger Primary: 100 … 240 V AC, 50 … 60 Hz
Secondary: 12 V DC, 2 A
Plug connection charger Europa, USA, England, China
Battery status display available
Automatic switch-off switched off, 15, 30 or 60 minutes
Display 2.36″ TFT
Display frequency 3 Hz
Reference conditions 18 … 28 °C, 64 … 82 °F; <80 % RH,
non-condensing
Dimensions 275 x 100 x 45 mm / 10.8 x 3.9 x 1.7″
Weight 481 g / 16.9 oz

1 x Clamp on Tester PCE-CTI 101 x Thermocouple Type-K with adapter1 x Pair of measuring leads 1 x Carrying case1 x Battery charging station1 x Rechargeable battery1 x Instruction manual
