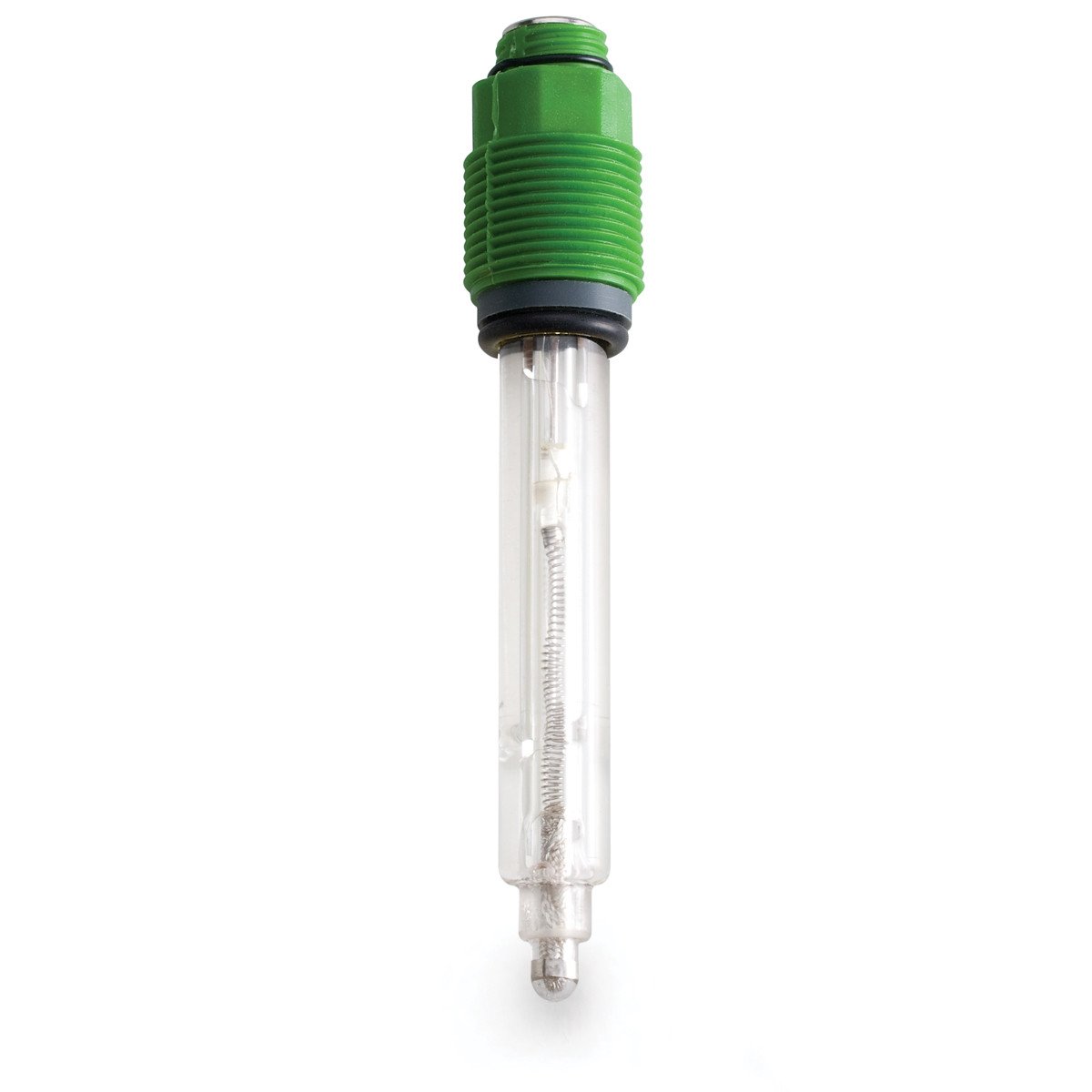

Combination electrode
Single combined electrode that has both sensing and reference components for added convenience.
Platinum sensor
Provides the best response over a wide range of applications.
PTFE junction
The electrode has a unique clog resistant junction that enhances both probe life and accuracy.
Glass body
Glass body electrodes are easier to clean, can withstand high pressure and high temperature applications, and offers high resistance to aggressive chemicals.
T-type connector
Designed by Hanna to take advantage of both PG 13.5 thread and screw cap. The PG 13.5 thread ensures proper in-line installation while the screw cap allows for maximum versatility making it possible to connect a cable of different lengths.
Double junction technology with gel polymer filling
Ensure long electrode life and reliability in harsh environments.
| Specification Name | Detail |
|---|---|
| SKU | HI3190T |
| Tip Shape | Platinum |
| Body | Glass |
| Junction | Double, PTFE |
| Glass Type | (-15 to 100°C/ 5 to 212°F) |
| Electrolyte | Polymer |
| Matching Pin | No |
| Amplifier | No |
| Temperature Sensor | No |
| Max Pressure | 6 bar (87 psi) |
| Connector | T-type |
| Length | 140mm |
| Warranty | 6 months |
