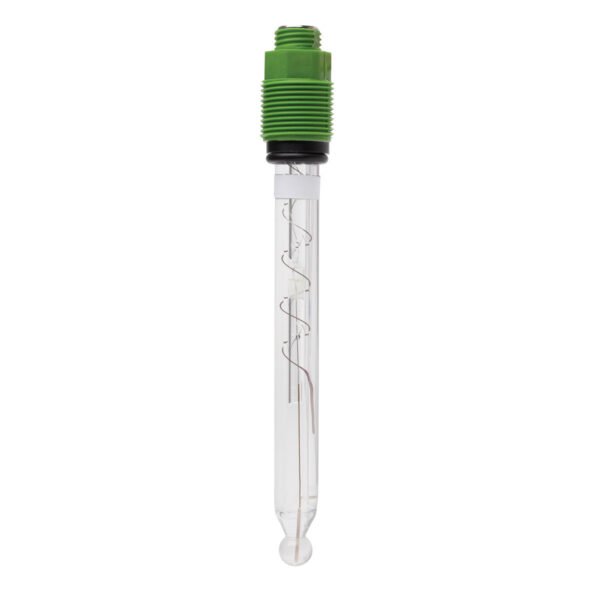

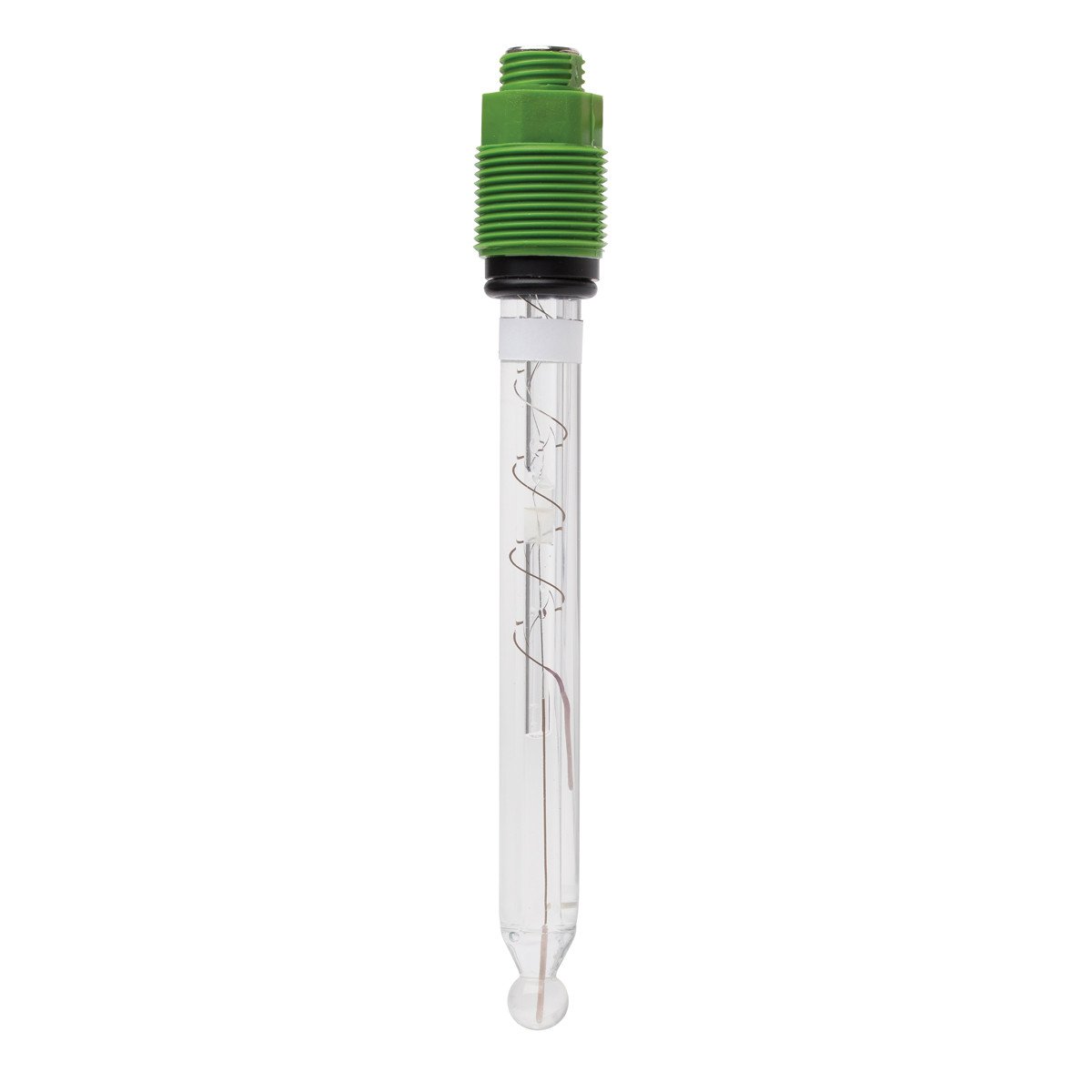

Combination Glass-body pH Electrode – Low Temperature (LT), T-type Connector

SKU : 8c59578fddc7

This combination glass-body pH electrode is designed for industrial applications with features such as a PTFE junction, low temperature glass, and T-type connection. With it’s durable design, you can count on this electrode to stand up to your process environment.

  • pH electrode with exclusive PTFE non-clogging membrane.
  • Low temperature glass for fast stabilization and more accurate results at lower temperatures.
  • Built for everyday, demanding use in industrial applications.
Pemesanan dapat melalui :
SKU 8c59578fddc7 Kategori :
Share this :

Deskripsi



Combination electrode

Single combined electrode that has both sensing and reference components for added convenience.

PTFE junction

The electrode has a unique clog resistant junction that enhances both probe life and accuracy.

Glass body

Glass body electrodes are easier to clean, can withstand high pressure and high-temperature applications, and offers high resistance to aggressive chemicals.

Low temperature glass formulation

Low temperature glass for fast stabilization and more accurate results at lower temperatures.

T-type connector

Designed by Hanna to take advantage of both PG 13.5 thread and screw cap. The PG 13.5 thread ensures proper in-line installation while the screw cap allows for maximum versatility making it possible to connect a cable of different lengths.

Double junction technology with gel polymer filling

Ensure long electrode life and reliability in harsh environments.





Specification NameDetail
SKUHI1191T
BodyGlass
JunctionDouble, PTFE
Glass Type(-15 to 80°C/ 5 to 176°F)
ElectrolytePolymer
Matching PinNo
AmplifierNo
Temperature Sensor No
Max Pressure3 bar (43.5 psi)
ConnectorT-type
Length140mm
Warranty6 months
