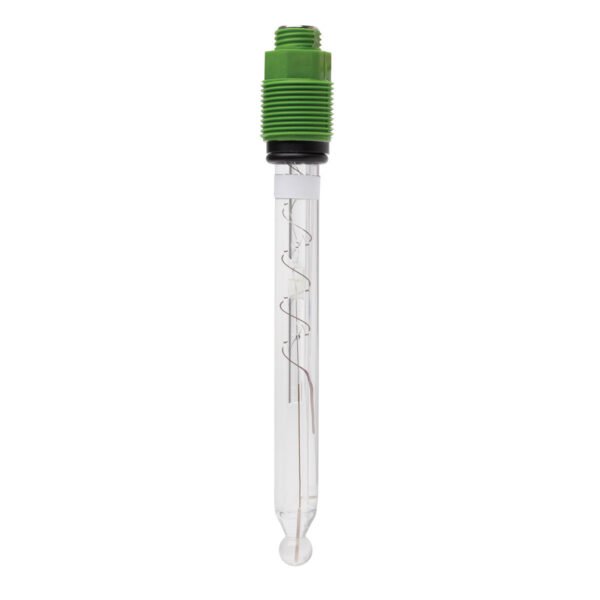

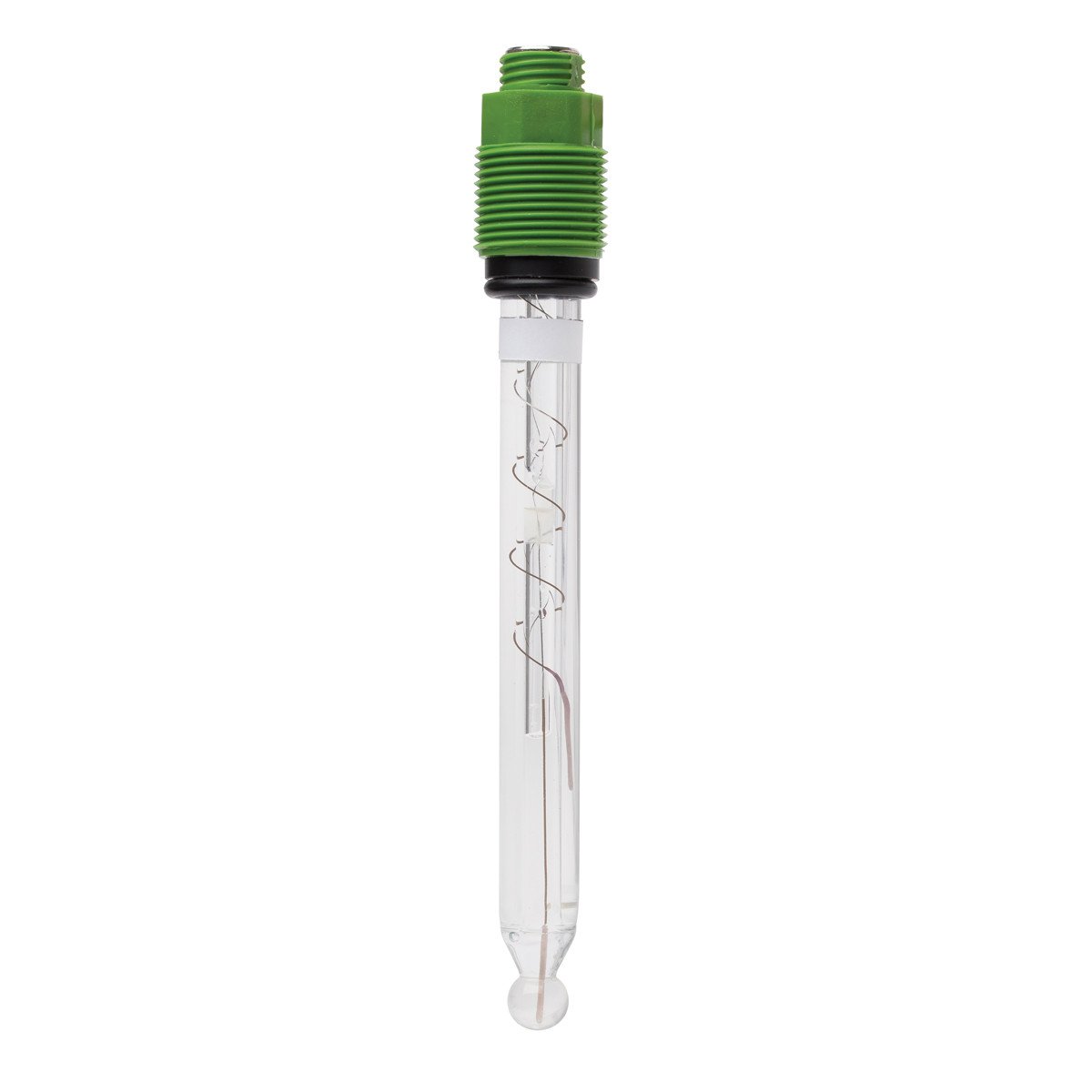

Combination electrode
Single combined electrode that has both sensing and reference components for added convenience.
PTFE junction
The electrode has a unique clog resistant junction that enhances both probe life and accuracy.
Glass body
Glass body electrodes are easier to clean, can withstand high pressure and high temperature applications, and offers high resistance to aggressive chemicals.
Low temperature glass formulation
Low temperature glass for fast stabilization and more accurate results at lower temperatures.
T-type connector
Designed by Hanna to take advantage of both PG 13.5 thread and screw cap. The PG 13.5 thread ensures proper in-line installation while the screw cap allows for maximum versatility making it possible to connect a cable of different lengths.
Double junction technology with gel polymer filling
Ensure long electrode life and reliability in harsh environments.
| Specification Name | Detail |
|---|---|
| SKU | HI1190T |
| Body | Glass |
| Junction | Double, PTFE |
| Glass Type | (-15 to 80°C/ 5 to 176°F) |
| Electrolyte | Polymer |
| Matching Pin | No |
| Amplifier | No |
| Temperature Sensor | No |
| Max Pressure | 3 bar (43.5 psi) |
| Connector | T-type |
| Length | 140mm |
| Warranty | 6 months |
