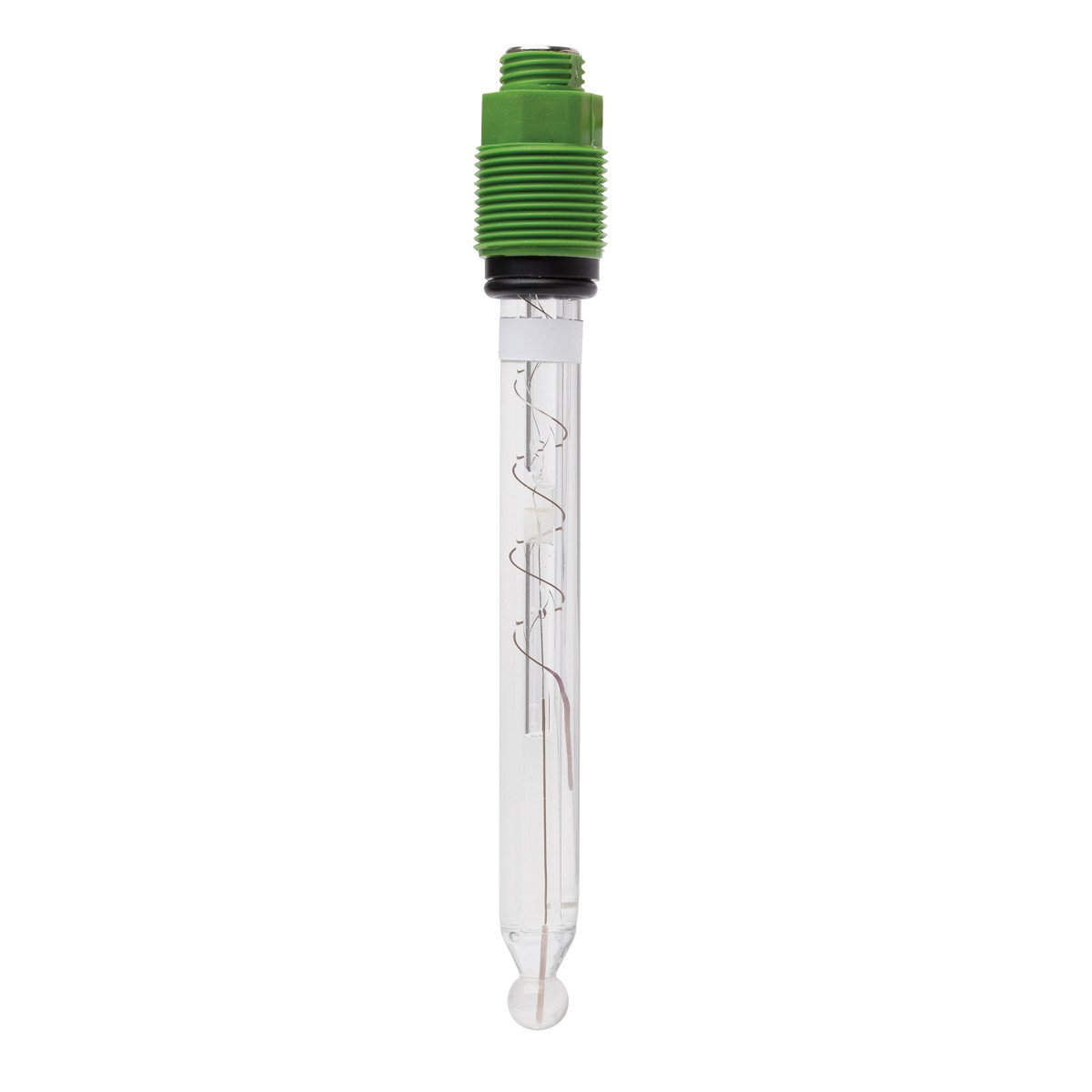

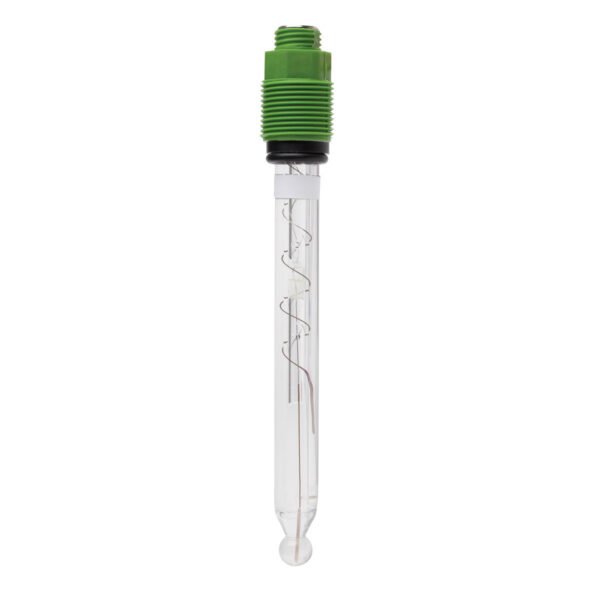

Combination electrode
Single combined electrode that has both sensing and reference components for added convenience.
Ground glass junction
Commonly used junction type because glass with the correct expansion coefficient is easily welded to the glass body allowing for proper electrolyte flow.
Glass body
Glass body electrodes are easier to clean and offer high resistance to aggressive chemicals.
General-purpose glass formulation.
General-purpose glass provides the best response over the entire pH range and can be used for a wide range of applications.
T-type connector
Designed by Hanna to take advantage of both PG 13.5 thread and screw cap. The PG 13.5 thread ensures proper in-line installation while the screw cap allows for maximum versatility making it possible to connect a cable of different lengths.
Double junction technology with gel polymer filling
Ensure long electrode life and reliability in harsh environments.
| Specification Name | Detail |
|---|---|
| SKU | HI1090T |
| Body | Glass |
| Junction | Double, ground glass |
| Glass Type | (-5 to 95°C/ 23-203°F) |
| Electrolyte | Polymer |
| Matching Pin | No |
| Amplifier | No |
| Temperature Sensor | No |
| Max Pressure | 3 bar (43.5 psi) |
| Connector | T-type |
| Length | 140mm |
| Warranty | 6 months |
