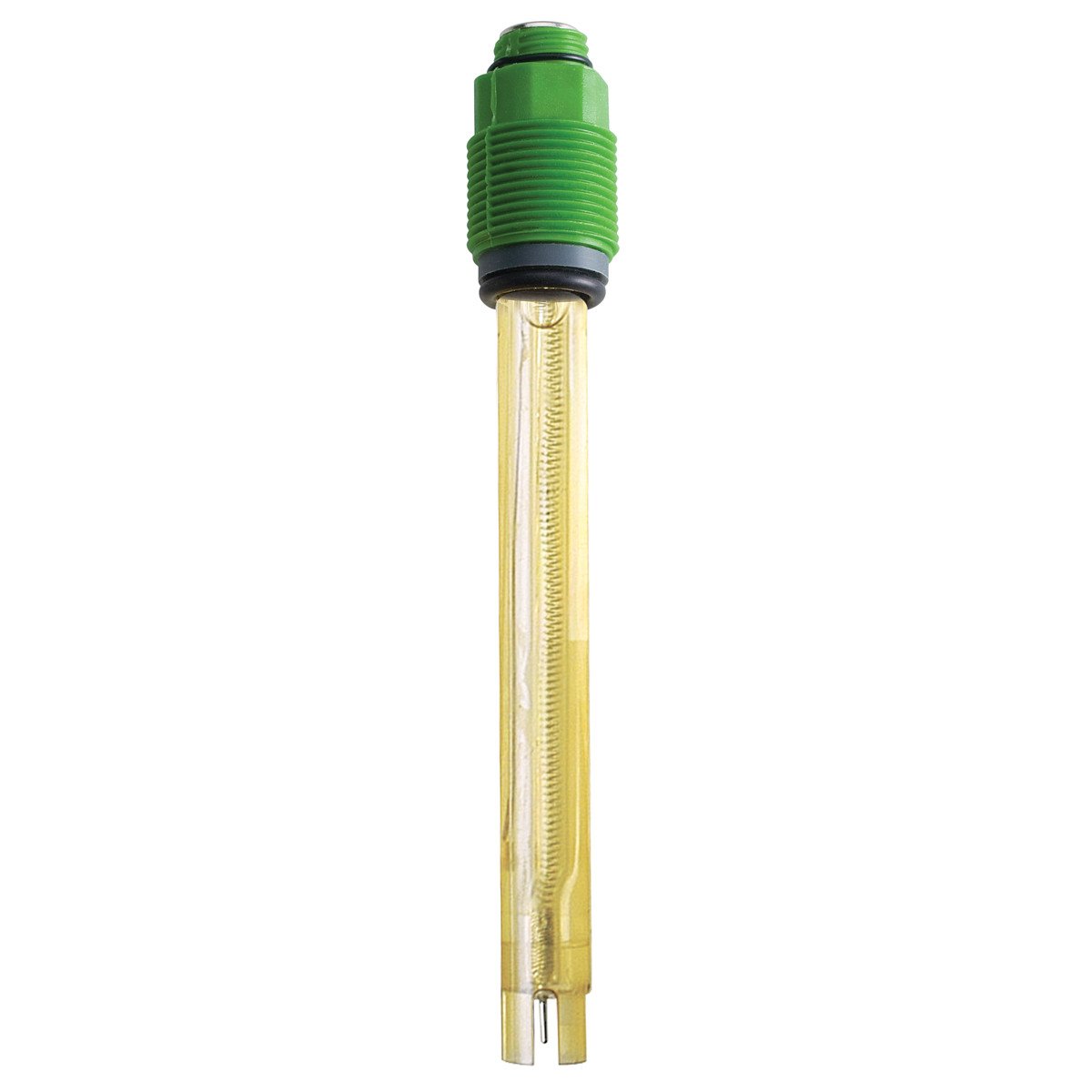

Combination electrode
Single combined electrode that has both sensing and reference components for added convenience.
Platinum sensor
Provides the best response over a wide range of applications.
Cloth junction
Clear the junction by simply extracting 1/8” of the junction from the electrod to expose a new portion, resulting in a renewed junction.
Glass body
Glass body electrodes are easier to clean, can withstand high pressure and high-temperature applications, and offers high resistance to aggressive chemicals.
T-type connector
Designed by Hanna to take advantage of both PG 13.5 thread and screw cap. The PG 13.5 thread ensures proper in-line installation while the screw cap allows for maximum versatility making it possible to connect a cable of different lengths.
Double junction technology with gel polymer filling
Ensure long electrode life and reliability in harsh environments.
| Specification Name | Detail |
|---|---|
| SKU | HI3211T |
| Tip Shape | Platinum |
| Body | Glass |
| Junction | Double, cloth |
| Glass Type | (0 to 80°C/ 32 to 176°F) |
| Electrolyte | Polymer |
| Matching Pin | No |
| Amplifier | No |
| Temperature Sensor | No |
| Max Pressure | 3 bar (43.5 psi) |
| Connector | T-type |
| Length | 140mm |
| Warranty | 6 months |
