- Built-in IR thermometer with laser measures remote surface temperature on motors and rotating parts
- Wide Temperature range of -4 to 600°F (-20 to 315°C)
- Fixed 0.95 emissivity, 6:1 distance to target ratio
- Provides wide RPM (photo and contact) and Linear Surface Speed (contact) measurements
- Accurate to 0.05% with max resolution of 0.1rpm in either photo or contact mode
- Large 0.4″ (5 digit) LCD display
- Non-contact Photo tachometer uses a Laser for greater measuring distance up to 6.5ft (2m)
- Contact tachometer for RPM and surface speed measurements
- Memory stores Min/Max/Last
- Characters on display reverse direction depending on mode
- Double molded housing
- Complete with tips/wheel, four 1.5V AA batteries, reflective tape, and carrying case
Display counts | 99,999 count LCD |
Range (rpm) | Photo: 10 to 99,999/ Contact: 0.5 to 20,000 |
ft/min | 0.2 to 6560 (Contact) |
m/min | 0.05 to 1999.9 (Contact) |
Basic Accuracy | ±(0.05%rdg+1 digit) |
Max rpm Resolution | 0.1rpm |
Temperature (IR) | -4 to 600°F (-20 to 315°C) |
Dimensions | 8.5 x 2.6 x 1.5″ (216 x 66 x 38mm) |
Weight | 10.6oz (300g) |
Thomas No | Mfr No | Description |
---|---|---|

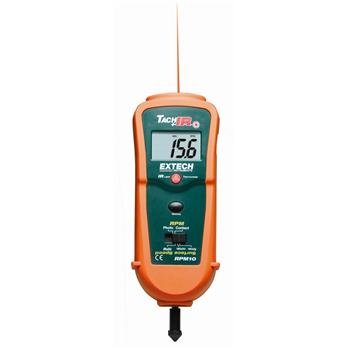

1218L34 | RPM10-NIST | Photo/Contact Tachometer with built-in InfraRed Thermometer with NIST |
