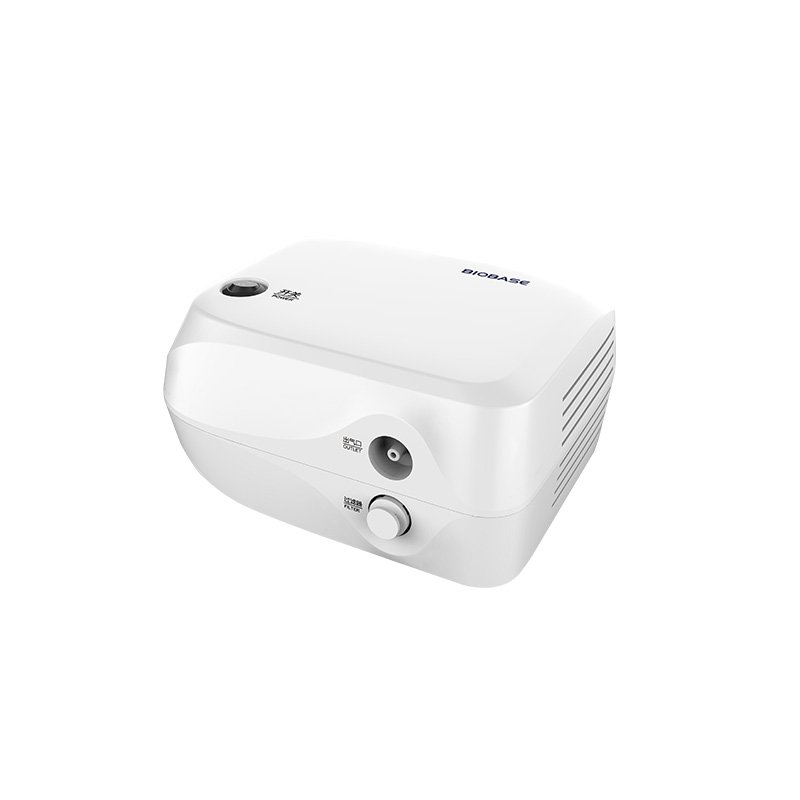

Compression Nebulizer BK-AN-IA
Features:
Technical parameters:
|
Model |
BK-AN-IA |
|
Continuous Working Time |
≥4h |
|
Noise |
≤60dB(A) |
|
Gas Flow Rate |
Compressor pump free air flow ≥10L/min |
|
Drug Cup Capacity |
2ml~8ml |
|
Atmospheric Pressure Range |
86kPa ~ 106KPa |
|
Input Power |
200VA |
|
Ambient Temperature Range |
-5°C~+40° |
|
Working Power Supply |
AC220V 50Hz |
|
Relative Humidity Range |
30%~75% |
|
Spray Rate |
Maximum Atomization Rate ≥0.2ml/min |
|
Residual Liquid Medicine Amount |
≤1.0mL |
|
Immersion Protection Level |
IPXO |
|
Median Diameter of Mist Particle |
2.7μm±25% the diameter of Mist particles less than 5μm accounted for > 65% |
|
Electrical Safety Requirements |
Class II Type B applications |
|
Net Weight |
About 2.1kg |
|
Gross Weight |
2.5kg |
|
Package Weight |
370mm×270mm×220mm（L×W×H） |
