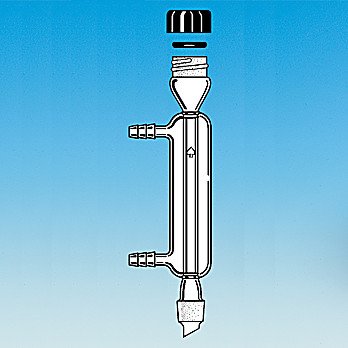

Microscale, water-jacketed condenser used in reflux experiments. With outer joint at top externally threaded to allow an O-RING-CAP-SEAL connection with mating male joints and inner joint at bottom, with drip tip. I.D. of inner tube on code -23 is sufficiently large enough to accept regular size thermometer. Jacket length approximately 80mm. Inlet and outlet water connections are three-ring serrated fittings with middle ring 9.5mm (3/8″) O.D. Hose connections are size A.
| Thomas No | Mfr No | Description |
|---|---|---|
| 1165F77 | 9567-08 | Condenser, jacketed, reflux, microscale, 7/10 top and bottom, cap & o-ring included |
| 1165F78 | 9567-15 | Condenser, jacketed, reflux, microscale, 7/10 top, 14/10 bottom, cap & o-ring included |
| 1165F79 | 9567-19 | Condenser, jacketed, reflux, microscale, 10/10 top and bottom, cap & o-ring included |
| 1165F80 | 9567-23 | Condenser, jacketed, reflux, microscale, 14/10 top and bottom, cap & o-ring included |
