Support SCI/SCE
Adopt the D/8 illuminance observation conditions recommended by the International Commission on Illumination to meet the measurement needs of various industries; specular reflection (SCI) and specular reflection (SCE) measurements are available for a more comprehensive understanding of color data changes. And support SCI + SCE simultaneous fast measurement, the test time does not exceed 4 seconds

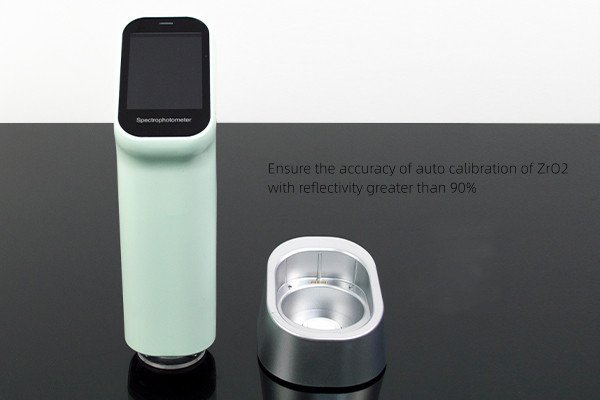

Automatic calibration, stable measurement
With the calibration whiteboard at the bottom of the instrument, it is self-processing and requires no human intervention
Good repeatability with a measurement stability of 0.08
Technical Parameter
| Model | CS-410 | CS-411 | CS-412 |
Color | Green | ||
Geometry | D/8 (diffused illumination,8 degree viewing)SCI (specular component included),SCE (specular component excluded)
| ||
Repeatability
| Chromaticity Value:Standard deviation ΔE*ab≤ 0.04； Average:dE*ab≤ 0.05 ；Max:dE*ab≤ 0.08 (when a white tile is measured 30 times at 5 seconds interval) | ||
Inter-instrument Agreement
| ΔE*ab≤0.4
| ||
Display accuracy | 0.01 | ||
Test Aperture/ Illuminated Area
| MAV:Φ8mm/11mm | SAV:Φ4mm/6mm | MAV:Φ8mm/11mm+SAV:Φ4mm/6mm |
Color Space and Indices | Reflectance, CIE-Lab, CIE-LCh, Hunter Lab, CIE-Luv, XYZ, Yxy, RGB, Color Difference (ΔE*ab, ΔE*cmc, ΔE*94, ΔE*00), Whiteness Index (ASTM E313-00, ASTM E313-73, CIE/ISO, AATCC, Hunter, Taube Berger Stensby), Yellowness Index (ASTM D1925, ASTM E313-00, ASTM E313-73), Blackness Index(My,dM), Staining Fastness, Color Fastness, Tint (ASTM E313-00), Color Density CMYK(A,T,E,M), Metamerism Index Milm, Munsell, Opacity, Color Strength
| ||
Illuminants | A,B,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30,U35,DLF,NBF,TL83,TL84 | ||
Support Color matching software | No | ||
Lighting source | LED | ||
Camera | No | ||
Calibration | Smart Auto Calibration | ||
Software support | Windows | ||
Accuracy Guarantee | Pass National Metrology Level I | ||
Observer | 2°，10° | ||
Sphere diameter | 40mm | ||
Standards compliant | Standards compliant CIE No.15，GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7 | ||
Spectroscopic method | Integrated Optics | ||
Sensor | CMOS sensor | ||
Wavelength interval | 10nm | ||
Wavelength range | 400-700nm | ||
Reflectance | 0-200% | ||
Reflectivity Resolution | 0.01% | ||
Measure time | About 1 s | ||
Interface | USB | ||
Screen | IPS full color screen, 2.4 inches | ||
Battery | Rechargeable, 8,000 times continuous tests, 3.7V/3000mAh
| ||
Light source life | 1 million times in 10 years | ||
Language | Chinese, English | ||
Storage | 100 pieces of target | ||
（Note: 1. The main difference between CS-410/411/412 models is the size of the caliber. 2. The illumination aperture is the actual aperture size of the instrument.）
