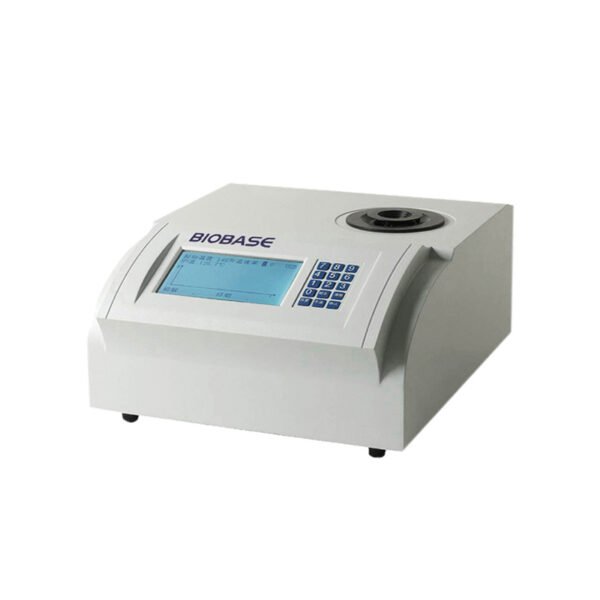

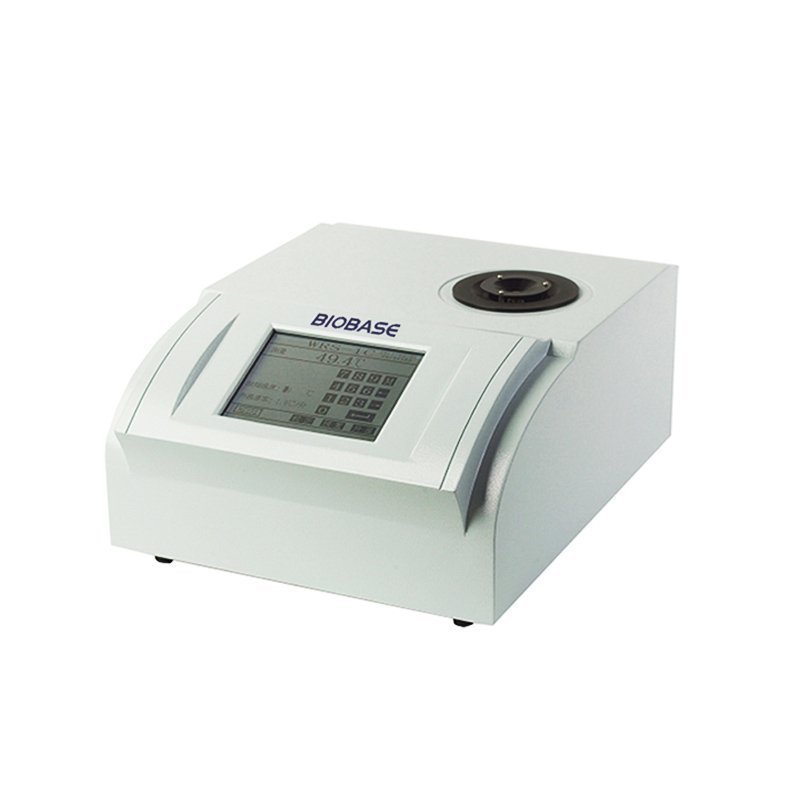

Digital Melting Point Apparatus
Features:
| Features for BMP-2C/1C: | Features for BMP-1B: |
| * PID&PWM controller. | * Photoelectric test. |
| * LCD touch screen for BMP-2C/BMP-1C. | * LCD display. |
| * USB & RS232 interface. | * RS232 interface. |
| * The melting curve can be recorded automatically. | * Real time melting curve. |
| * It can calculate average value of initial and final.melting points automatically. |
Model:
| Model | BMP-2C | BMP-1C | BMP-1B |
| Measuring Range | RT~360°C | RT〜400°C | RT〜320°C |
| Resolution | 0.1°C | ||
| Linear heating-up Rate | 0.1°C~20°C/min | 0.2, 0.5, 1.0, 1.5, 2.0, 3.0, 4.0, 5.0°C/min | |
| Temperature Accuracy | 0.4°C (≤200°C), 0.7°C(>200°C) | ||
| Repeatability | 0.3°C | ||
| Capillary Size | φ1.4mm(outside diameter),φ1.0mm(inside diameter), 80mm (height) | ||
| Sample Loading Height | 3~5mm | >3mm | |
| Data Storage | 1000 sets | / | |
| Optional Accessories | Printer | ||
| Power Supply | AC110/220V±10%, 50/60HZ | ||
| External Size(W*D*H) | 410*290*110mm | 330*290*110mm | 330*290*110mm |
| Package Size(W*D*H) | 576*428*306mm | 492*428*305mm | 496*428*306mm |
| Gross Weight | 13kg | 11kg | |
