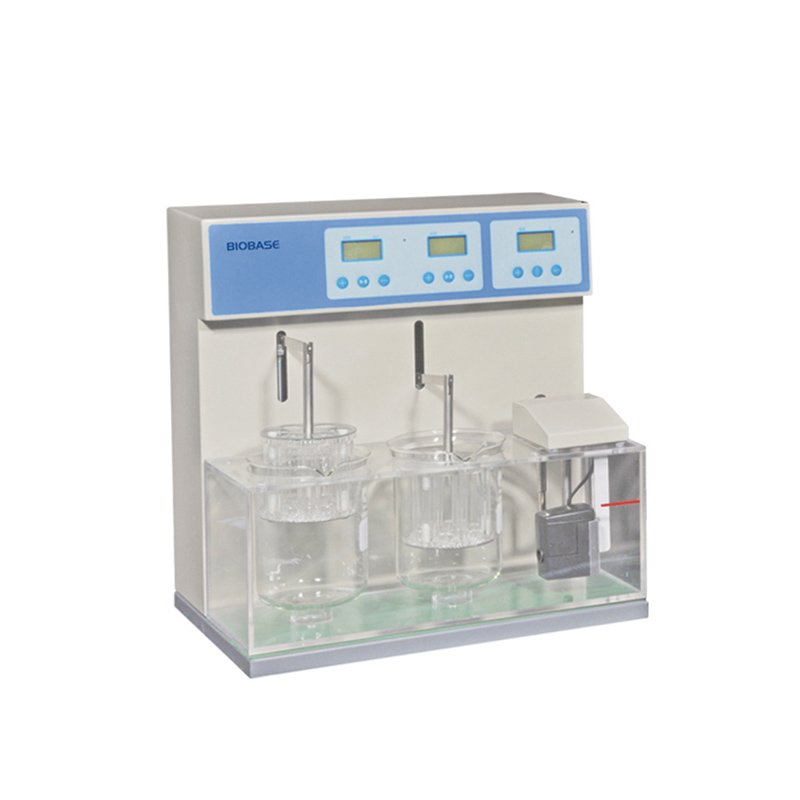

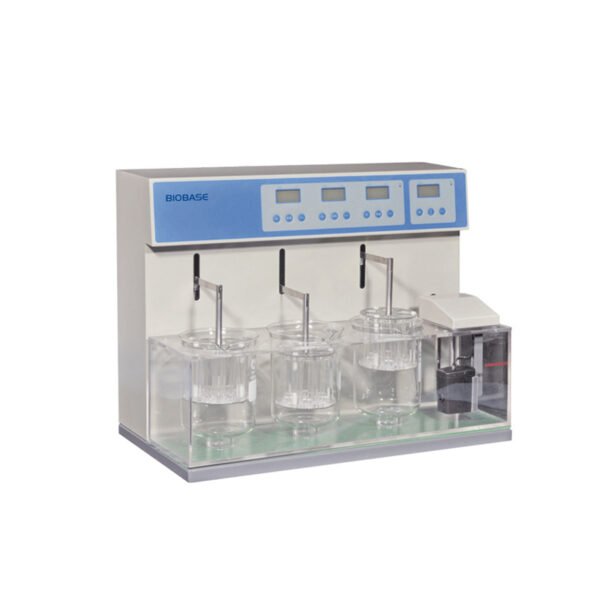

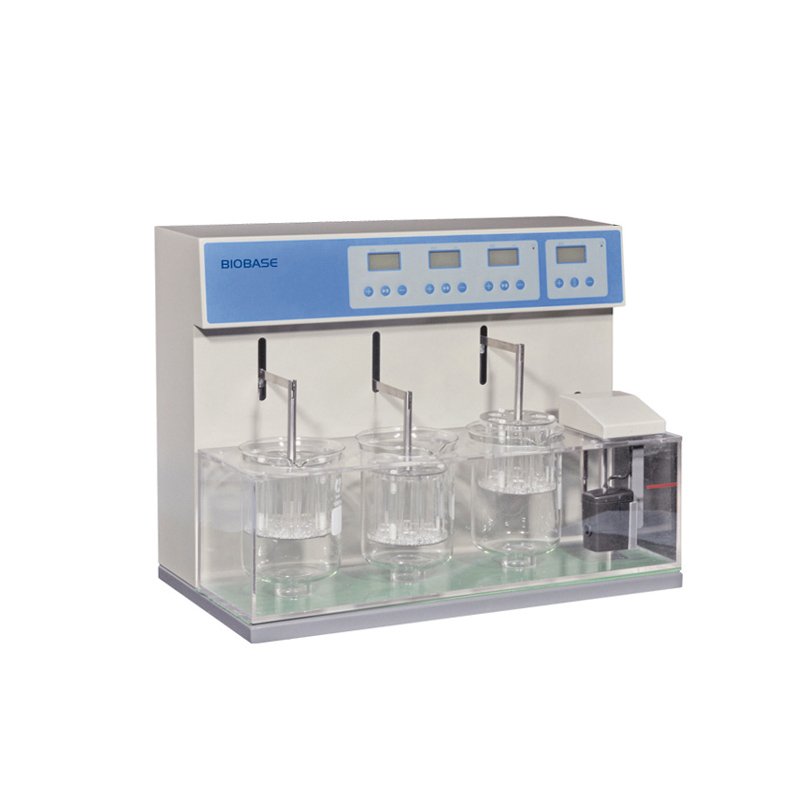

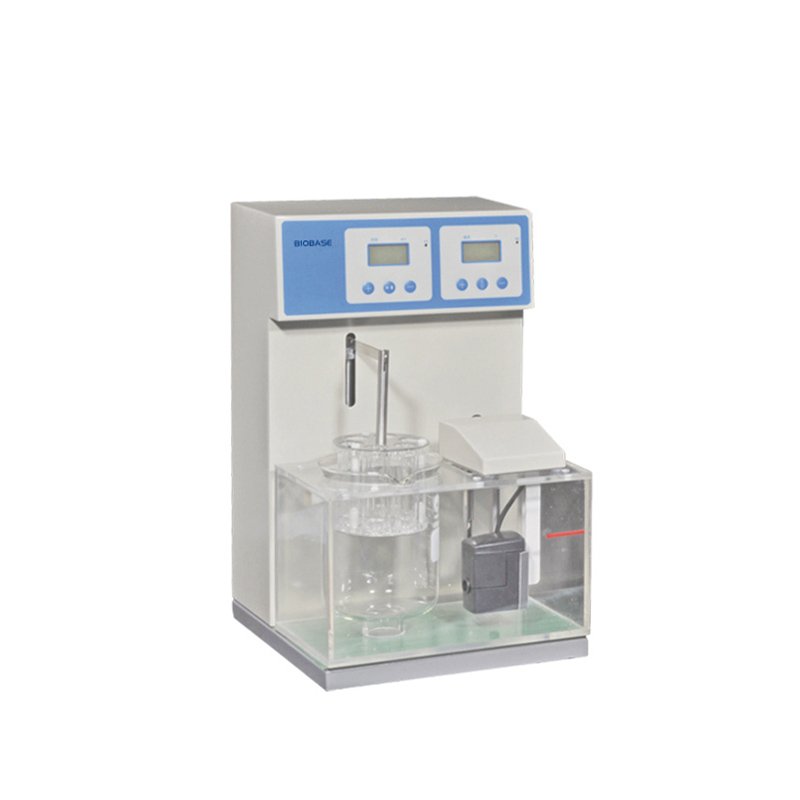

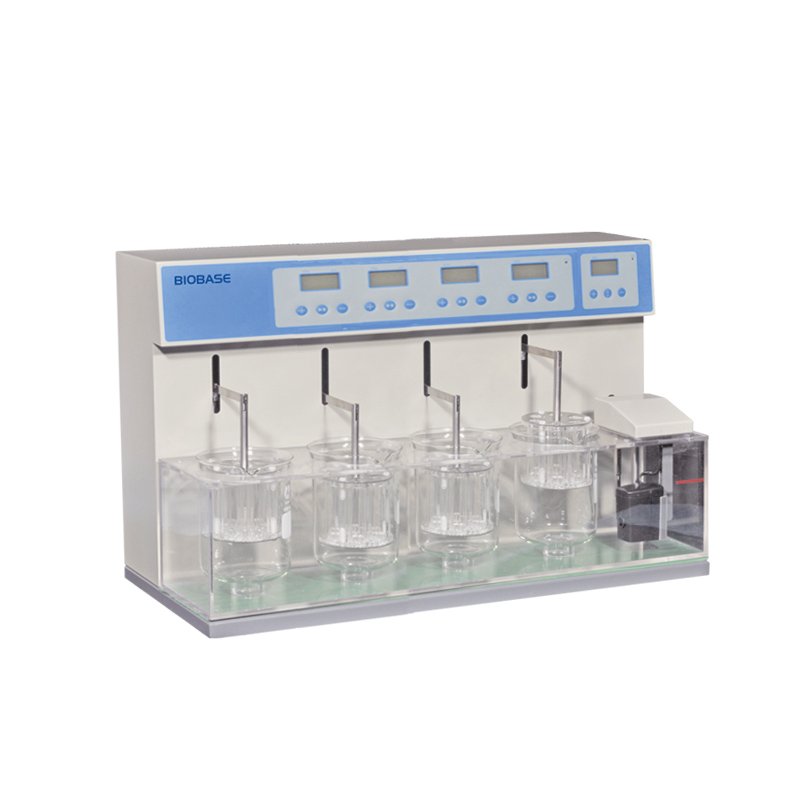

Disintegration Tester BJ Series
Features:
* Auto-diagnose, auto-alarm.
* Stainless steel basket and paddle.
* Micro processor and LCD Display.
* Each beaker can work alone.
* Water circulating in the bath to keep the temperature conformity with magnetic pump.
Technical Parameters:
Model | BK-BJ1 | BK-BJ2 | BK-BJ3 | BK-BJ4 |
Basket | 1pc | 2 pcs | 3 pcs | 4 pcs |
Beaker Capacity | 1000ml | |||
Basket Lifting Frequency | 30~31 times/min | |||
Stroke Height | 55±1mm | |||
Minimum Spacing | 25±2mm | |||
Mesh Size | Standard 2mm | |||
Temp. Range | RT~50°C | |||
Temp. Precision | ±0.3°C | |||
Timing Range | 1~900min | |||
Time Precision | ±0.5min | |||
Working Time | >24h | |||
Power Consumption | 600W | |||
Power Supply | AC220V/110V±10%, 50/60HZ | |||
External Size (W*D*H) mm | 260*300*440 | 400*320*440 | 540*320*440 | 600*320*440 |
Package Size (W*D*H) mm | 360*400*530 | 500*395*530 | 640*400*530 | 700*400*530 |
Gross Weight (kg) | 12 | 18.5 | 23 | 28 |
