Features:
* Microcomputer controller, high stability and precision.
* LCD display, simple interface. Easy to set up and use.
* Different kinds of modules are available.
* Over-heating protection device, safe and reliable.
* Multi periods program control, programmable.
* Automatic fault detection and buzzer alarm function.
* Temperature deviation calibration function.
Technical Parameters:
Model | BK-HW100D | BK-HW100 | BK-HW100G |
Temp Setting Range | 10°C–105°C | 0°C-100°C | |
Temp Control Range | RT + 5°C–100°C | 5°C-100°C(TEC) | |
Time Setting Range | 1 min-99h59min | ||
Temp Fluctuation | ≤±0.5°C | ||
Module Temp Uniformity | ≤±0.5°C | ||
Temp Control Accuracy | ≤±0.3°C | ||
Temp Display Accuracy | 0.1°C | ||
Heating Rate | ≤12min (20°C-100°C) | ≤15min (20°C-100°C) | |
Cooling Speed | / | ≥8°C/min (from 100°C to 25°C) | |
Temp Deviation Correction | Yes | ≥1.3°C/min (from RTto RT-20°C) | |
Program Setting | 5 program periods | ||
Shaking Speed | / | 200-1500r/min | |
Storage | 10 programs | ||
Alarm | Power-on self-test, over-temperature protection, fault alarm | ||
Consumption | 150W | ||
Power | Standard:AC220V, 50/60Hz;Optional:110V, 60Hz(customizable) | ||

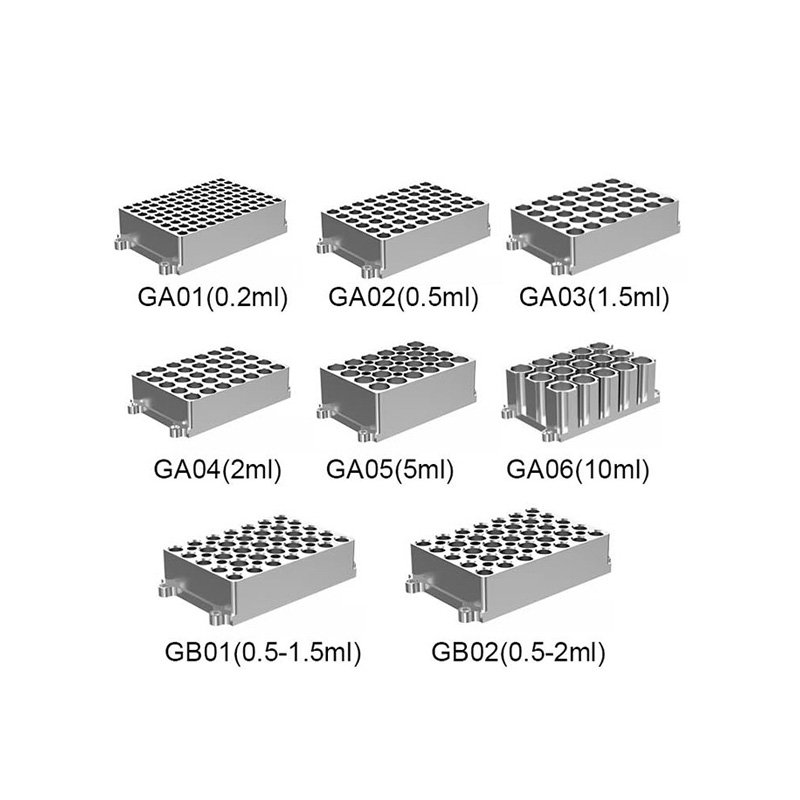

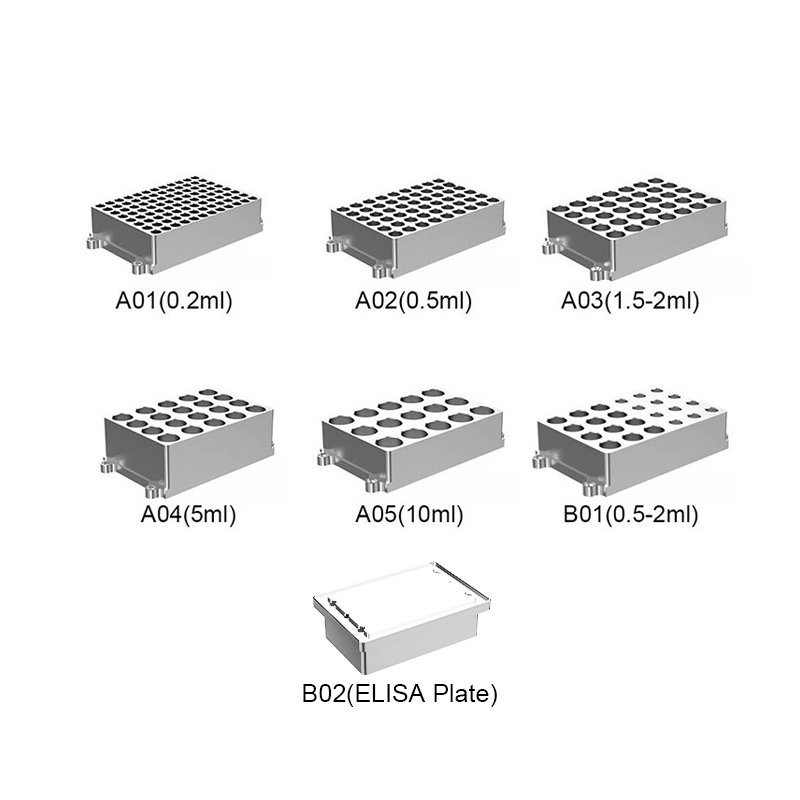

Standard Module | B01*1(0.5-2ml) | GB01*1 (0.5-1.5ml) | |
Package Size(mm) | 375*290*310 | ||
Gross Weight(kg) | 6 | 8.5 | 10.5 |
