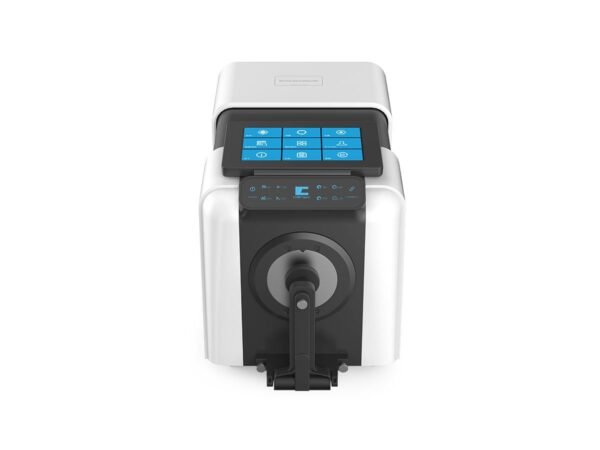

Model

DS-36D

DS-37D

DS-39D

Lighting/measuring conditions

SCI（Contains specular reflected light）/ SCE（not contain specular reflected light）measure at same time.

Compliance standards：CIE No.15、GB/T 3978、GB 2893、GB/T 18833、ISO7724/1、DIN5033 Teil7、

JIS Z8722 Condition C、ASTM E1164、ASTM-D1003-07

Transmission：d/0（diffuse illumination, vertical reception）

Sensor

Differential spectrum engine

Spectroscopic method

Concave grating

Integrating sphere diameter

152mm

Wavelength range

360nm-780nm

Wavelengthinterval

10nm

Reflectance measurement range

0-200%，resolution 0.01%

Lighting source

Pulsed xenon lamps andLED

Ultraviolet measurement

IncludesUV、400nmcutoff、420nmcutoff、460nmcutoff

Measuring time

Single mode<2s

Lighting/measurin g calibers

Reflection：XLAV Φ25.4mm/Φ30mm；LAVΦ15mm/Φ18mm；MAVΦ8mm/Φ11mm；SAVΦ3mm/Φ6mm

Users can customize the calibre, and the calibre switch is automatically recognized

Transmission：Φ17mm/Φ25mm

Transmission measurement specification

Sample height and thickness:height is not limited, thickness≤50mm

Repeatability **

Spectral reflection/transmittance ≤0.1%

Spectral reflection/transmittance ≤0.1%

Inter-Instrument Agreement**

XLAV ΔE*ab 0.15

XLAV ΔE*ab 0.08

Long-term repeatability***

Standard observer

2°Standard observer and 10°Standard observer

Viewing light source

A,B,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30,U35,DLF,NBF,TL83,TL84,ID50,ID65,

LED-B1,LED-B2,LED-B3,LED-B4,LED-B5,LED-BH1,LED-RGB1,LED-V1,LED-V2,LED-8

Language

Simplified Chinese,English, Traditional Chinese, Russian, Spanish, Portuguese, Japanese, Thai, Korean,German, French, Polish

Display content

Spectral data,Spectrogram, chromaticity data, chromaticity Data, chromaticity map, Pass/Fail judgment, Simulation color, Color evaluation, fog, liquid chromaticity, Color bias

Color space

CIE LAB,CIE LUV,LCh,Hunter Lab,Yxy,XYZ,Musell,s-RGB,βxy

Chroma index

WI(ASTM E313-20,ASTM E313-73,CIE,AATCC,Hunter,Taube,Berger Stensby),YI(ASTM D1925,ASTM E313-20,ASTM E313-73),

Tint(ASTM E313-20),Isochromatic index Milm,color fastness,color changing fastness,ISO brightness,R457,A density,T density,E density,M density,APHA/Hazen/

Pt-Co((platinum-cobalt index),Gardner(Gardner Index),Saybolt(SeibertIndex),Astm color,fog, total transmittance, covering power, force, intensity

Color difference formula

ΔE*ab,ΔE*CH,ΔE*uv,ΔE*cmc,ΔE*94,ΔE*00,ΔEab(Hunter),555color tone classification

Storage

8GB

Screen size

7-inch capacitive touch screen

Operating system

Android

Power source

Dc regulated power supply

Operating temperature and humidity

5～40°C,relative humidity 80%(35°C)below no condensation

Storage temperature and humidity

-20～45°C,relative humidity 80%(35°C)below no condensation

Accessories

Power adapter,USB cable, transmission fixture, software U disk, black cavity, white board, green board,30mm aperture,

18mm aperture,11mm aperture,6mm aperture,support table,cuvette,damping handle

Optional accessories

Heating transmission jig(including control circuit),vertical bracket,pneumatic jacking rod(includingcontrol circuit),small sample holding accessories,reflection cupping plate,fiber test box,

micro transmission jig, rod box, European standard plug, American standard plug

Port

RS-232、USB、USB-B、Bluetooth

Camera positioning

Ultra HD camera（1400dpi）

Automatic calibration

√（Can greatly improve the long-term repeatability of the instrument）

Fluorescence calibration

√（Can automatically adjustthe UV intensity，and ensure that the value of the instrument is highly consistent with that of other imported instruments when measuring materials containing fluorescence）

Brightness calibration

√（Through the brightness calibration algorithm, the real color of ultra-dark samples is restored）

Others

The instrument can be measured sideways,up and down (using accessories); Automatic temperatureand humidity compensation function; PC side software save sample image function
