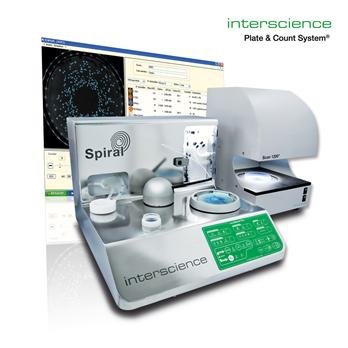

The new easySpiral® patented technology, exclusively developed by interscience, allows the automatic plating of your sample on a Petri dish in only 25 seconds with a decreasing concentration (sensitivity: from 30 to 1×107 CFU/ml).
A completely new architecture with a revolutionary rotating arm allows a full cycle in 25 seconds (disinfection, sample-taking and plating). All the liquid flows are visible. No exterior maintenance is needed.
easySpiral® is equipped with an innovative unique stylus cleaning device, which guarantees a perfect cleaning and disinfection of the stylus, with no risk of cross-contamination.
Benefits
- Incredible savings: Save up to 75% in time, consumables and bench space
- Fast: Full plating cycle in 25 seconds and counting in 1 click
- Reliable: 98% repeatable and reproducible results
- Full traceability: Automatic data saving and reporting
Applications
- Microbiological tests
- Food control
- Bacterial cinetics
- MIC control of antibiotics
- Challenge test: cosmetics control
- Pharmaceutical control
| easySpiral® | easySpiral® Pro | |
| Reference | 1199Q76 | 1199K31 |
| Syringe capacity | 1000 μl | 1000 μl |
| Preset Volume dispensed | 50 or 100 μl 50, | 100 or 200 μl |
| Counting range | 300 to 1.3 x 105 CFU/ml | 30 to 1 x 107 CFU/ml |
| Full cycle time | 25 seconds | 25 seconds |
| Overflow technology | 8 bars pressure | 8 bars pressure |
| Cleaning autonomy | 600 cycles (2l bottles) | 600 cycles (2l bottles) |
| Successive plating capacity with the same sample | 10 Petri dishes (50 μl) | 10 Petri dishes (50 μl) |
| Automatic monthly cleaning | yes | yes |
| 90 mm Petri dish | yes | yes |
| 150 mm Petri dish | — | yes |
| Exponential deposition mode | yes | yes |
| Circle deposition mode | yes | yes |
| Uniform deposition mode | — | yes |
| Excel™ export traceability | — | yes |
| USB programmable volume | — | from 10 to 1000 μl |
| Dimensions | 38 x 41 x 29 cm | 38 x 41 x 29 cm |
| Thomas No | Mfr No | Description |
|---|---|---|
| 1199Q76 | 412000 | EasySpiral Automatic Sample Plater, 90/240V – 50/60Hz |
| 1199K31 | 413000 | EasySpiral Pro Automatic Sample Plater, 90/240V – 50/60Hz |
