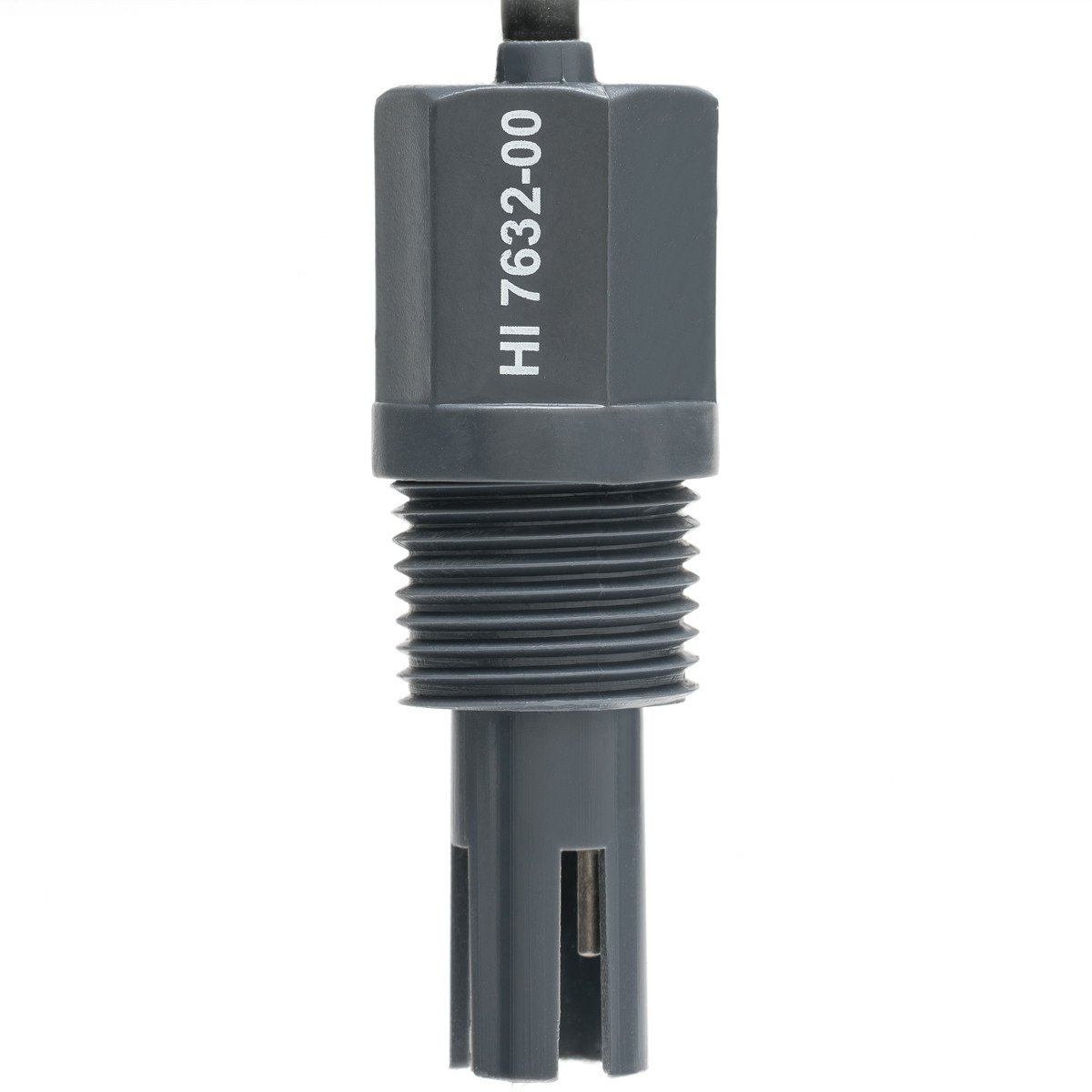

Two-Pole Probe
The HI7632-00 is an amperometric sensor, utilizing two-pole technology to achieve accurate EC and TDS measurements. An alternating voltage is applied to the two electrodes and the generated current is measured. The HI7632-00 is compatible with the following mini controllers that measure in the high range:
EC:
TDS:
Internal Temperature Sensor
The integrated temperature sensor of the HI7632-00 probe is crucial for accurate EC and TDS measurements. Changes in temperature of a solution will change the ion mobility, which will influence the measurement. For this reason it is important that a fast and stable temperature measurement be taken in order to provide an accurate temperature compensated EC and TDS reading.
Threaded Connection
The ½” NPT threaded connection of the HI7632-00 allows for insertion mounting into a common “T” fitting without the need for additional hardware.
Multiple Cable Lengths
The HI7632-00 is available with varying lengths of cable based on your specific requirements.
HI7632-00 comes with 2 meters (6.6 feet) of cable attached.
HI7632-00/6 comes with 6 meters (19.7 feet) of cable attached.
| Specification Name | Detail |
|---|---|
| SKU | HI7632-00 |
| Range | 0.00 to 10.00 mS/cm |
| Accuracy (@25?C/77?F) | ±2% F.S. |
| Recommended Operating Temperature | automatic from, 5 to 50?C (41 to 122?F) with ?=2%/?C |
| Tip / Shape | 2 electrode probe |
| Body Length | 64 mm (2.5″) |
| Cable | 2 m (6.6′) and 6 m (19.7′) based on selection |
| Recommended Use | controllers, process equipment |
| Connection | ½” threaded male NPT |
