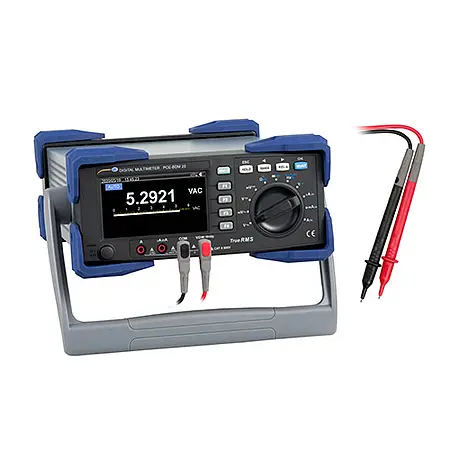

Electrical Tester PCE-BDM 20

Description

Multimeter digital PCE-BDM 20 adalah alat ukur serbaguna yang dirancang khusus untuk penggunaan di tempat kerja tetap, ideal untuk berbagai kebutuhan pengukuran industri. Alat ini menawarkan beragam fungsi pengukuran, termasuk arus, tegangan, resistansi, suhu, dan konduktivitas, dengan akurasi tinggi yang memenuhi standar kalibrasi industri. Dengan antarmuka USB yang terintegrasi, multimeter ini memungkinkan koneksi langsung ke PC untuk analisis data real-time melalui perangkat lunak yang disertakan, memudahkan pengguna dalam memantau dan mengevaluasi hasil pengukuran secara grafis atau tabel.

Salah satu fitur unggulan PCE-BDM 20 adalah fungsi PASS/FAIL yang sangat berguna dalam kontrol kualitas di industri manufaktur. Pengguna dapat menetapkan rentang target untuk setiap parameter pengukuran, dan alat akan secara otomatis menampilkan status “PASS” atau “FAIL” berdasarkan hasil pengukuran aktual. Fitur ini sangat efisien untuk inspeksi cepat komponen elektronik atau proses produksi, mengurangi risiko human error. Selain itu, HOLD function memungkinkan pembekuan tampilan hasil pengukuran untuk pencatatan yang lebih akurat.

Multimeter ini juga mendukung pengukuran suhu secara simultan menggunakan dua termokopel tipe K, menjadikannya solusi ideal untuk aplikasi yang memerlukan pemantauan suhu ganda. Desainnya yang ergonomis dengan pegangan yang dapat disesuaikan memastikan kenyamanan operator selama penggunaan jangka panjang. Perlindungan tepi berlapis karet pada bodi alat juga meningkatkan daya tahan dan melindungi dari kerusakan akibat benturan atau gesekan di lingkungan kerja yang sibuk.

Dalam aplikasi industri, PCE-BDM 20 cocok digunakan di berbagai sektor, mulai dari manufaktur elektronik hingga maintenance peralatan listrik. Kemampuannya untuk terhubung dengan PC memungkinkan integrasi dengan sistem kontrol kualitas berbasis software, memudahkan pelacakan data dan pembuatan laporan. Alat ini juga dilengkapi dengan kabel IEC, adaptor termokopel, dan klip buaya, sehingga siap digunakan langsung tanpa perlu aksesori tambahan.

Dengan kombinasi fitur canggih dan kemudahan digunakan, multimeter digital ini menjadi investasi berharga bagi profesional yang membutuhkan alat ukur andal dan multifungsi. Instruksi manual yang jelas dan perangkat lunak pendukung yang user-friendly memastikan pengguna dapat memaksimalkan fungsi alat dengan cepat. PCE-BDM 20 tidak hanya meningkatkan efisiensi kerja tetapi juga menjamin konsistensi hasil pengukuran dalam berbagai kondisi operasional. Untuk informasi lebih lanjut dan konsultasi gratis mengenai produk ini, hubungi kami di WhatsApp 6285717112222 atau email contact@alat-test.com. Kami menyediakan pengiriman cepat dengan kualitas terjamin dan harga kompetitif.

– Table multimeter with reinforced housing – USB interface for PC connection – PASS / FAIL function for quality control – extensive measuring functions – Relate the measured value – Measured value with bar graph display

AC voltage
Measuring range	Resolution	Accuracy
60 mV	0.001 mV	± (0.6% 60 digits) @ 45 Hz … 1 kHz
600 mV	0.01 mV	± (0.3% 30 digits) @ 45 Hz … 1 kHz
6V	0.0001V	± (0.3% 30 digits) @ 45 Hz … 1 kHz
60V	0.001V	± (0.3% 30 digits) @ 45 Hz … 1 kHz
600V	0.01V	± (0.4% 30 digits) @ 45 Hz … 1 kHz
1000V	0.1V	± (0.6% 30 digits) @ 45 Hz … 1 kHz
Input impedance:> 10MΩ
Surge protection: 1000V
Display: True RMS in the measuring range of 10 … 100% of the respective measuring range

DC voltage
Measuring range	Resolution	Accuracy
60 mV	0.001 mV	± (0.025% + 20 digits)
600 mV	0.01 mV	± (0.025% + 5 digits)
6V	0.0001V	± (0.025% + 5 digits)
60V	0.001V	± (0.025% + 5 digits)
600V	0.01V	± (0.003% + 5 digits)
1000V	0.1V	± (0.003% + 5 digits)
Input impedance:> 10MΩ
Surge protection: 1000V

AC voltage + DC voltage
Measuring range	Resolution	Accuracy
60 mV	0.001 mV	± (1% + 80 digits) @ 50 Hz … 1 kHz
600 mV	0.01 mV	± (1% + 80 digits) @ 50 Hz … 1 kHz
6V	0.0001V	± (1% + 80 digits) @ 50 Hz … 1 kHz
60V	0.001V	± (1% + 80 digits) @ 50 Hz … 1 kHz
600V	0.01V	± (1% + 80 digits) @ 50 Hz … 1 kHz
1000V	0.1V	± (1.2% + 80 digits) @ 50 Hz … 1 kHz
Input impedance:> 10MΩ
Surge protection: 1000V
Display: True RMS in the measuring range of 10 … 100% of the respective measuring range

Alternating current
Measuring range	Resolution	Accuracy
600 µA	0.01 µA	± (0.6% + 40 digits) @ 45 Hz … 1 kHz
6000 µA	0.1 µA	± (0.6% + 20 digits) @ 45 Hz … 1 kHz
60-mA	0.001-mA	± (0.6% + 40 digits) @ 45 Hz … 1 kHz
600-mA	0.01-mA	± (0.6% + 20 digits) @ 45 Hz … 1 kHz
10 A	0.001 A	± (1% + 20 digits) @ 45 Hz … 1 kHz
Display: True RMS in the measuring range of 10 … 100% of the respective measuring range
Overload protection: µA and mA Measurement: Fuse F 0.6 A 1000V Ø6 x 32 mm
10 A measurement: F 11 A 1000V Ø 10 x 38 mm
When measuring almost 20 A, the measurement time should not be longer than 30 seconds.
After the measurement, the measuring device must rest for approx. 10 minutes.

Direct current
Measuring range	Resolution	Accuracy
600 µA	0.01 µA	± (0.8% + 20 digits)
6000 µA	0.1 µA	± (0.8% + 10 digits)
60-mA	0.001-mA	± (0.8% + 20 digits)
600-mA	0.01-mA	± (0.15% + 10 digits)
10 A	0.001 A	± (0.5% + 10 digits)
Overload protection: µA and mA Measurement: Fuse F 0.6 A 1000V Ø6 x 32 mm
10 A measurement: F 11 A 1000V Ø10 x 38 mm
A measurement of almost 20 A should not take longer than 30 seconds.
After the measurement, the measuring device must rest for approx. 10 minutes.

AC + DC
Measuring range	Resolution	Accuracy
600 µA	0.01 µA	± (0.8% + 40 digits) @ 50 Hz … 1 kHz
6000 µA	0.1 µA	± (0.8% + 20 digits) @ 50 Hz … 1 kHz
60-mA	0.001-mA	± (0.8% + 40 digits) @ 50 Hz … 1 kHz
600-mA	0.01-mA	± (0.8% + 20 digits) @ 50 Hz … 1 kHz
10 A	0.001 A	± (1.2% + 20 digits) @ 50 Hz … 1 kHz
Display: True RMS in the measuring range of 10 … 100% of the respective measuring range
Overload protection: µA and mA Measurement: Fuse F 0.6 A 1000V Ø6 x 32 mm
10 A measurement: F 11 A 1000V Ø10 x 38 mm
A measurement of almost 20 A should not take longer than 30 seconds.
After the measurement, the measuring device must rest for approx. 10 minutes.

Resistance
Measuring range	Resolution	Accuracy
600 Ω	0.01Ω	In REL mode: ± (0.05% + 10 digits)
6 kΩ	0.0001 kΩ	± (0.05% + 2 digits)
60 kΩ	0.001 kΩ	± (0.05% + 2 digits)
600 kΩ	0.01 kΩ	± (0.05% + 2 digits)
6 MΩ	0.0001 MΩ	± (0.3% + 10 digits)
60 MΩ	0.001 MΩ	± (2% +10 digits)
Surge protection: 1000 V
With a measuring range of 60 MΩ the ambient humidity should be < 50%.

Conductivity
Measuring range	Resolution	Accuracy
60 nS	0.01 nS	± (2% + 10 digits)
Surge protection: 1000V
The ambient humidity for the measuring range should be < 50%.

Capacity measurement
Measuring range	Resolution	Accuracy
6 nF	0.001 nF	± (3% + 10 digits)
60 nF	0.01 nF	± (2.5% + 5 digits)
600 nF	0.1 nF	± (2% + 5 digits)
6 μF	0.001 μF	± (2% + 5 digits)
60 μF	0.01 μF	± (2% + 5 digits)
600 μF	0.1 μF	± (2% + 5 digits)
6 mF	1 μF	± (5% + 5 digits)
60 mF	10 μF	for reference only
Surge protection: 1000 V

Temperature
Measuring range	Resolution	Accuracy
-40 … 40°C	1°C	± (2.0% + 30 digits)
40 … 400°C	1°C	± (1.0% + 30 digits)
100 … 1000°C	1°C	± 2.5%
-40 … 104°F	1.8°F	± (2.5% + 50 digits)
104 … 752°F	1.8°F	± (1.5% + 50 digits)
752 … 1832°F	1.8°F	± 2.5%
Surge protection: 1000V
Two-channel temperature measurement
Temperature sensor: Type K only applies to the measurement of temperatures below 230°C / 446°F

Frequency measurement
Measuring range	Resolution	Accuracy
60 Hz	0.001 Hz	± (0.02% + 8 digits)
600 Hz	0.01 Hz	± (0.01% + 5 digits)
6 kHz	0.0001 kHz	± (0.01% + 5 digits)
60 kHz	0.00 1kHz	± (0.01% + 5 digits)
600 kHz	0.01 kHz	± (0.01% + 5 digits)
6 MHz	0.0001 MHz	± (0.01% + 5 digits)
60 MHz	0.00 1MHz	± (0.01% + 5 digits)
Surge protection: 1000V
Input amplitude: 10 Hz … 30 MHz: 600 mV <a <30 Vrm,> 30 MHz: not specified

Duty cycle
Measuring range	Resolution	Accuracy
10 … 90% @	0.01%	± (1.2% + 30 digits)
(10Hz … 2kHz)
Surge protection: 1000V
Rise time: <1 µs, the signal is centered on the trigger level

Pulse width
Measuring range	Resolution	Accuracy
250 mS	0.001 … 0.1 mS	± (1.2% + 30 digits)
Surge protection: 1000V
Rise time: < 1 µs, the signal is centered on the trigger level
10 Hz … 200 kHz: pulse width > 2 µs
The pulse range is limited by the frequency of the signal

Continuity test
Resolution	Functional description
0.01 Ω	Short circuit alarm: from < 10 Ω, alarm switches off from > 50 Ω
Surge protection: 1000V

Diode test
0.0001V	The open circuit voltage is approx. 3V and the measurable voltage drop
	of the PN transition is < 3V A continuous beep
	indicates the short circuit of the PN junction. The typical tension
	of the silicon PN junction is between 0.5 … 0.8V.
Surge protection: 1000V

Further specifications on accuracy can be found in the operating instructions

Further specification
Interface	USB interface
Supply voltage	100 … 240V adjustable
Environmental conditions	23°C / 73.4°F ± 5°C / 41°F, < 75% RH
Dimensions	310 x 240 x 120 mm / 12.2 x 9.4 x 4.7 in
Weight	Approx. 3713 g / 8.2 lbs

1 x Electrical tester PCE-BDM 20 1 x USB cable 1 x Connection adapter for thermocouples 2 x Thermocouple type K x software 2 x Crocodile clip 1 x IEC cable 1 x Instruction manual
