Jual Existent Gum Evaporation Bath 6-Unit 220-240V 50/60Hz 20.4A

Clarkson K33900

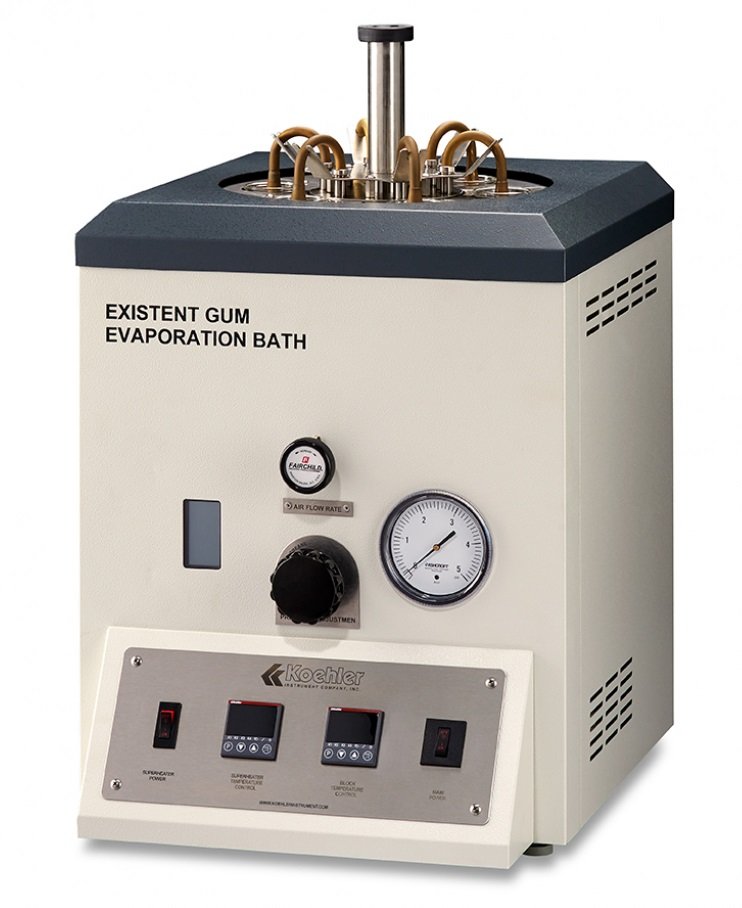

Existent Gum Evaporation Bath 6-Unit 220-240V 50/60Hz 20.4A

Koehler K33900

Electrically heated baths for determining existent gum in aircraft turbine fuels by steam-jet evaporation and in motor and aviation gasolines by air-jet evaporation. Fully insulated, aluminum block design assures safe, efficient high temperature operation. Equipped with air/steam pressure regulator with gauge and a digital flowmeter for adjusting air flow per ASTM specifications. Stainless steel jets deliver air or steam flow to the test wells through removable brass conical adapters. Microprocessor PID control provides quick temperature stabilization without overshoot, and the bath is protected by an overtemperature control circuit that interrupts power should bath temperature exceed a programmed cut-off point. Dual LED displays provide actual and setpoint temperature values in °C/°F format. Model K33900 with Built-in Superheater–Six-unit bath with a built-in thermostatically controlled superheater which delivers dried steam to the bath inlet for steam-jet method testing of aircraft turbine fuels. Has digitalindicating solid state bath temperature control with digital setpoint and display. Model K33950–Six-unit bath without built-in superheater. Model K33780–Three-unit bath without built-in superheater. All controls are housed in the bath cabinet. For steam-jet method testing of aircraft turbine fuels Meets output requirements of three-unit and six-unit evaporation baths Electrically heated for clean, efficient operation and ease of installation Meets applicable ASME, NEC standards; UL listed, CSA approved Electrically heated boiler provides instantaneous and reserve steam capacity for steam-jet evaporation tests. Easy to install and operate; electrical heating eliminates the need for on-site fuel combustion. Requires only a water feed source and electrical hook-up. Ruggedly constructed, with long life industrial grade incoloy heating element. Includes a full range of safety features: automatic water level control and low water cut-off; steam safety valve; high-limit pressure cut-out with manual reset; steam pressure gauge.

Features:

Conforming to ASTM D381 and related specifications
Choice of three-unit and six-unit models
Safety top assembly allows for easy positioning and connection of all conical adapters to the bath
Digital flowmeter for accurate and precise air flow measurement
Available with built-in steam superheater
Microprocessor programmable high accuracy temperature control
Built-in pressure regulators and air flowmeters

Test Method:
Gum formed during fuel storage can deposit on induction system surfaces, intake valves, stems and guides. To test for gum content, a 50mL sample is evaporated in an aluminum block bath for a specified period under controlled conditions of temperature and flow of air (aviation and motor gasolines) or steam (aircraft turbine fuel).

Specifications
Conforms to the specifications of:	ASTM D381; IP 131; IP 540; ISO 6246; DIN 51784; FTM 791-3302; NF M 07-004
Testing Capacity:	K33900 and K33950: 6 sample beakers K33780 and K33781: 3 sample beakers
Maximum Temperature:	475°F (246°C)
Temperature Control Stability:	±1°F (±0.5°C)
Bath Configuration:	machined aluminum block with multiple cartridge heaters
Heater Range:	K33900 and K33950: 0-3000W K33780 and K33781: 0-1500W
Superheater:	(Model K33900 only) Superheating chamber and condensate trap constructed of stainless steel Solid state thermoregulator (0-550°F) Heater Range: 0-3000W
Steam Generator:	Output: 54.1 lbs steam/hr at 212°F
Bhp Rating:	1.83
kW Rating:	18
Shipping Weight:	K33900: 313 lbs K33780/K33781: 168 lbs K33950: 271 lbs
Dimensions:	K33900: 34x30x28 in K33780/K33781: 34x20x25 in. K33950: 34x30x28 in.

Catalog Number	Description	Electrical Requirements
K33900 *	Existent Gum Evaporation Bath 6-Unit	220-240V 50/60Hz, Single Phase, 20.4A
	Existent Gum Evaporation Bath 6-Unit	220-240V 50/60Hz, Single Phase, 13.6A
	Existent Gum Evaporation Bath 3-Unit	115V 60Hz, Single Phase, 13.0A
	Existent Gum Evaporation Bath 3-Unit	220-240V 50/60Hz, Single Phase, 6.8A
