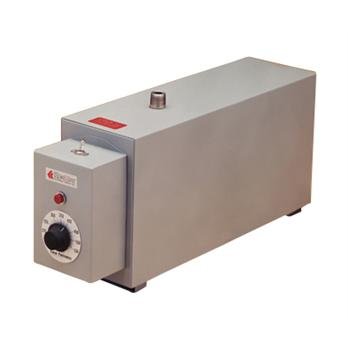

Electrically heated boiler provides instantaneous and reserve steam capacity for steam-jet evaporation tests. Easy to install and operate; electrical heating eliminates the need for on-site fuel combustion. Requires only a water feed source and electrical hook-up. Ruggedly constructed, with long life industrial grade incoloy heating element. Includes a full range of safety features: automatic water level control and low water cut-off; steam safety valve; high-limit pressure cut-out with manual reset; steam pressure gauge.
Features and Benefits
- For steam-jet method testing of aircraft turbine fuels
- Meets output requirements of three-unit and six-unit evaporation baths
- Electrically heated for clean, efficient operation and ease of installation
- Meets applicable ASME, NEC standards; UL listed, CSA approved
Output: 54.1 lbs steam/hr. 212°F
Bhp Rating: 1.83
kW Rating: 18
| Thomas No | Mfr No | Description |
|---|---|---|
| 0509A08 | K33850 | Steam Boiler, 120/240V 60Hz, Three Phase |
