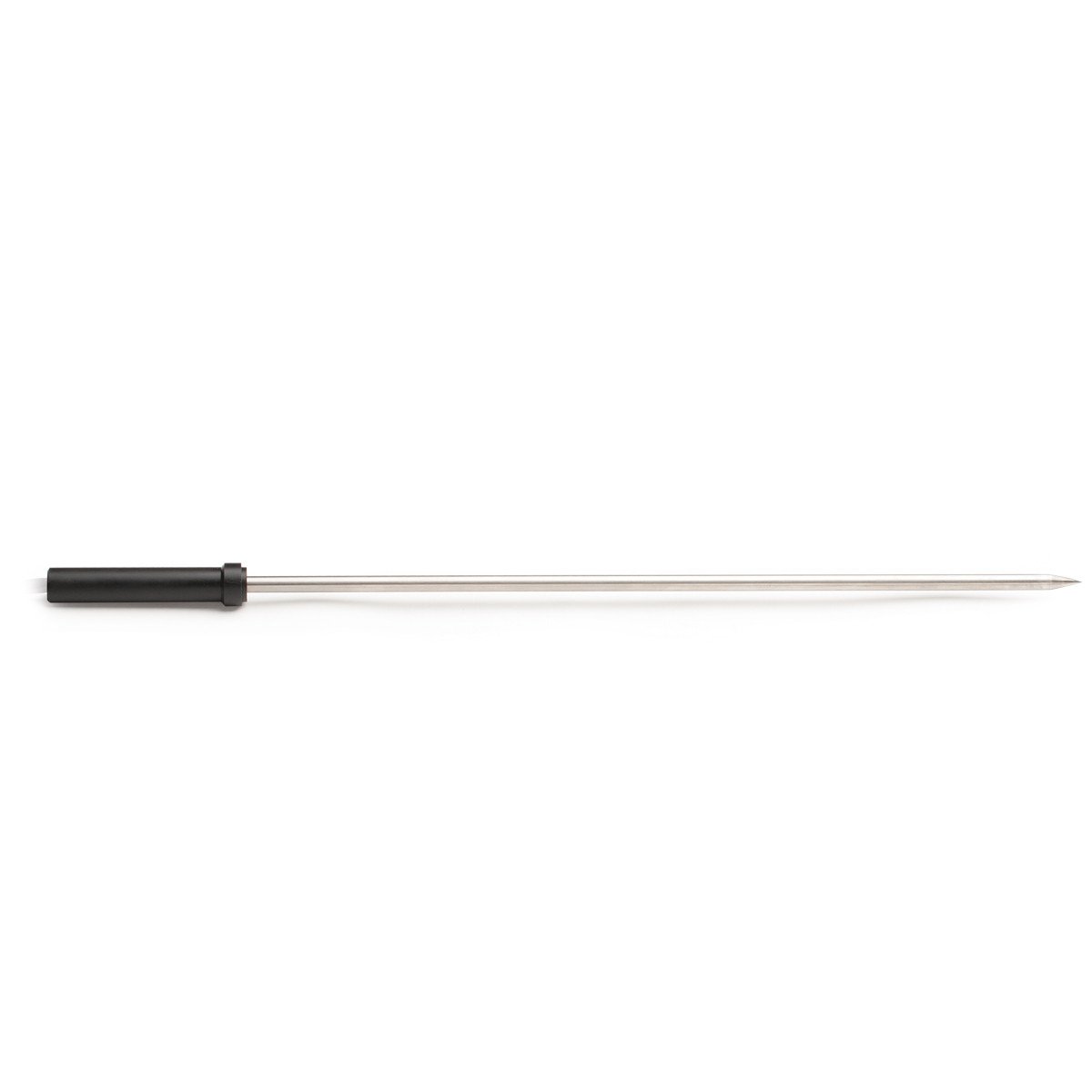

Extended Length Penetration K-Type Thermocouple Probe with Handle (500mm)

The HI766TR1 is an extended length penetration K-type thermocouple probe with a handle designed for use with a thermocouple thermometer. A green cable extends 1 m (3.3′) from the handle to the thermocouple connector with the meter. The sharp, pointed tip at the end of the 500 mm probe allows users to obtain highly accurate temperature readings of semi-solids and liquids.

Measures up to 250°C (482°F)
10 second response time
500 mm stainless steel sensor

Info penawaran harga dan pemesanan hubungi:

SKU 860924e85439 Kategori : Electrodes

Description

The Extended Length Penetration K-Type Thermocouple Probe with Handle (500mm) – HI766TR1 is designed to measure the temperature of semi-solids and liquid samples. The response time of a measurement is affected by the position of the sensor relative to the surface being measured. The HI766TR1 pointed tip construction offers a 10-second response for a temperature reading. With a strong, corrosion-resistant, stainless steel construction, this probe is able to measure surfaces up to 250°C (482°F).

Specification Name	Detail
SKU	HI766TR1
Recommended Operating Temperature	250°C (482°F)
Response Time (90% of final value)	10 seconds
Body Length	L 500 mm x dia 10 mm (19.7″ x 0.39″)
Temperature Sensor	yes
Body Material	stainless steel
Cable	polyurethane (PUR)/coiled; 1 m (3.3′)
Recommended Use	liquid, semi-solid products
Connection	K-Type
