Automatic fast scanning
One click to realize automatic exposure, automatic focusing, automatic scanning speed matching, automatic data acquisition and saving

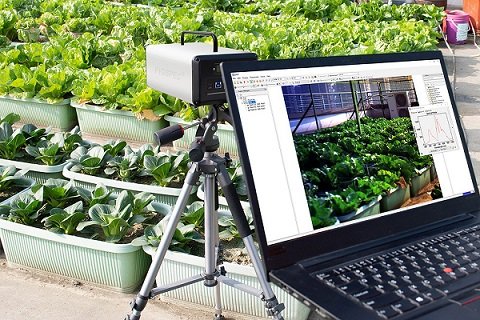

The auxiliary viewfinder camera realizes the monitoring of the shooting area
-
Data preview and correction
Data preview and correction functions: radiance correction, reflectivity correction, area correction, lens calibration and uniformity calibration
Perfect compatibility of multiple data formats
Technical parameter
|
Model |
FS-20 | FS-22 |
FS-23 |
FS-25 |
|
Spectroscopic method
|
Transmission grating |
Transmission grating
|
Transmission grating |
Transmission grating
|
|
Image Resolution
|
1920*1920 |
1920*1920
|
1920*1920 |
320*320
|
|
Dynamic Range
|
12 bits |
12 bits
|
12 bits |
14 bits |
|
Imaging speed
|
≤15Sec |
≤15Sec
|
≤5Sec |
≤5 Sec |
|
Spectral Channels
|
600 |
1200
|
1200 |
254
|
|
Spectral Range
|
400-700nm |
400-1000nm
|
400-1000nm |
900-1700nm
|
|
Spectral FWHM
|
2.5nm |
2.5nm
|
2.5nm |
8nm
|
|
Slit width
|
25um |
25um
|
25um |
25um |
|
Transmission efficiency
|
60% |
60%
|
60% |
60% |
|
Stray light level
|
0.5% |
0.5%
|
0.5% |
0.5% |
|
Pixel size
|
5.86um*5.86um |
5.86um*5.86um
|
5.86um*5.86um |
30um*30um |
|
Detector type
|
CMOS |
CMOS
|
CMOS |
InGaAs |
|
Sensor imaging surface size
|
11.3*7.1mm |
11.3*7.1mm
|
11.3*7.1mm |
9.6mm x 7.68mm |
|
Standard lens focal length
|
25mm |
25mm
|
25mm |
25mm |
|
Minimum working distance
|
100mm |
100mm
|
100mm |
100mm |
|
Field angle
|
25° |
25°
|
25° | 17° |
|
Minimum exposure time
|
34us |
34us
|
21us |
1us |
|
Maximum exposure time
|
10Sec |
10Sec
|
10Sec |
1Sec |
|
SNR
|
600/1 |
600/1
|
600/1 | 600/1 |
|
Interface
|
USB3.0 |
USB3.0
|
USB3.0 |
Gigabit network
|
| Camera lens interface | C |
C
|
C | C |
| Accessories | USB3.0 Transmission line |
USB3.0 Transmission line
|
USB3.0 Transmission line |
Gigabit network transmission line
|
|
Imaging function
|
With ROI function
single region ROI can be achieved
|
With ROI function
single region ROI can be achieved
|
With ROI function
Multi regions ROI can be achieved
|
With ROI function
single region ROI can be achieved
|
|
Auxiliary imaging function
|
Auxiliary framing camera to
monitor the shooting areas
|
Auxiliary framing camera to
monitor the shooting areas
|
Auxiliary framing camera to
monitor the shooting areas
|
Auxiliary framing camera to
monitor the shooting areas/span>
|
|
Power supply
|
Built-in Battery |
Built-in Battery
|
Built-in Battery | Built-in Battery |
|
Size*
|
255mm*138mm*107mm |
255mm*138mm*107mm
|
255mm*138mm*107mm |
335mm*182mm*143mm
|
|
Weight**
|
Less than 2.8kg |
Less than 2.8kg
|
less than 2.8kg |
less than 5.3kg
|
*Dimensions without lens and handle **Weight without lens
