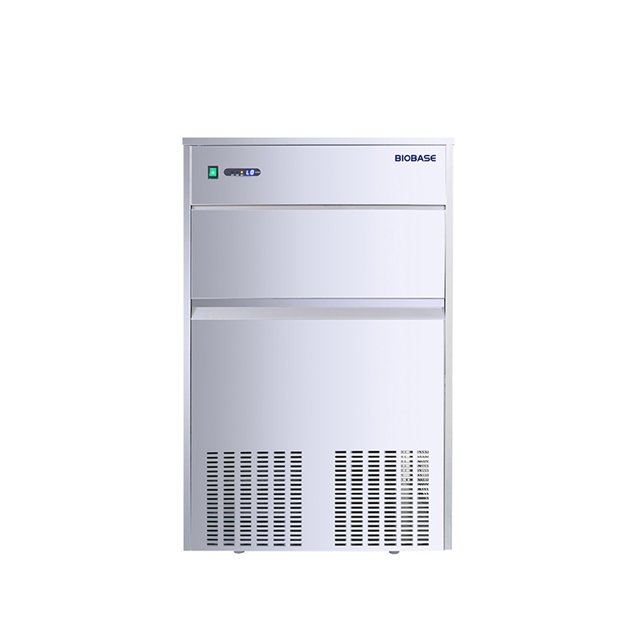

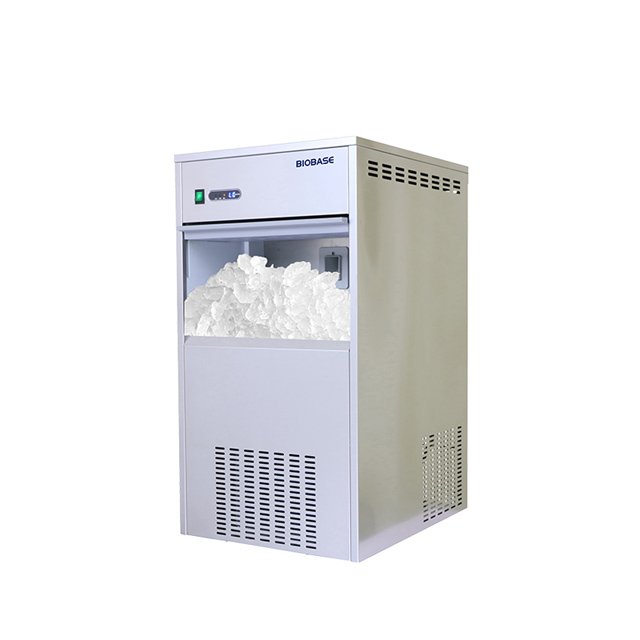

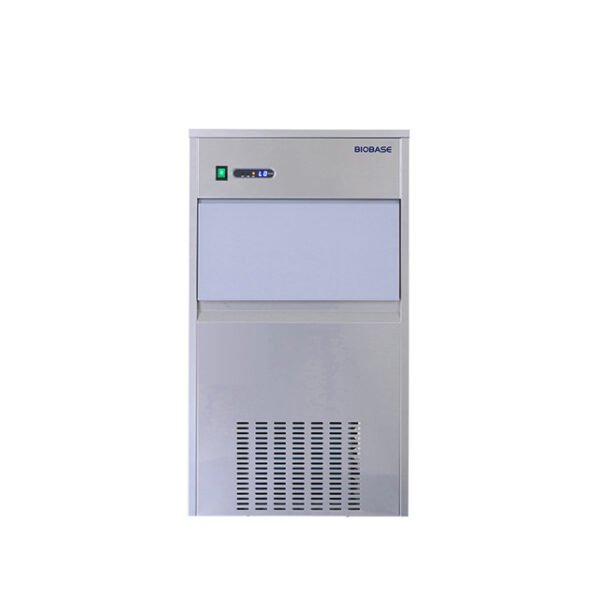

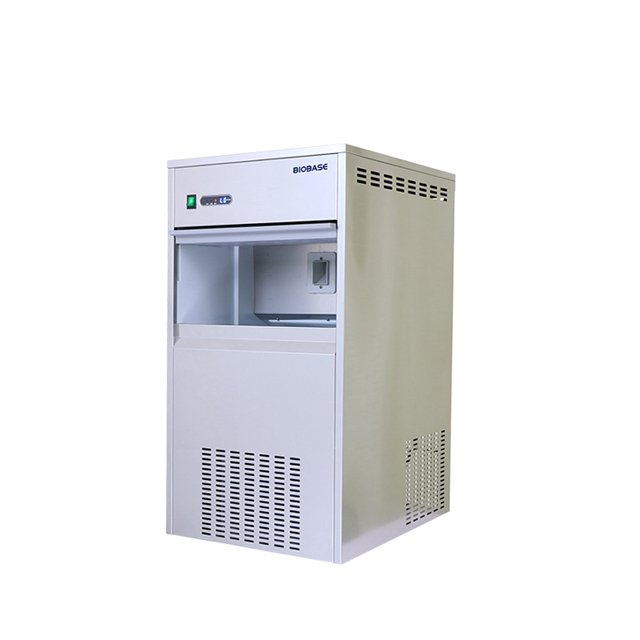

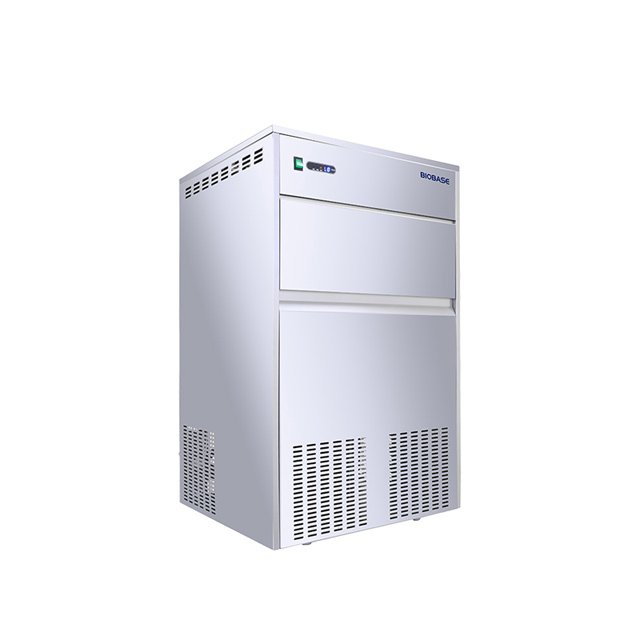

Flake Ice Maker
Model
| Model | FIM100 | FIM120 | FIM150 | FIM200 | FIM250 |
| lce Making Capacity(kg/24h) lce Storage Capacity(kg) |
100
40 |
120
40 |
150
40 |
200
60 |
250
60 |
| lce Shape | Small particle of irregular snow ice | ||||
| lnput Current(w)
Way of Condensation Ambient Temperature |
520 | 550 | 680 | 1040 | 1100 |
| Air cooling
10~35℃ |
|||||
| Water Temperature Tank Shell |
2~15℃ Stainless steel |
||||
| Compressor
Refrigerant |
Panasonic Wanbao | Donper | Panasonic Wanbao | ||
| R290 | |||||
| Standard Accessories Optional Accessories Power Supply |
Water inlet pipe*1,Drainage pipe*1, lce spoon*1 Filter AC 220V±10%,50/60HZ; 110V±10%,60HZ |
||||
| Net Weight(kg) | 58 | 60 | 80 | ||
| Gross Weight(kg) | 82 | 84 | 105 | ||
| External Size(W”D*H)mm Package Size(W’D*H)mm |
500*611*940
720*620*1160 |
680*611*1100
730*790*1320 |
|||
Various types of experiments, hospitals, schools, laboratories,medical, chemical applications, supemmarkets, hotels and other seafood products stores etc.
