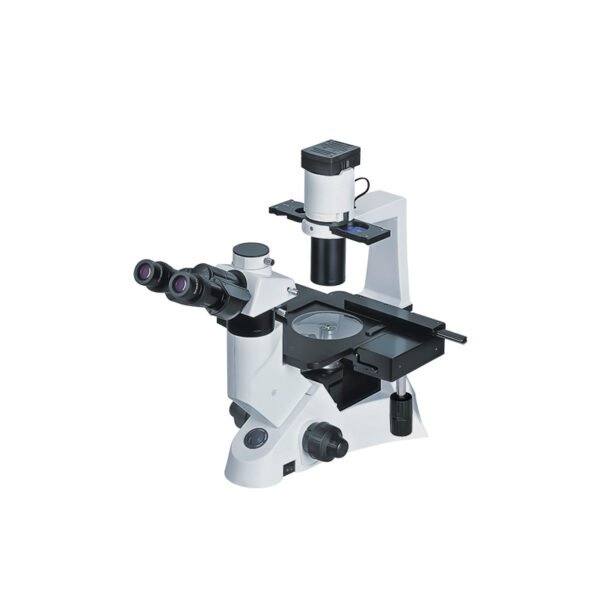

Fluorescence Biological Microscope BFM-100
Technical Parameters:
|
Model |
BFM-100 |
|
Eyepiece |
WF10×/22 |
|
View Head |
Hinged Trinocular Viewing Head Inclined at 30°, Interpupillary 48-75mm |
|
Objective |
Infinite Plan Objectives 4x, 40x, Infinite Plan Phase Contrast Objectives 10x, 20x, |
|
Fluorescence Accessories |
FI-100 |
|
Focusing System |
Coaxial Coarse and Fine Adjustment, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation, |
|
Nosepiece |
5-hole Nosepiece |
|
Stage |
Double Layers Mechanical Stage 160mmx250mm/ 70mmx180mm |
|
Transmission Lighting System |
ELWD condenser NA0.3 |
|
Halogen lamp 6V 30W |
|
|
Camera Port |
C mount |
|
Power Supply |
100-240V 50-60Hz |
|
Packing Size |
468*397*665mm, 435*370*260mm |
|
Gross Weight |
15.5kg, 5.5kg |
