Features:
* Compressor, energy saving and high efficiency, low noise, long life.
* Vacuum pump, small volume, pumping speed, low noise, can achieve higher vacuum.
* Integrated design, compact structure, easy to use.
* Environmentally friendly refrigerant, ODP=0.
* With defrosting function, safe and reliable.
* The cold trap and operating table are made of stainless steel, corrosion resistant and easy to clean.
* The transparent cover of the drying chamber is made of aviation acrylic material, with high strength and no bonding.
* Large cold trap opening size, with pre-freezing function, no need for low temperature refrigerator.
* Professional gas diversion technology, high freeze-drying efficiency, and uniform ice capture.
Technical parameters:
|
Model |
BK-FD12S |
BK-FD12P |
BK-FD12T |
BK-FD12PT |
||||
|
Type |

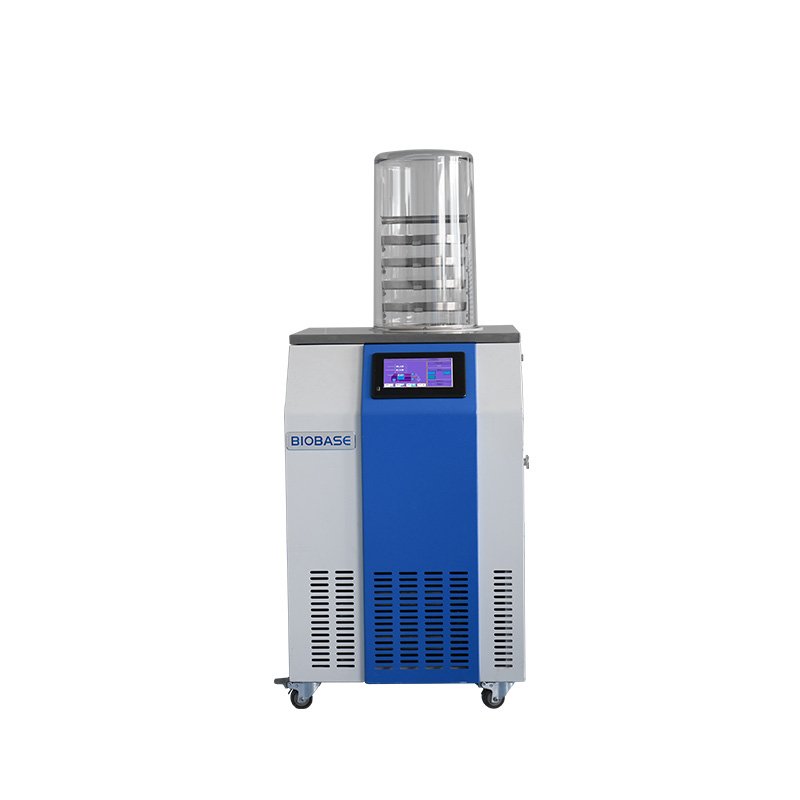

Standard chamber |

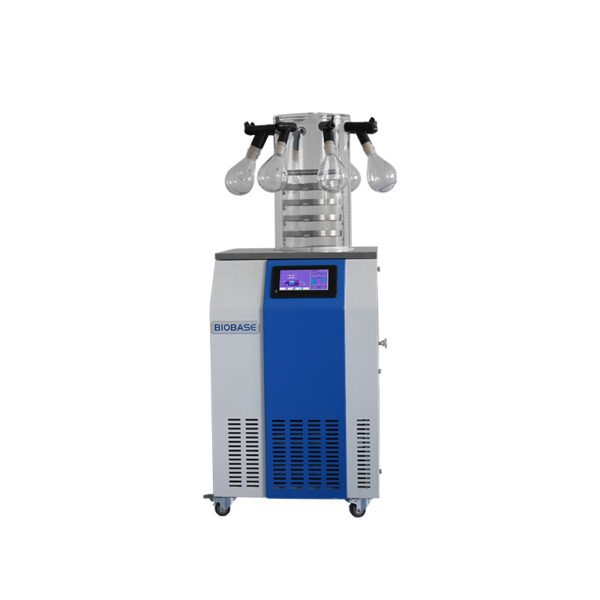

Standard chamber with 8 port manifold |

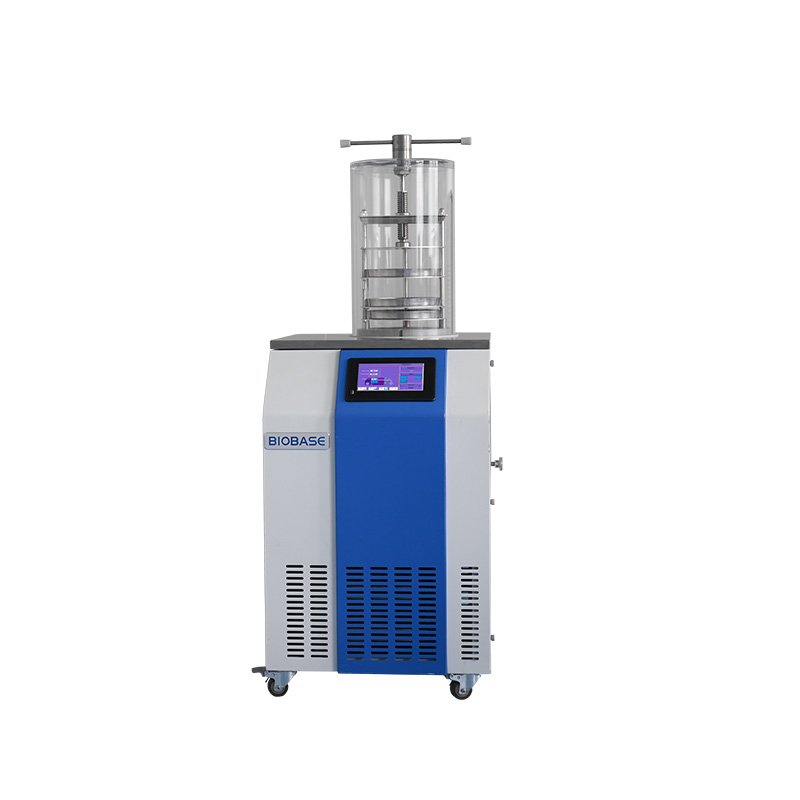

Stoppering chamber |

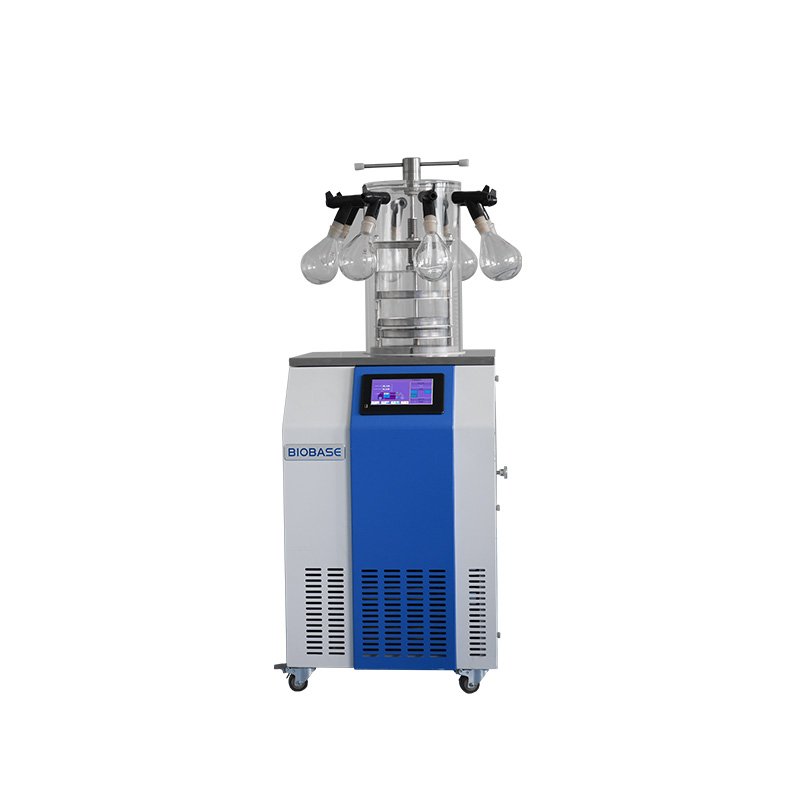

Stoppering 8 port manifold |
||||
|
Freeze Drying Area |
0.12㎡ |
0.08 ㎡ |
||||||
|
Tray |
4 pcs 3pcs |
|||||||
|
Height Between Trays |
50mm |
/ |
||||||
|
Cold Trap Temperature |
≤-60℃(No load)(-80℃ optional) |
|||||||
|
Cold Trap Capacity |
9L |
|||||||
|
Cold Trap Size (Diameter*H) |
Φ219*240mm |
|||||||
|
Vacuum Degree |
≤5 Pa |
|||||||
|
Water Capture Capacity |
3-4L/24h |
|||||||
|
Tray Size (D*H) |
Φ200*20mm |
|||||||
|
Freeze Drying Time |
36h |
|||||||
|
Loading Capacity/Shelf (Liquid) |
1.2L |
0.8L |
||||||
|
Total Loading Capacity (Liquid) |
2.4L |
1.6L |
||||||
|
Drying Chamber Size (Diameter*H) |
Φ260*420mm |
Φ260*465mm |
||||||
|
Total Qty. Of Vial Φ22 |
/ |
/ |
147 |
147 |
||||
|
Total Qty. Of Vial Φ16 |
/ |
/ |
297 |
297 |
||||
|
Total Qty. Of Vial Φ12 |
/ |
/ |
492 |
492 |
||||
|
Refrigerant |
-60℃: R600a, R23 -80℃: R404a、R23 |
|||||||
|
Cooling System |
Standard: Air cooling Optional: Water cooling |
|||||||
|
Power Supply |
Standard: 220V 50Hz Optional: 220V 60Hz |
|||||||
|
Power Consumption |
1400W |
|||||||
|
Standard Accessory |
Vacuum pump 2L/S, Material tray*4(Material tray*3 for T/PT), Drying rack*1, Cover*1, Acrylic bucket*1(all models) Conical-mouth flask 100ml*2pcs, 200ml*2pcs, 250ml*2pcs, 500ml*2pcs, Switch valve*8 pcs (only for model BK-FD12P/PT) |
|||||||
|
Optional Function & Accessory |
Equipment moving frame, vacuum pump of other specifications, vacuum regulation, oil mist filter, automatic air intake, automatic water discharge and other customization(for all models) 600ml/1200ml Wide-mouth flask (for BK-FD12P/PT) |
|||||||
|
External Size (W*D*H), mm |
520*625*768 |
|||||||
|
Package Size(W*D*H),mm |
Main Body |
724*624*1112 |
||||||
|
Accessory |
565*680*510 |
|||||||
|
Gross Weight |
114 |
119 |
124 |
125 |
||||
