Freeze Dryer BK-FD18S BK-FD18P BK-FD18T BK-FD18PT
Features:
* Compressor, energy saving and high efficiency, low noise, long life.
* Vacuum pump, small volume, pumping speed, low noise, can achieve higher vacuum.
* Integrated design, compact structure, easy to use.
* Environmentally friendly refrigerant, ODP=0.
* With defrosting function, safe and reliable.
* The cold trap and operating table are made of stainless steel, corrosion resistant and easy to clean.
* The transparent cover of the drying chamber is made of aviation acrylic material, with high strength and no bonding.
* Large cold trap opening size, with pre-freezing function, no need for low temperature refrigerator.
* Professional gas diversion technology, high freeze-drying efficiency, and uniform ice capture.
Technical parameters:
|
Model
|
BK-FD18S
|
BK-FD18P
|
BK-FD18T
|
BK-FD18PT
|
|
Type
|

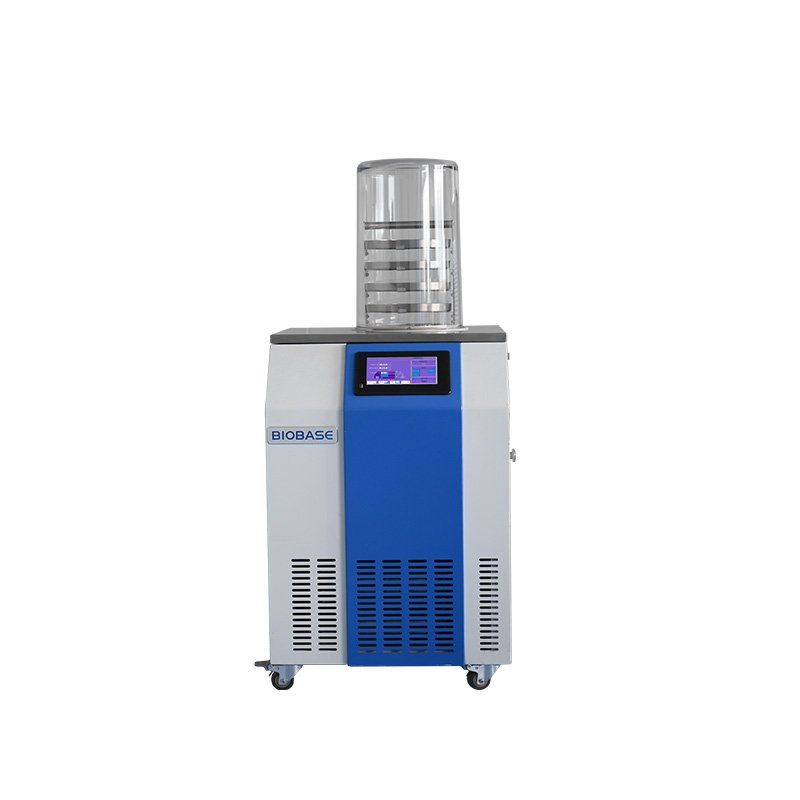

Standard chamber
|

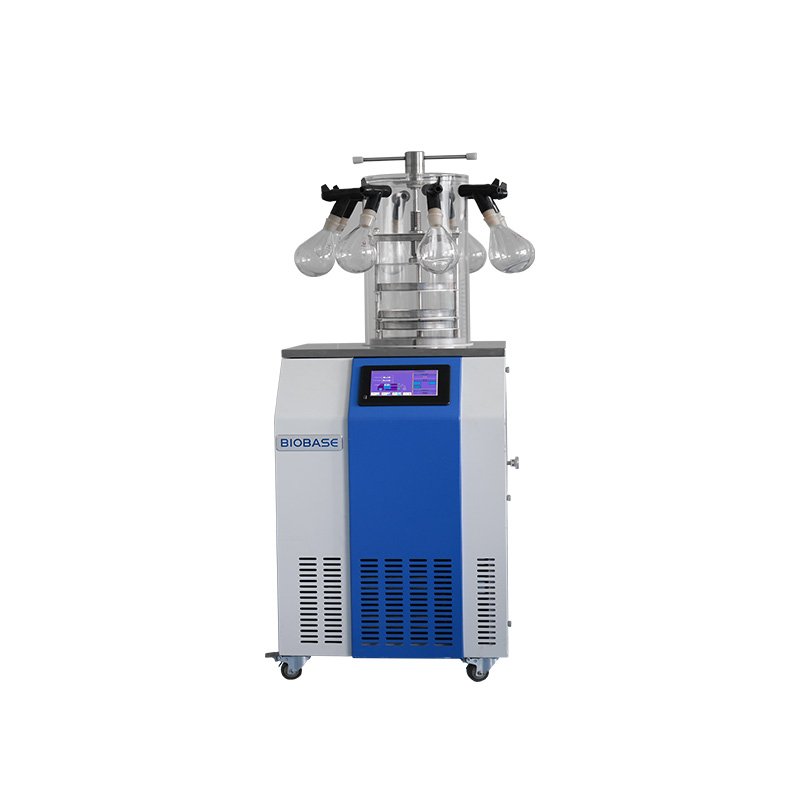

Standard chamber with 8 port manifold
|

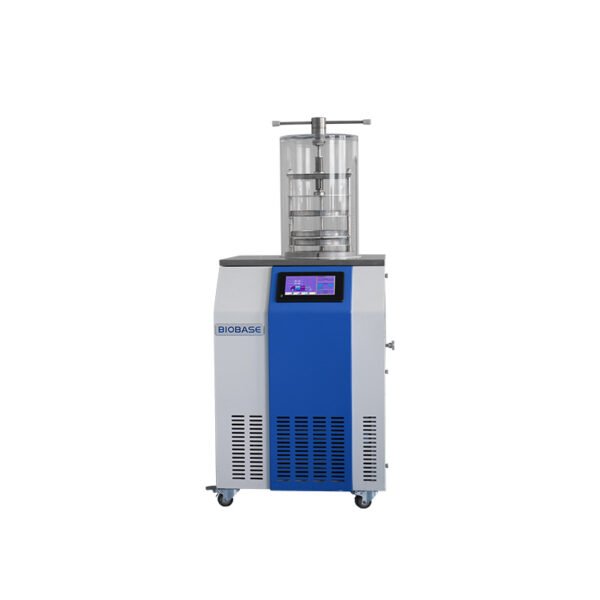

Stoppering chamber
|

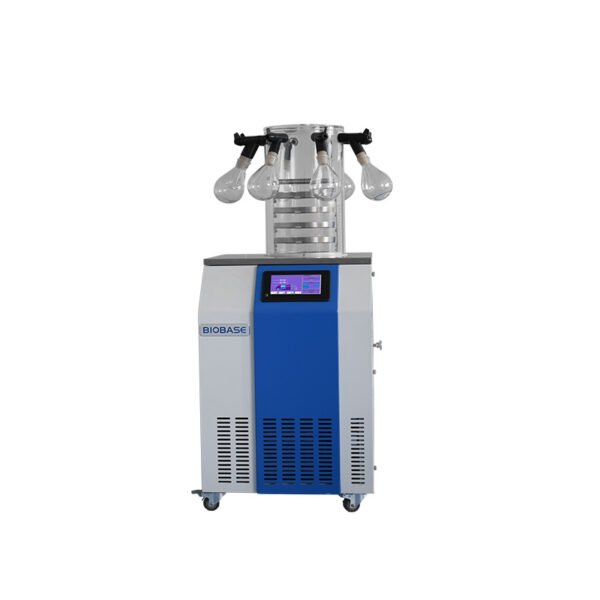

Stoppering
chamber with
8 port manifold
|
|
Freeze Drying Area
|
0.18㎡
|
0.09 ㎡
|
|
Tray
|
4 pcs 3pcs
|
|
Height Between Trays
|
80mm
|
/
|
|
Cold Trap Temperature
|
≤-60℃(No load)(-80℃ -110℃optional)
|
|
Cold Trap Capacity
|
28L
|
|
Cold Trap Size (Diameter*H)
|
Φ300*410mm
|
|
Vacuum Degree
|
≤5 Pa
|
|
Water Capture Capacity
|
6L/24h
|
|
Tray Size (D*H)
|
Φ240*20mm
|
|
Freeze Drying Time
|
36h
|
|
Loading Capacity/Shelf (Liquid)
|
1.8L
|
0.9L
|
|
Total Loading Capacity (Liquid)
|
3.6L
|
1.8L
|
|
Drying Chamber Size (Diameter*H)
|
Φ300*445mm
|
Φ300*465mm
|
|
Total Qty. Of Vial Φ22
|
/
|
/
|
183
|
183
|
|
Total Qty. Of Vial Φ16
|
/
|
/
|
345
|
345
|
|
Total Qty. Of Vial Φ12
|
/
|
/
|
615
|
615
|
|
Refrigerant
|
-60℃: R600a, R23 –80℃: R404a、R23
|
|
Cooling System
|
Standard: Air cooling Optional: Water cooling
|
|
Power Supply
|
Standard: 220V 50Hz Optional: 220V 60Hz
|
|
Power Consumption
|
1800W
|
|
Standard Accessory
|
Vacuum pump 4L/S, Material tray*4(Material tray*3 for T/PT), Drying rack*1, Cover*1, Acrylic bucket*1(all models)
Conical-mouth flask 100ml*2pcs, 200ml*2pcs, 250ml*2pcs, 500ml*2pcs,Switch valve*8 pcs (only for model BK-FD18P/PT)
|
|
Optional Function & Accessory
|
Equipment moving frame, vacuum pump of other specifications, vacuum regulation, oil mist filter, automatic air intake, automatic water discharge and other customization(for all models)
600ml/1200ml Wide-mouth flask (for BK-FD18P/PT)
|
|
External Size (W*D*H), mm
|
545*670*930
|
|
Package Size(W*D*H),mm/Gross Weight
|
Main Body
|
672*804*1170
|
|
Accessory
|
650*710*650
|
