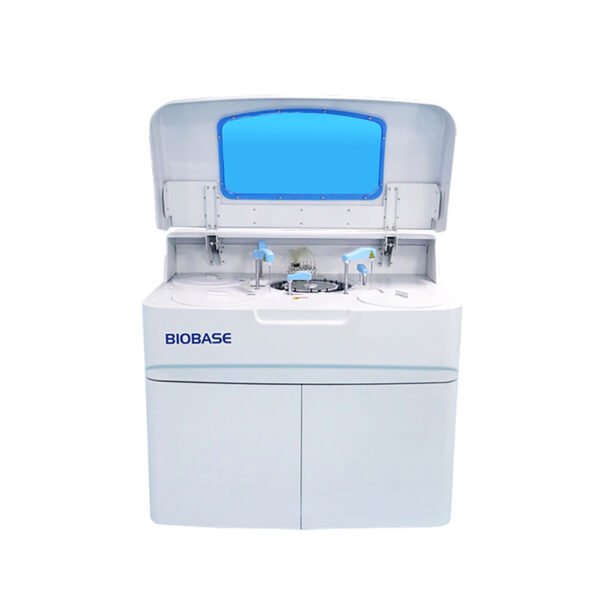

Fully Automated Human Blood Biochemistry Chemistry Analyzer Fully Automatic
It is used to quantitatively analyze the clinical chemistry of human serum, plasma, urine, cerebrospinal fluid and other samples. Do not use for other purposes.
Models:
|
Model |
BK-600 |
|
|
Overall Performance |
Throughput |
600Tests/hour |
|
Analysis Method |
End-point, Fixed-time, Rate, Two-point, Turbidimetry |
|
|
Certification |
CE, FDA, ISO9001, ISO14001, ISO13485 |
|
|
Sample & Reagent System |
Sample Positions |
90sample positions, built-in barcode system available |
|
Reagent Positions |
180refrigerated reagent positions(R1:45 & R2:45) |
|
|
Sample Volume |
1-70μL |
|
|
Reagent Volume |
10-350μL |
|
|
Probe Washing |
Automatic washing interior and exterior |
|
|
Reagent Cooling |
2~8℃ |
|
|
Reaction System |
Temperature Control |
37±0.1℃, real-time monitoring |
|
Cuvettes |
120reusable cuvettes, optical length 6mm |
|
|
Mixer Probe |
Independent stirring |
|
|
Washing |
Automatic cuvettes washing |
|
|
STAT function |
YES |
|
|
Optical System |
Light Source |
12V/30W halogen lamp |
|
Spectrophotometry |
Post-spectral spectrophotometry |
|
|
Wavelength |
340,405,450,480,505,546,570,600,630,700,750,800nm |
|
|
Absorbance |
0~3.5Abs |
|
|
Calibration & QC |
Calibration |
1-point, 2-point and multipoint, factor, Spline Logit-4P, Logit-5P |
|
Quality Control |
Inserting quality control at random |
|
|
Data Management |
Software |
Windows 7/8/10 |
|
LIS System |
Available |
|
|
Interface |
LAN port access |
|
|
Printer |
External,multiple reporting mode available |
|
|
Working Conditions |
Power Supply |
AC220V±10%,50/60Hz, 110V±10%,60Hz,800W |
|
Temperature |
15～30℃ |
|
|
Water Consumption |
Deionized water:10L/H |
|
|
Humidity |
40~85% |
|
|
Size & Weight |
External Size (W*D*H) |
1170*775*1145mm |
|
Net Weight |
216kg |
|
|
Package Size (W*D*H) |
1348*928*1377mm |
|
|
Gross Weight |
280kg |
|
|
Accessory Package Size |
728*598*651mm |
|
|
Accessory Gross Weight |
70kg |
|
