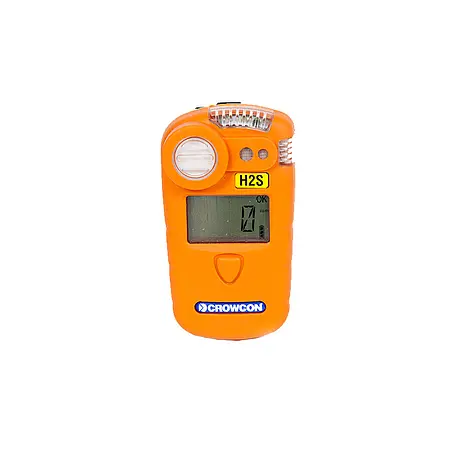

Gas Detector Gasman-H2S “Hydrogen Sulfide”

Detektor gas Gasman-H2S adalah alat proteksi personal yang dirancang untuk mendeteksi gas spesifik, baik mudah terbakar maupun beracun, dengan akurasi tinggi. Dilengkapi alarm suara dan sinyal visual, alat ini efektif digunakan di lingkungan bising. Layar tampilannya menunjukan nilai pengukuran gas secara real-time, sementara fitur datalogger opsional memungkinkan penyimpanan data hingga 900 jam untuk evaluasi lebih lanjut melalui perangkat lunak khusus. Memenuhi standar ATEX dan UL, detektor ini cocok untuk industri, pemadam kebakaran, serta pengukuran ozon. Kalibrasi sesuai DIN ISO dan sertifikasi ExVo menjamin keandalan, dengan opsi pemeliharaan rutin dan penggantian sensor melalui toko online. Dilengkapi baterai atau isi ulang, alat ini siap digunakan di berbagai kondisi kerja.

Info penawaran harga dan pemesanan hubungi:

Gasman-H2S adalah detektor gas portabel yang dirancang untuk melindungi pengguna dari paparan gas berbahaya, baik yang bersifat toksik maupun mudah terbakar. Alat ini dilengkapi dengan alarm suara dan sinyal visual yang kuat, memastikan peringatan tetap terlihat bahkan di lingkungan bising. Layar tampilan menunjukkan nilai pengukuran gas secara real-time, memberikan informasi langsung tentang konsentrasi gas di sekitar. Dengan akurasi tinggi, detektor ini sangat andal untuk memantau kondisi lingkungan kerja yang berpotensi berbahaya.

Prinsip kerja Gasman-H2S didasarkan pada sensor khusus yang dapat dipilih sesuai jenis gas target, seperti hidrogen sulfida (H2S) atau gas mudah terbakar. Alat ini juga dilengkapi dengan datalogger opsional untuk menyimpan data pengukuran, yang dapat ditransfer ke komputer untuk analisis lebih lanjut. Kemampuan penyimpanan data mencapai 900 jam dengan interval pengukuran mulai dari 1 menit, memungkinkan pemantauan jangka panjang. Kalibrasi standar sesuai DIN ISO dan sertifikasi ATEX menjamin keandalan performa di lingkungan eksplosif.

Aplikasi utama Gasman-H2S mencakup industri manufaktur, petrokimia, dan pertambangan, di mana pemantauan gas berbahaya sangat kritis. Alat ini juga cocok digunakan oleh pemadam kebakaran berkat sensor Ex-nya yang mendeteksi gas mudah terbakar. Selain itu, detektor ini dapat dilengkapi dengan sensor ozon untuk aplikasi khusus seperti pengawasan kualitas udara. Fleksibilitas pemilihan sensor membuatnya adaptif terhadap berbagai kebutuhan industri.

Dari segi perawatan, Gasman-H2S dirancang untuk mudah digunakan dan dirawat. Pengguna dapat mengirimkan alat untuk kalibrasi ulang setiap dua tahun atau sesuai jadwal perawatan perusahaan, misalnya dua kali setahun. Jika sensor sudah tidak dapat dikalibrasi atau masa pakainya habis, pengguna dapat membeli pengganti melalui toko online resmi. Proses pembersihan dan perakitan ulang juga sederhana, memastikan alat selalu siap digunakan.

Untuk meningkatkan fungsionalitas, tersedia software opsional yang memungkinkan konfigurasi alarm, kalibrasi, dan analisis data. Software ini menampilkan data dalam bentuk grafik atau tabel yang mudah dibaca, serta mendukung ekspor ke program lain. Stasiun pengisian daya juga berfungsi sebagai antarmuka transfer data, memudahkan integrasi dengan sistem komputer. Dengan fitur-fitur ini, Gasman-H2S tidak hanya menjamin keselamatan pengguna tetapi juga efisiensi dalam pengelolaan data. Untuk informasi lebih lanjut dan konsultasi gratis mengenai produk ini, hubungi kami di WhatsApp 6285717112222 atau email contact@alat-test.com. Kami menyediakan pengiriman cepat dengan kualitas terjamin dan harga kompetitif.

– Alarm level freely adjustable, vibrating alarm, LED alarm, shrill beep- Comfortable to wear all day long- Intrinsic safety allows it to be worn in hazardous areas- Regular OK control tone- Robust housing- Waterproof and dustproof IP 65 / 67- Backlit LCD display- Switching off only possible via 2 buttons at the same time- Internal calibration via keyboard on the front of the gas detector- Data logger function- Windows-compatible software available as an accessory for quick and easy configuration of the gas detector and for reading out the internal memory. The connection to the PC is made using an interface cable (the interface is also required).

Technical specification
Typical measurement ranges and alarm settings
Parameter / GasRange / Alarm
Hydrogen sulphide H2S0…100 ppm 5 ppm
Sensors (the sensors are interchangeable)Response time (T90) / lifetime
Methane20 s5 years
Toxic20 s 3 years
Oxygen10 s min. 1 year
Acoustic alarm85 dB (A) at a distance of 1 m, tone sequence adjustableRegular control tone, can be switched off Continuous tone when the battery voltage on the gas detector is too low
Optical alarmParticularly bright LED line, flashingAlarm type shown on the display Green LED with low flashing frequency as power indicator
Vibration alarmIn addition to the visual and acoustic warning, the gas detector vibrates
DisplayHigh-contrast, backlit LCD Line height 10 mm / 0.39″ Symbols for: Max-Hold, Batt-Low, zero calibration, alarm 1 and 2, 15 min and the 8 h TWA alarm
Measured value memoryAdjustable acquisition interval, maximum capacity of 900 hours of continuous measurement at a measurement rate of one minute (depending on the gas concentration)
Power supplyToxic gases and oxygen lithium battery (replaceable)(24 months intermittent use)
The charging station is required for charging flammable gases and hydrogen. 2 nickel hydride cells (rechargeable), 8 …10 h Operating time
Ambient conditions-20…+55 °C / -4 … +131 °F 0…99 % RH non-condensing
Housing class IP 65 / 67
Dimensions90 x 48 x 24 mm / 3.5 x 1.9 x 0.94″ (H x W x D)
Weightmax. 130 g / 4.5 oz (incl. batteries)
Standards/ codes EN50014, EN50020, EN50018, EN55022 Class B, EN50081-2, Ex95C2348X, Ex65C2349, Ex95Y1350, IEC801-3, EN50082-2, IEC61508, EN61779, EN50721
ApprovalEEx ia (d) IIC T3 or T4 ATEX II 1G EEx ia IIC T4 (-20 …+55 °C / -4 … +131 °F) (Toxic & Oxygen Sensors) ATEX II 2G EEx ia d IIC T4 (flammable gases)
PC interfaceStandard software is available as an accessory for configuration and calibration as well as for setting the alarm limits and, with the data logger function, for reading out all the values ​​stored in the gas detector. This software displays the data graphically or in tabular form. It can be exported to other programs. Please note: The combined charging station acts as an interface to transfer the data, i.e. the charging station is used to charge the batteries for the gas detector for “flammable gases” + “hydrogen” and as an interface to the PC for all other models.
Maintenance and recalibrationYou can send the gas detector (depending on the specifications in your ISO manual) to us for maintenance and calibration (e.g. every six months). The gas detector is then disassembled, cleaned and recalibrated. If a sensor can no longer be calibrated or its service life has expired, you will first be informed. Replacement sensors are also available.This gas detector is ATEX approved.
This gas detector is ATEX approved. What does that mean? The ATEX product directive (also unofficially referred to as “ATEX 95” because of the relevant Art. 95 of the EC Treaty on the free movement of goods) of the European Parliament and of the Council to harmonize the legal provisions of the member states for a gas detector or protective system for intended use in potentially explosive atmospheres areas sets the rules for placing products on the market that are used in these areas. In Annex II, the guideline contains the basic health and safety requirements that the manufacturer must observe and then verify them by means of a corresponding conformity assessment procedure. Our gas detector meets all current EU standards.

1 x Gas Detector Gasman-H2S1 x Pocket clip1 x Battery or rechargeable battery (depending on gas type)1 x Instructions
