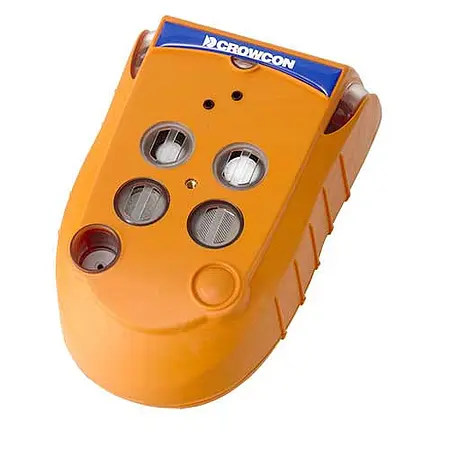

Name: Gas Leak Detector Gas-Pro-1
Brand: PCE-Instruments
SKU: 71486
Availability: InStock
Rating: 5 (1 reviews)

Detektor Kebocoran Gas Gas-Pro-1 adalah alat ukur industri yang dirancang untuk mendeteksi hingga empat jenis gas berbeda dalam satu perangkat. Dengan dimensi kompak dan pompa internal, alat ini ideal untuk penggunaan di lokasi sempit seperti saluran pembuangan, area limbah, atau kapal. Fitur unggulannya termasuk tampilan “top mount” yang mudah dibaca bahkan saat dipasang di seragam kerja, serta navigasi menu satu tombol yang memungkinkan operasi sederhana bahkan dengan sarung tangan. Desain ini memastikan alat tetap mudah digunakan tanpa mengorbankan fungsionalitasnya.

Prinsip kerja detektor ini didasarkan pada sensor gas yang dapat dipertukarkan, memungkinkan adaptasi untuk berbagai aplikasi industri seperti manufaktur kimia, migas, atau pengelolaan limbah. Sistem “Positive Safety” dengan LED tiga warna memberikan indikasi visual instan: hijau untuk kondisi normal, kuning untuk peringatan kalibrasi, dan merah untuk kondisi darurat. Alarm akustik (95 dB), visual, dan getar memastikan peringatan kebocoran gas terdeteksi dengan akurasi tinggi, bahkan di lingkungan bising. Data pengukuran disimpan otomatis setiap 10 detik dan dapat diunduh via kabel atau docking station.

Aplikasi utama alat ini mencakup pemantauan keamanan di pabrik kimia, inspeksi tangki penyimpanan, atau operasi penyelamatan oleh petugas pemadam kebakaran. Pompa internalnya memungkinkan pengambilan sampel gas dari jarak jauh menggunakan pipa hisap, mengurangi risiko paparan langsung. Dengan baterai tahan lama (17-19 jam), detektor ini cocok untuk shift kerja panjang di industri manufaktur atau proyek lapangan. Penyimpanan data 1000 event memudahkan pelacakan insiden dan audit keselamatan.

Dari segi kalibrasi standar, Gas-Pro-1 dilengkapi sertifikat kalibrasi pabrik dan mendukung kalibrasi otomatis melalui modul I-test opsional. Perawatan berkala setiap enam bulan disarankan untuk mempertahankan kinerja optimal. Opsi aksesori seperti sensor cadangan, charger mobil 12V, dan unit uji gas memperluas fleksibilitas penggunaan. Fitur anti-shock pada bodi yang dilapisi karet menjamin ketahanan di lingkungan kerja kasar.

Kombinasi portabilitas, antarmuka mudah digunakan, dan keandalan teknis membuat alat ini menjadi solusi ideal untuk tim HSE (Kesehatan, Keselamatan, Lingkungan). Dukungan purna jual termasuk layanan perbaikan dan konsultasi teknis via nomor telepon khusus untuk pelanggan UK/US. Dengan desain yang memprioritaskan keselamatan operator dan akurasi pembacaan, Gas-Pro-1 menjawab tantangan pemantauan gas berbahaya di berbagai sektor industri. Untuk informasi lebih lanjut dan konsultasi gratis mengenai produk ini, hubungi kami di WhatsApp 6285717112222 atau email contact@alat-test.com. Kami menyediakan pengiriman cepat dengan kualitas terjamin dan harga kompetitif.

– Acoustic alarm (95 DB)- Optical alarm (two LED lights red/blue)- Gas indicator with vibration alarm- Extremely simple handling- Head mounted display- “Positive Safety” display red/yellow/green- Diffusion or pump mode- Impact resistant synthetic rubberized- LCD with lights- Intrinsic safety allows wearing in ex-range- Frequent “OK” control beep- Gas detector monitors a maximum of 5 different gasses simultaneously – Water and dust resistant IP 65 /67- Gas Detector with data logger function- Fully automated calibration with optional purchasable I-test station

Technical specifications
Typical measuring ranges and alarm settings
Parameter / Gas	Symbol	Range	Steps
Flammable gases *	LEL (catalytic)	0… 100 % LEL	1%
Dioxide	O2	0… 25 Vol.%	0.1%
Carbon monoxide Hydrogen sulfide**	CO/H2S	(CO) 0…500 ppm (H2S) 0…100 ppm	(CO) 1 ppm (H2S) 0, 1 ppm
Other gas sensors available upon request. Please email: jmu@pce-instruments.com (UK) or jwe@pce-instruments.com (US)
Ammonia	NH3	0… 100 ppm	1 ppm
Sulfur dioxide	SO2	0… 10 ppm	0.1 ppm
Ozone	O3	0… 1 ppm	0.01 ppm
Chlorine	CI2	0… 100 ppm	0.1 ppm
Chlorine dioxide	CIO2	0… 1 ppm	0.01 ppm
Nitrogen monoxide	NO	0… 1000 ppm	1 ppm
Nitrogen dioxide	NO2	0… 100 ppm	0.1 ppm
Flammable gases	LEL (infrared)	0… 100% LEL	1%
* Standardized calibration to methane, butane, pentane, ethylene and more on demand.
** Combined sensor
Acoustic alarm signal of gas detector		95 dB (A) frequent control signal, disengageable
Optic alarm		extra bright LED’s, red /blue flash, visible from every sight angle
Vibration alarm		additionally to optic and acoustic warning, device vibrates
Display		bright head mounted display, two-colored, switches in case of alarm from green to red
Data storage		50 hours at 10 sec. interval
Power supply		Lithium ion battery approx. 19 hours in diffusion mode approx. 17 hrs. in pump mode
Enclosure type of gas detector		IP 67/ 65
Dimensions		5.1 x 3.2 x 1.7 in / 130 x 82 x 43 mm (H x B x D)
Weight		< 1 lb / 340 g 4 gas°es with pump
Surrounding conditions		-20°F… 122°F / -20°C… + 50 °C 20… 90% rH non condensing
Standards / codes		EN 60079-29, EN 45544, EN 50104 EN 50270, EN 50271 EN 61779
Certification of gas detector		ATEX – II 2G Ex ia d IIC T4 Gb IECEx – Ex ia d IIC T4 UL: Class 1, Div 1, Groups A, B, C, D cUL: Class 1, Div 1, Groups A, B, C, D
PC interface		USB interface device specific
Attention: According to ATEX and BG guidelines (T021 and T023), all mobile gas detector devices have to undergo a sight check and display control before use or at least once a day. Our technicians and engineers will gladly advise you regarding the necessary test gases and discharge units. Please contact PCE Instruments technical support for assistance.
Maintenance and recalibration: The gas detector can be sent to us for purposes of maintenance and calibration (e.g. biannually). The gas detector will then be dismounted, cleaned and recalibrated. If a sensor of the gas detector should not be calibrateable any more or its life time expired we will first inform you. Reserve sensors are also available.
This gas detector is ATEX approved. What does it mean?: The ATEX production directives (commonly known as “ATEX 95” because of art. 95 of the EU directives) by the European Parliament for gas detectors and protection systems for appropriate operation in areas with explosive risks determines the terms for application of a product that is used in those areas. The directives covers in attachment II the basic health- and security requirements that have to be followed by the producer and then to be confirmed by an accordant procedure to evaluate the conformity. Our gas detector achieves all current standards by the EU.

Delivery contents1 x Gas Leak Detector Gas-Pro-1 (with internal pump) 1 x Battery charger 1 x Alligator clip with eyelet 1 x Instruction manual 1 x Calibration certificate 1 x Suction cap as well as sample pipe (suctioning version) Additional equipment optional- Reserve gas sensors for Gas Leak Detector only on demand – Vehicle charging stand for Gas Leak Detector (12V, especially favored by fire fighters) – Internal motor suctioning pump – Fully automatic calibration I-test – Biannual maintenance and calibration of Gas Leak Detector including calibration certificate by producer – Test gas and discharge unit
