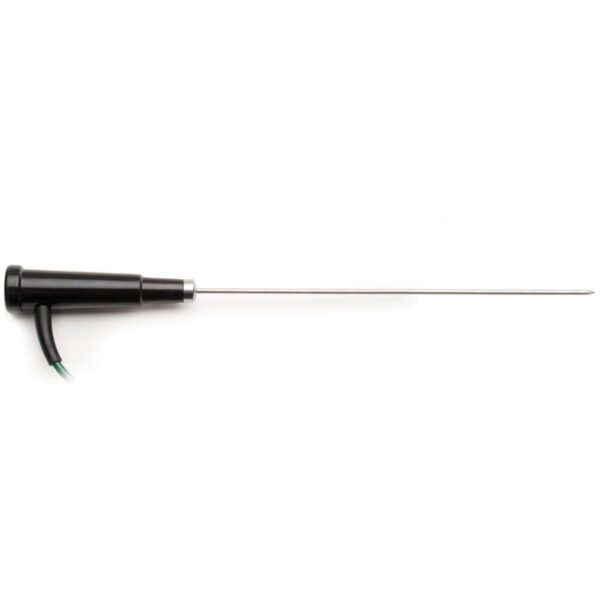

General Purpose Extended Length K-Type Thermocouple Probe with Handle

SKU : ed7712938353

The HI766E2 is an extended length general purpose, penetration K-type thermocouple probe with a handle designed for use with a thermocouple thermometer. A cable extends 1 m (3.3′) from the handle to the thermocouple connector with the meter. The extended length and round, pointed tip of the probe allows users to obtain highly accurate temperature readings of a wide variety of liquid, air, and gas samples.

Measures up to 900°C (1650°F)
6 second response time
Stainless steel

Info penawaran harga dan pemesanan hubungi:

SKU ed7712938353 Kategori : Electrodes

Description

The General Purpose Extended Length K-Type Thermocouple Probe with Handle – HI766E2 is designed to measure the temperature of myriad substances, ranging from liquid to semi-solid to air and gas. The response time of a measurement is affected by the position of the sensor relative to the substance being measured. The HI766E2 round, pointed tip construction offers a speedy 6-second response for a temperature reading. With a strong, corrosion-resistant, stainless steel construction, this probe is able to measure surfaces up to 900°C (1650°F).

Specification Name	Detail
SKU	HI766E2
Recommended Operating Temperature	900°C (1650°F)
Response Time (90% of final value)	35 seconds
Body Length	L 230 mm x dia 5 mm (9.0″ x 0.2″)
Temperature Sensor	yes
Body Material	stainless steel
Cable	polyurethane (PUR)/coiled; 1 m (3.3′)
Recommended Use	air, gases, liquid
Connection	K-Type
