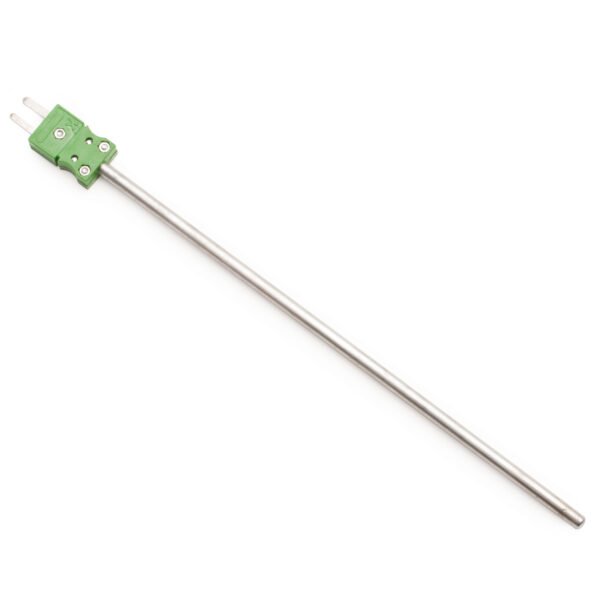

General Purpose K-Type Thermocouple Probe

SKU: cb27014cd298 Kategori :

The HI766PE1 is a general purpose, penetration K-type thermocouple probe designed for use with the HI766HD probe handle and thermocouple thermometer. The round, pointed tip of the probe allows users to obtain highly accurate temperature readings of a wide variety of liquid, air, and gas samples.

  • Measures up to 900°C (1650°F)
  • 6 second response time
  • Stainless steel

Info penawaran harga dan pemesanan hubungi:



The General Purpose K-Type Thermocouple Probe – HI766PE1 is designed to measure the temperature of myriad substances, ranging from liquid to semi-solid to air and gas. The response time of a measurement is affected by the position of the sensor relative to the substance being measured. The HI766PE1 round, pointed tip construction offers a speedy 6-second response for a temperature reading. With a strong, corrosion-resistant, stainless steel construction, this probe is able to measure surfaces up to 900°C (1650°F).





Specification Name Detail
SKU HI766PE1
Recommended Operating Temperature 900°C (1650°F)
Response Time (90% of final value) 16 seconds
Body Length L 150 mm x dia 3 mm (5.9″ x 0.12″)
Temperature Sensor yes
Body Material stainless steel
Recommended Use air, gases, liquid
Connection K-Type
