Guardian 5000 7″x7″ Ceramic Top Hotplate 120V
Ohaus 30500530 / / Fisher 01-922-000 / Thomas 20A00G606 / Spectrum 196-06535
| GUARDIAN 5000 Hotplate Stirrers Reliable Hotplate Stirrers with Exceptional Safety Features for Everyday Use OHAUS Guardian 5000 Hotplates Stirrers are designed for safety and simplicity in all research, academia and industrial applications. The design ensures proper mixing and temperature control of the top plate or your sample when using the optional temperature probe. Heating models include a Single Point Calibration feature for multiple setpoints. Select from five models with three plate sizes for your everyday heating and stirring applications. Unique Features
|
| Model | e-G51ST07C | e-G51HP07C | e-G51HS07C | e-G51HS10C | e-G51HSRDM |
| Function | Stirring | Heating | Heating and Stirring | ||
| Top Plate Size | 7 x 7 in 17.8 x 17.8 cm | 10 x 10 in 25.4 x 25.4 cm | 5.3 in diameter 13.5 cm diameter | ||
| Speed Range | 60 rpm to 1600 rpm | — | 60 rpm to 1600 rpm | ||
| Speed Stability | +/-2 % | — | +/-2 % | ||
| Temperature Range | — | Ambient + 5 °C – 500 °C | Ambient + 5 °C – 380 °C | ||
| Temperature Stability | — | +/-3 % Plate, below 100 °C +/-2 °C and +/-1 % Probe, below 100 °C +/-1 °C | |||
| Temperature Calibration | — | 3 Plate and 3 Probe | |||
| Control | Digital | ||||
| Display | Backlit LCD for Speed | Backlit LCD for Temperature | Backlit LCD for Temperature and Speed | ||
| Capacity | 15 L | 18 L | 20 L | ||
| Top Plate Material | Ceramic | Aluminum | |||
| Dimensions (H x L x W) | 4.8 x 12.2 x 8.8 in 12.2 x 30.9 x 22.3 cm | 4.8 x 16.3 x 11.3 in 12.2 x 41.5 x 28.6 cm | 5.0 x 10.5 x 6.8 in 12.6 x 26.7 x 17.3 cm | ||
| Net Weight | 5.7 lb. / 2.6 kg | 11.5 lb. / 5.2 kg | 5.7 lb. / 2.6 kg | ||
| Power | 120V, 1.0A, 50/60Hz 230V, 0.5A, 50/60Hz | 120V, 10A, 50/60Hz 230V, 6.0A, 50/60Hz | 120V, 11.2A, 50/60Hz 230V, 7A, 50/60Hz | 120V, 8.3A, 50/60Hz 230V, 4.6A, 50/60Hz | |
| Power Consumption | 108W (120V) 104W (230V) | 1080W (120V) 1242 (230V) | 1210W (120V) 1449W (230V) | 896W (120V) 952W (230V) | |
| Working Environment | 41 °F – 104 °F, 80 % RH, non-condensing / 5 °C – 40 °C, 80 % RH, non-condensing | ||||
| Catalog Number | Model | Description | Voltage |

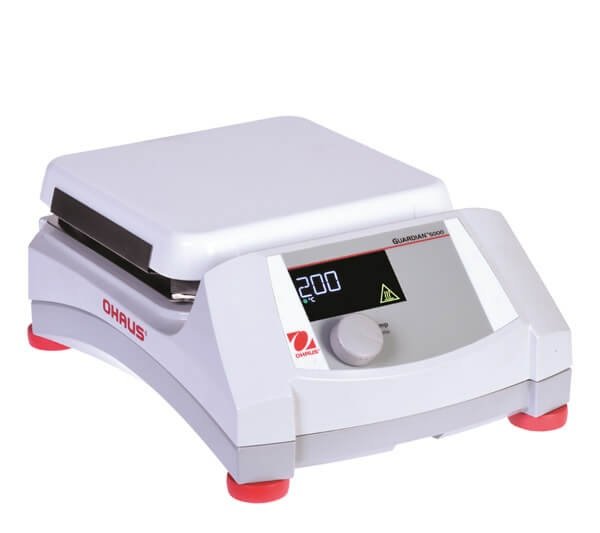

| 30500530 * | e-G51HP07C | Guardian 5000 HotPlate 7×7 Ceramic | 120V |
| e-G51HP07C | Guardian 5000 HotPlate 7×7 Ceramic | 230V | |
| e-G51ST07C | Guardian 5000 Stirrer 7×7 Ceramic | 120V | |
| e-G51ST07C | Guardian 5000 Stirrer 7×7 Ceramic | 230V | |

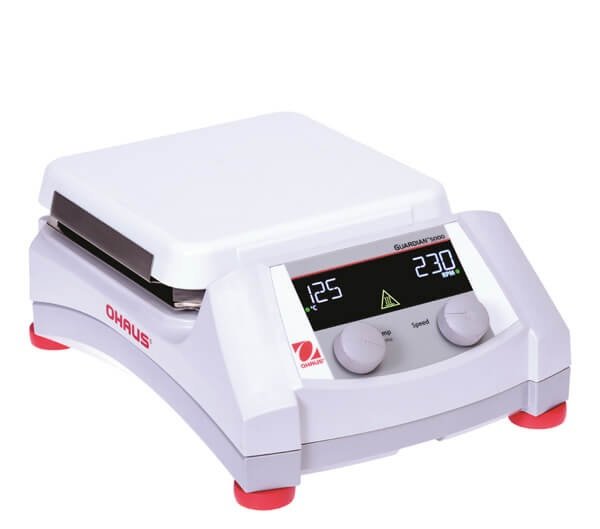

| e-G51HS07C | Guardian 5000 HotPlate Stirrer 7×7 Ceramic | 120V | |
| e-G51HS07C | Guardian 5000 HotPlate Stirrer 7×7 Ceramic | 230V | |

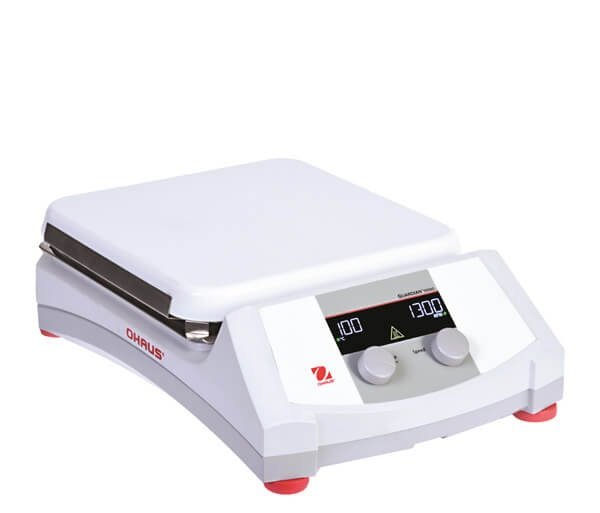

| e-G51HS10C | Guardian 5000 HotPlate Stirrer 10×10 Ceramic | 120V | |
| e-G51HS10C | Guardian 5000 HotPlate Stirrer 10×10 Ceramic | 230V | |

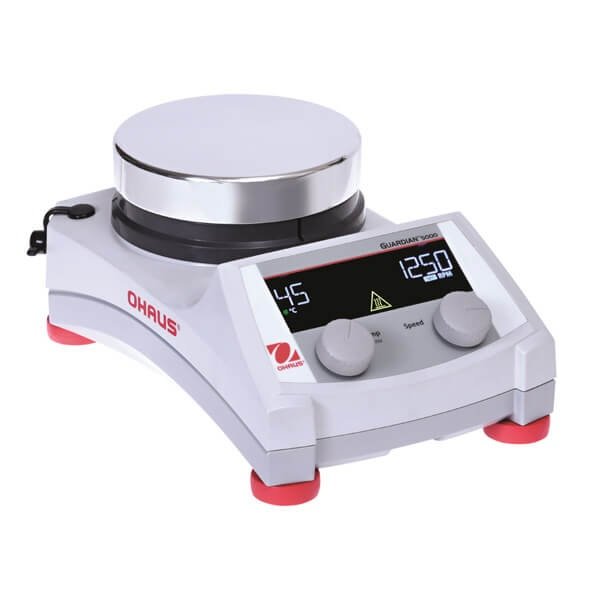

| e-G51HSRDM | Guardian 5000 HotPlate Stirrer Round Aluminum | 120V | |
| e-G51HSRDM | Guardian 5000 HotPlate Stirrer Round Aluminum | 230V |
