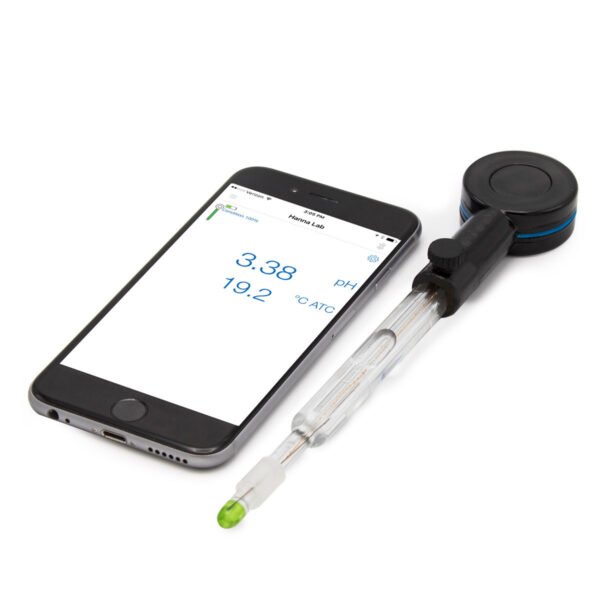

The HALO® Wireless Wine pH Meter incorporates Bluetooth® Smart technology with an application-specific design. There are several features that make it ideal for measuring the pH of wine.
General Purpose Glass Formulation
General Purpose (GP) glass provides the best response over the entire pH range and can be used for a wide range of applications.
Built-In Temperature Sensor
HI10482 features a built-in temperature sensor for temperature measurement and compensation.
Movable CPS Sleeve Junction
Clogging Prevention System (CPS) technology was designed for pH measurements in wine juice and must samples that have a high solids content. CPS technology utilizes a ground glass junction that allows proper flow of the liquid with a PTFE sleeve that repels solids. When the HALO become dirty, the PTFE sleeve can be moved to clean the ground glass surface rejuvenating the junction resulting in a 20x longer electrode lifespan.
Real-Time Data
Display of pH and temperature updated every second. Readings are automatically saved to a history file every hour, limited only by the available memory on the device.
Fluid, Dynamic Graphing
Measurements can be displayed alone on the display, with tabulated data, or as a graph. The graph can be panned and zoomed with pinch-to-zoom technology for enhanced viewing.
GLP (Good Laboratory Practice)
Displays date and time of current calibration, offset, and average slope, along with calibrated buffers, mV values, temperature and slopes between each buffer.
Calibration Reminder & Measurement Alarms
The Hanna Lab App alerts you when HALO needs calibration or if a measurement threshold is exceeded.
Calibration Designed For Wine
When calibrating your wine HALO, you will be prompted to use the pH 3.00 buffer instead of the pH 4.01 buffer. Why? Accurate pH readings start with proper pH calibration, and bracketing your measurement range helps ensure your numbers are precise every time. Wine tends to have a low pH, and calibrating to pH 3.00 helps you make sure you cover your entire measurement range.
Log & Share Data
Saved log files may be annotated with measurement-specific information. Data is easily shared via email in CSV format.
Help & Tutorials
Demo mode helps you explore features of the Hanna Lab App. General app information, HALO information, pH tutorial, maintenance tutorial, and contact information are available in help.
,
Compatibility:
HALO is compatible with the following devices:
Android
Compatible with most devices equipped with Bluetooth Smart Technology (Bluetooth 4.0) and running Android 4.3 or later.
iOS
iPad (3rd generation or newer)
iPhone (4S or newer)
iPod Touch (5th generation or newer)
HI2202 edgeblu Meter
Information about which products have Bluetooth Smart Technology (4.0), also known as low energy (LE), can be found here.
| Specification Name | Detail |
|---|---|
| SKU | HI10482 |
| Reference | double, Ag/AgCl |
| Junction / Flow Rate | moveable open junction |
| Electrolyte | 3.5M KCl |
| Range | pH: 0 to 12 |
| Recommended Operating Temperature | 0 to 80°C(32 to 176°F) – GP |
| Tip / Shape | dome (dia: 8 mm) |
| Diameter | 12 mm |
| Body Length | 120 mm / 195 mm |
| Temperature Sensor | yes |
| Body Material | glass |
| Recommended Use | wine, must, juice |
| Connection | Bluetooth Smart (Bluetooth 4.0), 10 m (33′) range |
| Ordering Information | HI10482 (HALO) is supplied with storage solution, cleaning solution, pH 7.01 buffer solution, pH 3.00 buffer solution, fill solution, battery, quality certificate, and instruction sheet. |
