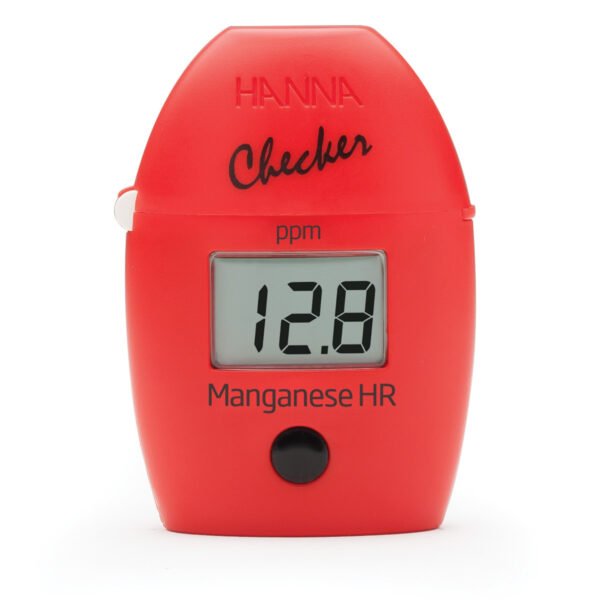

The HI709 Checker®HC (Handheld Colorimeter) is a simple, accurate, and cost effective way to measure manganese. Designed as a more accurate alternative to chemical test kits, the HI709 provides quick, accurate results in a few easy steps.
Features at-a-glance:
- Easier to use and more accurate than chemical test kits
- Dedicated to a single parameter
- Small size, big convenience
- Ideal for: Water quality, Environmental, Plating, Education
| Specification Name | Detail |
|---|---|
| SKU | HI709 |
| Range | 0.0 to 20.0 ppm |
| Resolution | 0.1 ppm |
| Accuracy @ 25°C/77°F | ± 0.2 ppm ± 5% of reading |
| Light Source | LED @ 525 nm |
| Light Detector | silicon photocell |
| Method | adaptation of the Standard Methods for the Examination of Water and Wastewater, 18th edition, Periodate method. The reaction between manganese and reagents causes a pink tint in the sample |
| Battery Type | (1) 1.5V AAA |
| Auto-off | after ten minutes of non-use |
| Environment | 0 to 50°C (32 to 122°F); RH max 95% non-condensing |
| Dimensions | 86.0 x 61.0 x 37.5 mm (3.4 x 2.4 x 1.5”) |
| Weight | 64 g (2.3 oz) |
| Ordering Information | HI709 Checker®HC is supplied with sample cuvettes with caps (2), manganese HR reagent starter kit (reagents for 6 tests), battery, instructions and quick start guide. |
| Reagent Set | HI709-25 (25 tests) |
| Calibration Set | HI709-11 |
| Warranty | 1 year |
