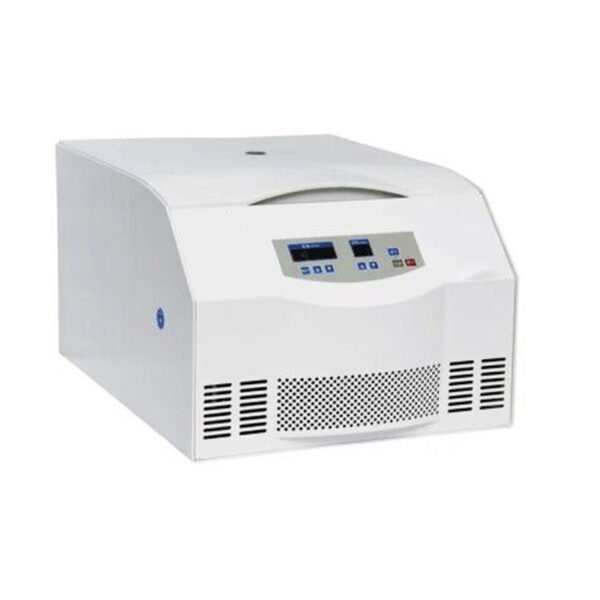

High Speed and Low Speed Universal Centrifuge BKC-TH18Y BKC-TH18RY
BKC-TH18Y Technical Parameters:
Max Speed | 21000r/min | Max Volume | 4×800ml | ||
Timer | 0~99min | Dimension (LxWx Hmm) | 685×500×385mm | ||
Speed Accuracy | ±20r/min | Max RCF | 30910×g | ||
Noise | ≤65dBA | Net Weight | 70KG | ||
Power supply | AC 220V/110V,50HZ 10A |
BKC-TH18RY Technical Parameters:
Max Speed | 21000r/min | Max Volume | 4×800ml | ||
Timel | 1~99h59min | Dimension (LxWx Hmm) | 720×710×410mm | ||
Speed Accuracy | ±20r/min | Max RCF | 30910×g | ||
Noise | ≤58dBA | Net Weight | 130KG | ||
Power supply | AC 220V/110V,50HZ 15A | Temperature Range | -20℃~40℃ | ||
Temperature Accuracy | ±1℃ |
Matched Rotor for BKC-TH18Y/BKC-TH18RY
Order No | Rotor Type | Rotor Max Speed(r/min) | Volume(ml) | Max.RCF(×g) |
G18-1 | Swing Rotor | 4000 | 4×800ml | 3450 |
G18-2 | Microplate rotor | 4000 | 4×4×96 well | 2940 |
G18-3 | Microplate roto | 4000 | 2×4×96 well | 3210 |
G18-4 | Microplate rotor | 4000 | 2×3×48 well | 2300 |
G18-5 | Swing rotor | 4000 | 4×30×5ml vacuum tube | 2840 |
G18-6 | 4000 | 4×30×7ml vacuum tube | 3140 | |
G18-7 | 4000 | 4×18×10mlvacuum tube | 3140 | |
G18-8 | Swing Rotor | 4000 | Fat bottle | 3830 |
G18-9 | Fixed Rotor | 16000 | 4×8PCR | 15760 |
G18-10 | Fixed Rotor | 15000 | 6×8PCR | 21420 |
G18-11 | Fixed Rotor | 16000 | 8×8PCR | 17480 |
G18-12 | Fixed Rotor | 15000 | 12×8PCR | 22930 |
G18-13 | Fixed Rotor | 15000 | 40×0.5ml | 22920 |
G18-14 | Fixed Rotor | 21000 | 12×1.5ml | 30910 |
G18-15 | Fixed Rotor | 16000 | 24×1.5ml | 23440 |
G18-16 | Fixed Rotor | 14000 | 30×1.5ml | 20800 |
G18-17 | Fixed Rotor | 13000 | 48×1.5ml | 17930 |
G18-18 | Fixed Rotor | 16000 | 16×5ml | 22020 |
G18-19 | Fixed Rotor | 16000 | 6×10ml | 21500 |
G18-20 | Fixed Rotor | 15000 | 12×10ml | 22680 |
G18-21 | Fixed Rotor | 13000 | 16×10ml | 19490 |
G18-22 | Fixed Rotor | 13000 | 8×15ml | 17790 |
G18-23 | Fixed Rotor | 11000 | 12×15ml | 14330 |
G18-24 | Fixed Rotor | 5000 | 24×15ml | 3500 |
G18-25 | Fixed Rotor | 5000 | 30×15ml | 3830 |
G18-26 | Eixed Rotor | 14000 | 6×30ml | 19060 |
G18-27 | Cived Roto | 13000 | 6×50ml(conical) | 18840 |
G18-28 | Fixed Rotor | 13000 | 6×50ml(round) | 18730 |
G18-29 | Fixed Rotor | 5000 | 12×50m | 3860 |
G18-30 | Fixed Rotor | 4000 | 24×50ml | 2970 |
G18-31 | Fixed Rotor | 13000 | 4×85ml | 18940 |
G18-32 | Fixed Rotor | 12000 | 4×100m | 14850 |
G18-33 | Fixed Rotor | 10000 | 6×100ml | 11380 |
G18-34 | Fixed Rotor | 4000 | 12×100ml | 2970 |
G18-35 | Fixed Rotor | 12000 | 24 capillaries | 15800 |
G18-36 | Swing Rotor | 15000 | 4×5ml | 19920 |
G18-37 | Vertical rotor | 16000 | 16×5ml |
