Feature
Technical Parameters
|
Throughput |
1-96 |
|
Speed |
Daily inspection volume ≥ 6000 tubes |
|
Adding Sample |
2-1000ul |
|
Temperature Accuracy |
±0.3℃ |
|
Temperature Uniformity |
±0.3℃ |
|
Module Temperature Range |
4-100℃ |
|
Sample Volume |
10-50ul |
|
Fluorescence Channel |
4 channels, FM , VIC , ROX , Cy5 |
|
Machine Function |
Putting the original tube on the machine + sample splitting + nucleic acid extraction + R C R system construction + amplification detection |
|
Sample Loading Method |
Flow loading, single sample volume 96 |
|
Consumables Added |
Flowing consumables, running without stopping |
|
Liquid Detection Scheme |
Pneumatic liquid level detection scheme, intelligent detection of blocked needle |
|
Sample Needle Specifications |
50μl, 200μl, 1000μl optional, disposable black conductive needle with filter |
|
Sampling Tube Adaptation |
Suitable for conventional 5mL, 10mL, 20/30mL virus sampling tubes |
|
Protective Function |
Power-on self-test, high temperature alarm, over-temperature protection, needle removal and needle removal protection |
|
Disinfection &Decontamination Methods |
UV lamp (cup compartment + extraction compartment + extraction area + sealing compartment + testing compartment), multi-directional disinfection |
|

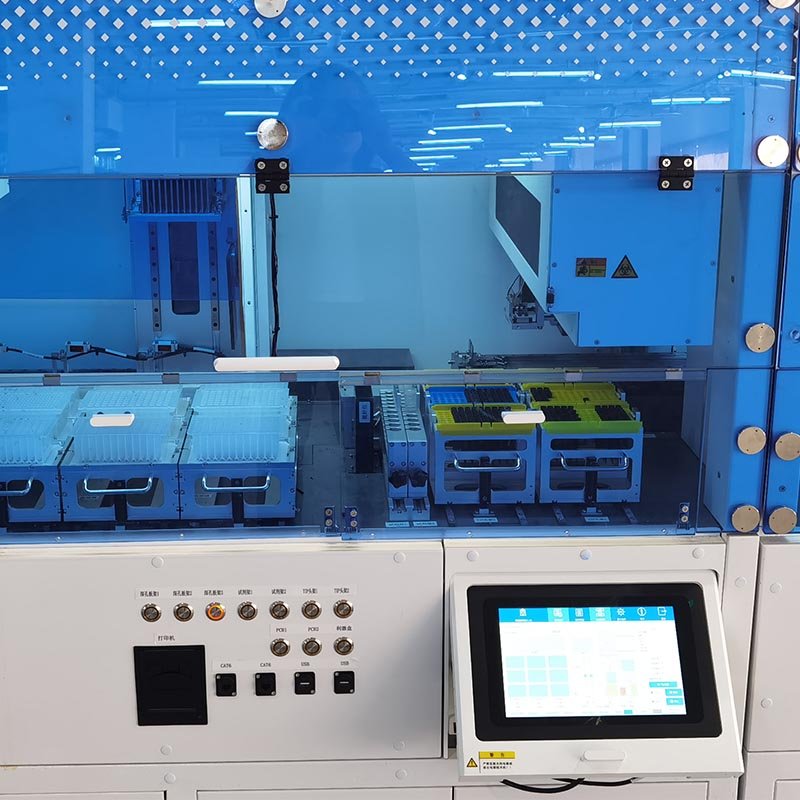

Touch Screen |
Four 10.1-inch capacitive touch screens |
|
External Size |
6300*750*1900mm |
