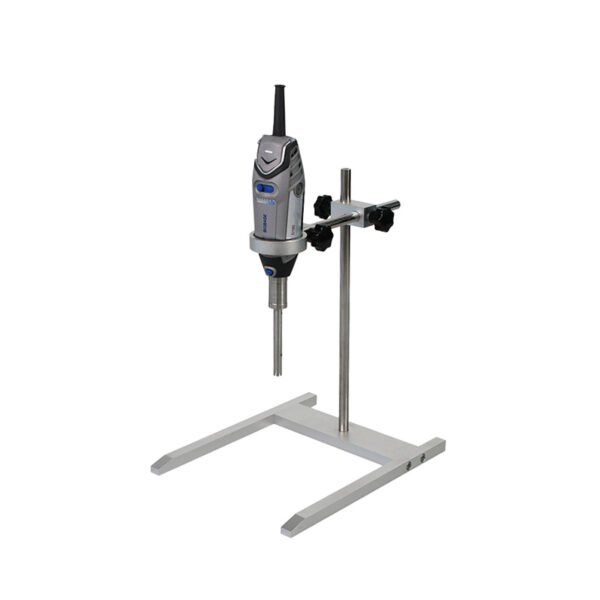

Features:
* Lightweight design, handheld and can be operated with one hand.
* The application of different dispersing heads is suitable for liquid samples of 0.1-250ml.
* High-quality 316L stainless steel dispersing head, corrosion-resistant, high-temperature sterilization.
* The dispersing head is easy to disassemble and clean; high-speed and high-efficiency motor.
* The speed is adjustable in 10 gears, and the speed range: 8000-32000rpm.
Optional Accessories:
|
Cat. No. |

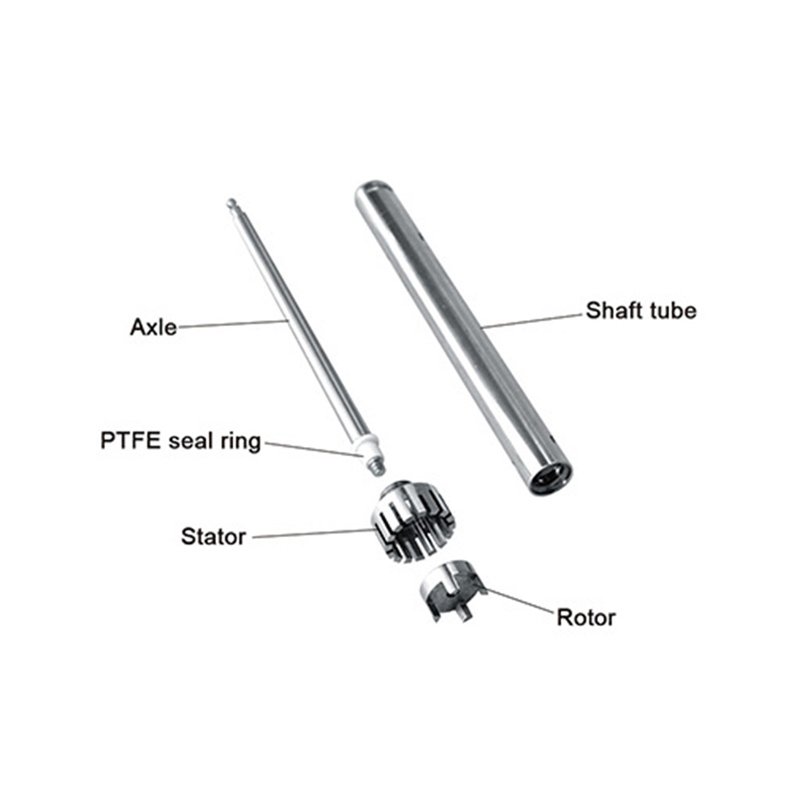

Combination Stator + Rotor |
Model |
Working Volume (ml) |
Diameter of Stator |
Diameter of Rotor |
Min. / Max. Immersion Depth |
Application |
|
18900113 |

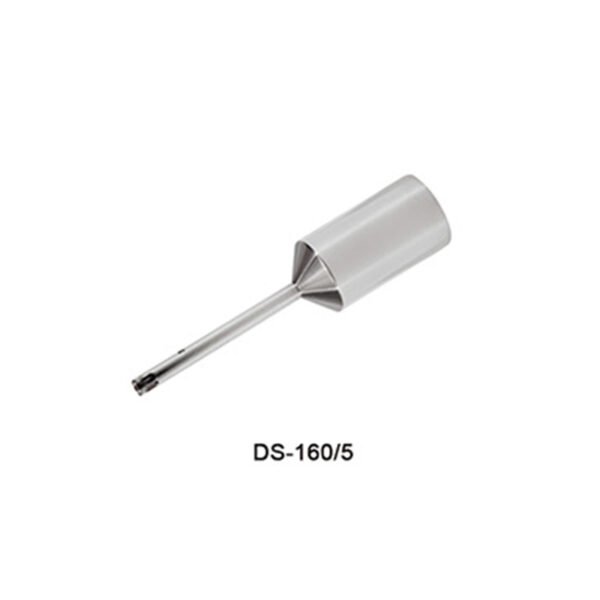

DS-160/5 |
D-160 |
0.1 〜50 |
5mm |
3mm |
7/50mm |
Small amounts of solid-liquid mixtures |
|
18900114 |

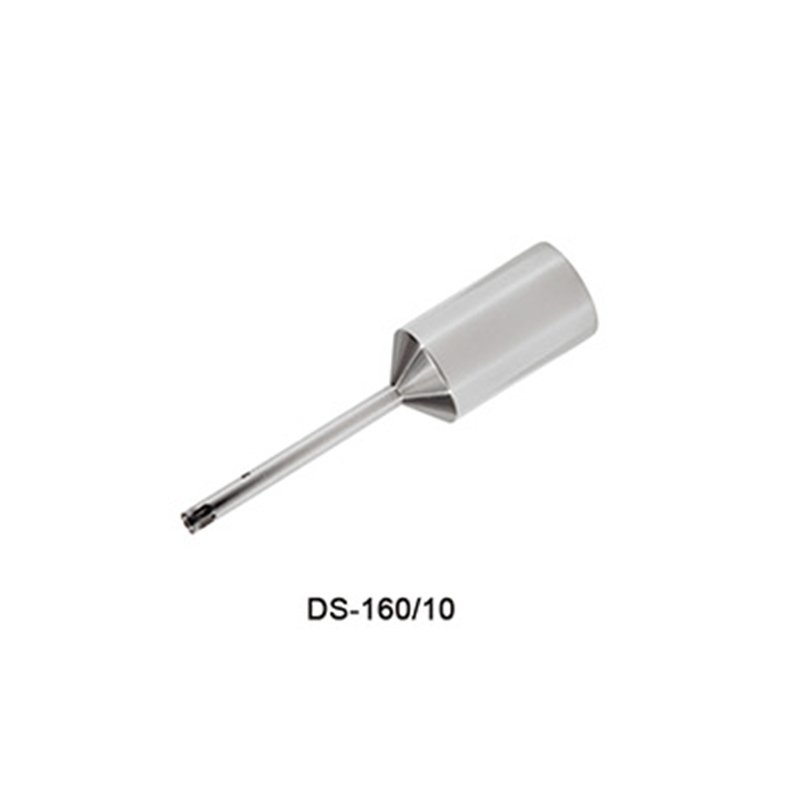

DS-160/10 |
1-250 |
10mm |
6mm |
10/120mm |
Technical Parameters:
|
Model |
D-160 |
|
Item No. |
8034111000 |
|
Recommended Configuration |
Package 1: D160 drive, H370 Stand, DS-160/5 shaft, volumes from 0.1-50ml Package 2: D160 drive, H370 Stand, DS-160/10 shaft, volumes from 1-250ml |
|
Speed Range |
8000-32000rpm |
|
Max. Circum. Speed |
6.3-14m/s |
|
Speed Control |
10 stage |
|
Working Volume (H2O) |
0.1-50ml (Dispersing shaft DS-160/5) 1-250ml (Dispersing shaft DS-160/10) |
|
Max. Viscosity |
5000mPas |
|
Material of Dispersing Shaft |
SS316& PTFE seal ring |
|
Noise |
≤72dB |
|
Ambient Temp. |
0-40°C |
|
Relative Humidity |
85%RH |
|
Protection Type |
IP20 |
|
Consumption |
160W |
|
Motor Type |
AC carbon brush motor |
|
Power Supply |
AC110/220V±10%, 50/60Hz(Customizable) |
|
Standard Accessory |
Base stand + DS-160/5 dispersing shaft Or Base stand + DS-160/10 dispersing shaft |
|
External Size(W*D*H) |
45*55*190 mm |
|
Package Size (W*D*H) |
470*240*250mm |
|
Gross Weight |
4kg |
